Product Details for EMS FireCell FCX-178-001 Wireless Remote Indicator Module

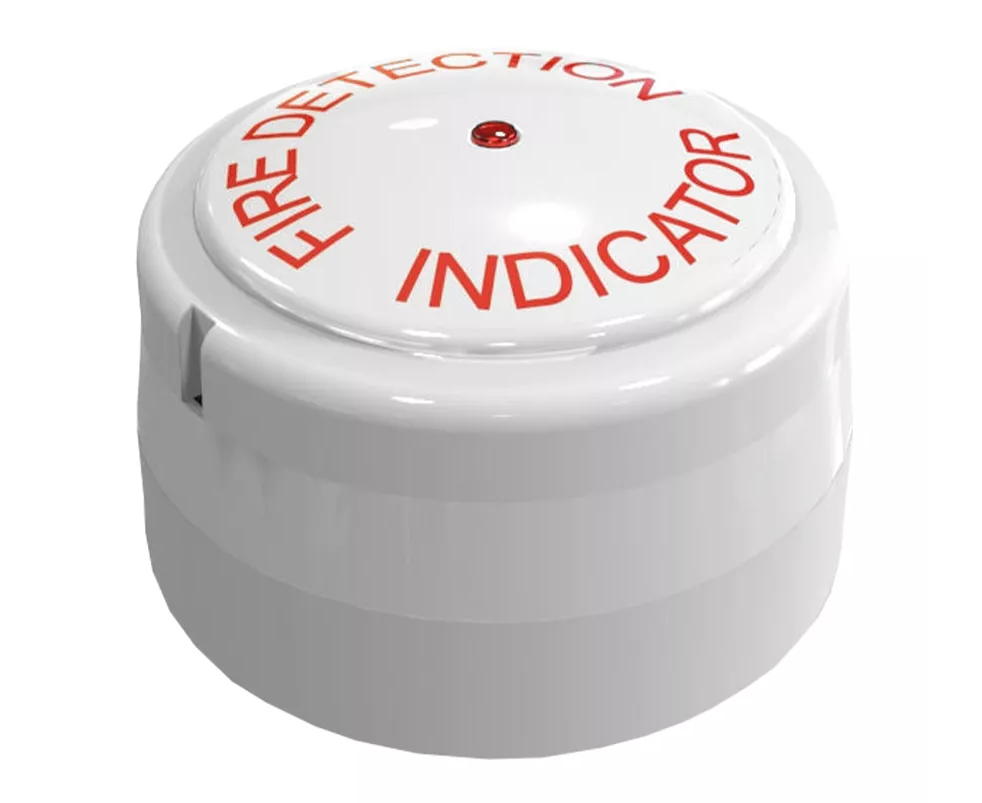

The FireCell Wireless Remote Indicator Module (RIM) is quick and easy to install and can be used to remotely indicate a re event at a location where access is not easily available. This RIM can also be associated with a single detector or a number of detectors.
Combined with detailed Fire Control Panel information, the RIM aids swift re location, saving valuable time in an emergency.
This device is third party EN certied and is compatible with the EMS FireCell system and EMS Fusion Radio Loop Module (RLM).
Key Features of the FCX-178-001 |
|---|
| > Wireless Remote Indicator Module > Fire indication LED > Dual band 868MHz operation > Suitable for use with more than one detector > Easy to install > Combine with Fire Control Panel info to quickly locate fire > Compatible with EMS FireCell System & EMS Fusion Radio Loop Module (RLM) > EN54-25 certified (3rd party) > Satises the requirements of Irish standard IS3218 |
Product Specification for EMS FireCell FCX-178-001 Wireless Remote Indicator Module
| Dimensions: | Ø:113mm x D:81mm |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial) |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP23 |
| Location: | Type A: for indoor use |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Weight: | 0.40 kg |
