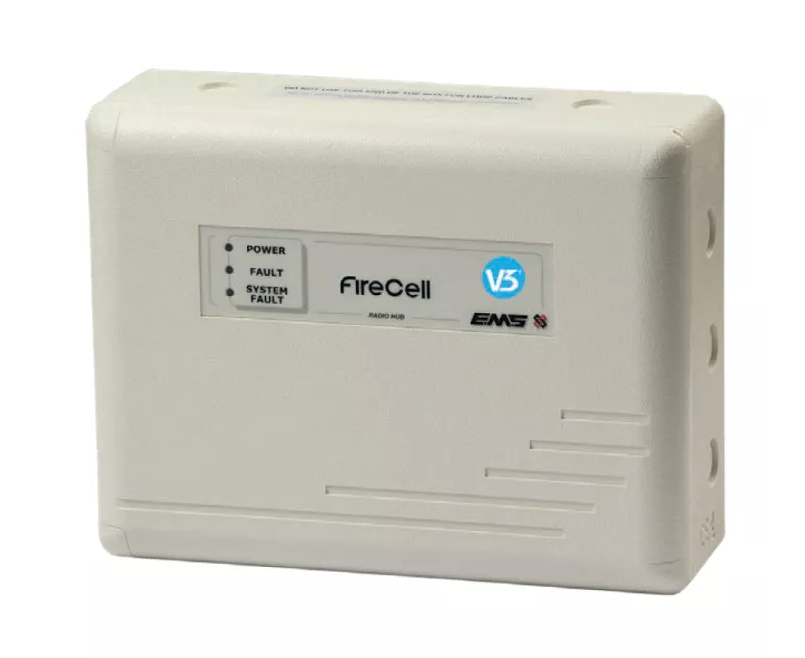

Product Details for EMS FireCell FCX-500-444-V3 Wireless Hub - 4 Loop with Remote Aerial Facility - V3
The EMS FireCell FCX-500-444-V3 Radio Hub connects to the XP95 loop of the FireCell Fire Control Panel and works with FireCell Radio Cluster Communicators (RCCs) to create a wireless infrastructure that can support up to 504 FireCell devices. This EN certified third-party approved device combines diversity aerial methodology, Smart Cluster Technology, and 32 channel selection for fast and reliable wireless communication.
Key Features of the FCX-500-444-V3 |
|---|
| > XP95 loop powered > Up to 31 Radio Cluster Communicators > With remote aerial facility > Dual band 868MHz operation > Powered from Control Panel's loop connection > Accommodates up to 504 wireless FireCell devices (across 4 loops) > 32 channel selection > EN54-18 & EN54-25 third party certified |
Product Specification for EMS FireCell FCX-500-444-V3 Wireless Hub - 4 Loop with Remote Aerial Facility - V3
| Dimensions: | W:270mm x H:205mm x D:85mm |
| Operating frequency: | 868 MHz |
| Output transmitter power: | 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP54, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Operating voltage: | 17 - 28V dc |
| Operating Current: (typical) | 24mA @ 24V dc (1st loop) +7mA per each connected loop |
| Location: | Type A : for indoor use |
| Weight: | 0.95 kg |
| Certification (3rd party): | EN54-18 & EN54-25 |
