EMS FireCell Syncro AS 1 Loop 16 Zone Addressable Fire Panel (FC-A80161M2)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Product Details for EMS FireCell Syncro AS 1 Loop 16 Zone Addressable Fire Panel (FC-A80161M2)

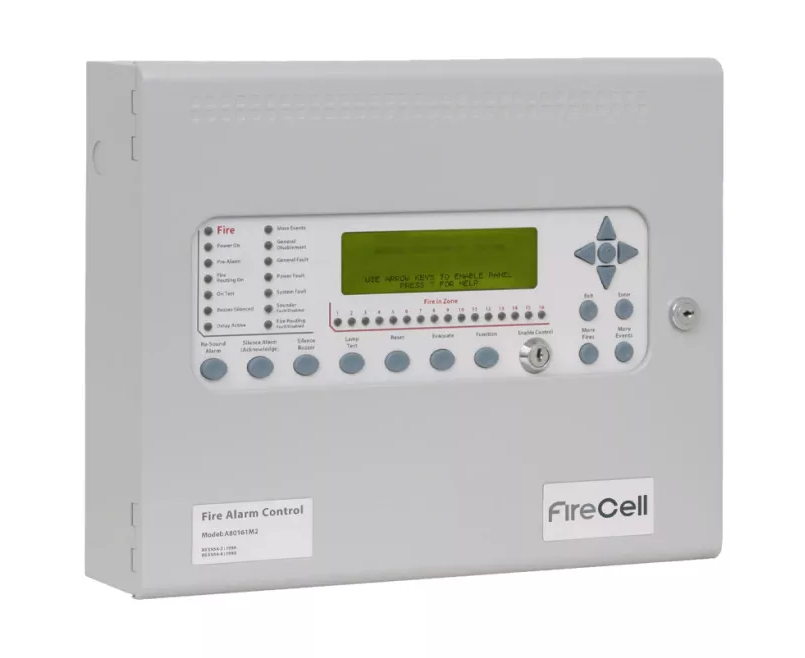

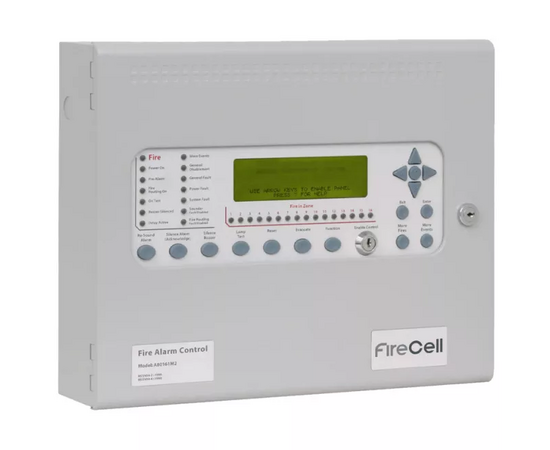

The EMS FireCell FC-A80161M2 Syncro AS is a compact 1 loop addressable fire panel designed for small to medium sized installations.
The FireCell Syncro AS is a versatile range of open protocol Fire Control Panels. With proven and mature software at its heart, the Syncro AS range benefits from many years of development and refinement to provide a fire alarm control panel range of outstanding robustness, versatility and flexibility.
Syncro AS Fire Control Panels are capable of hosting up to 126 wireless FireCell devices per loop. With a potential mix of 252 wireless FireCell and hardwired field devices per panel, FireCell is the perfect wireless and hybrid fire system solution for all small to medium installations.
Further expansion can be achieved using wireless or hardwired networking to form larger systems, providing a future-proof solution for any installation.
The long-established Loop Explorer configuration utility can be used to configure the Syncro AS range. Loop Explorer 2 offers a simpler and more intuitive programming configuration tool capable of realising the largest and most complex fire alarm systems with ease.
The elegant and simple construction of the Syncro AS panel range with full mechanical protection of all internal electronics ensures ease of installation and protection of vital parts during installation. Housed in installer-friendly enclosures, Syncro AS fire panels combine compact and practical styling with powerful programming and connectivity to accommodate larger systems.
Key Features of the FC-A80161M2 |
|---|
| > Zonal LED indicators > Stores 500 last events in event log > Powerful and versatile cause and effect programming > Programmable inputs > Programmable relays > Programmable sounder circuits > Up to 126 wireless FireCell devices per loop > Integrated power supply > Third party EN certified |
Product Specification for EMS FireCell Syncro AS 1 Loop 16 Zone Addressable Fire Panel (FC-A80161M2)
| Approval | EN54-2 & EN54-4 |
| Battery | 2x 12V lead acid batteries |
| Dimensions | 500mm(W) 355mm(H) 117mm(D) |
| IP Rating | IP30, indoor use only |
| Mains Supply | Mains supply fuse: 1.6A (Syncro AS) / 3A (Syncro) |
| Network | RS485 networked; up to 64 panels via fully fault tolerant optional network card Radio networked up to 8 panels via network card & Radio Network Communicators (RNCs) All Syncro and Syncro AS Control Panels can be networked, except the Syncro AS Lite Panel |
| Operating Temperature | Steel enclosure, 1.2mm BMT |
| Power | 230Vac mains supply |
| Protocol | XP95 Protocol |
| Weight | 6kg (standard panel) |
