EMS FireCell Wireless Door Control - White (FC-60-2010)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Product Details for EMS FireCell Wireless Door Control - White (FC-60-2010)

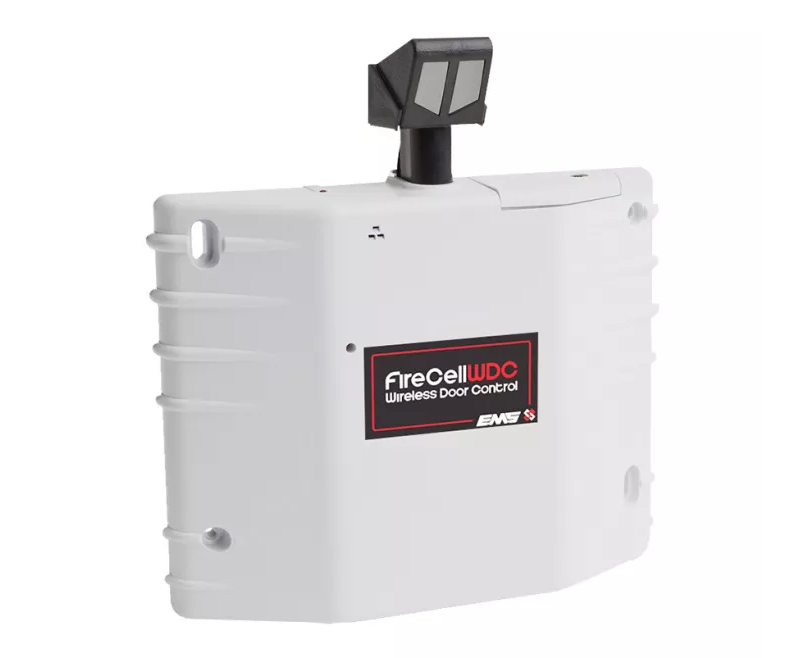

The EMS FireCellFC-60-2010 is a white wireless door retainer that is quick and easy to install and offers full FireCell system integration. FireCell WDC holds heavy fire doors open, improving building ventilation and automatically releases them in the event of a fire.
FireCell WDC includes robust FireCell wireless operation, industry-proven mechanics and the ability to individually test each device. Benefits don’t stop there as it can also be included within phased evacuation plans via system cause and effects.
FireCell WDC is third-party EN certified and is compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM) and EMS Wireless Zone Monitor (WZM).
Key Features of the FC-60-2010 |
|---|
| > White wireless door retainer > Compatible with EMS FireCell system, RLM & WZM > Holds heavy fire doors open > Automatically closes in event of fire > Quick and easy to install > Combines proven mechanics with renowned wireless FireCell system operation > Provides full health monitoring via system integration > Can be included in phased evacuation plans, via system cause and effects > 160kg max door weight > EN54-25, EN1155 & BS7273-4 (cat B) |
Product Specification for EMS FireCell Wireless Door Control - White (FC-60-2010)
| Dimensions: | W:195mm x H:205mm x D:45mm |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 2 x C alkaline (Panasonic LR14AD Powerline / Varta 4014 Industrial) |
| Operating frequency: | 868 MHz |
| Supply voltage: | 2.22 - 3.3 V dc |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| Signalling protocol: | X2 |
| Current consumption: | 60μA |
| Max. hold open power size: | 7 |
| Max. door leaf width: | 1600mm |
| Max. test door mass: | 160kg |
| Max. overload test drop weight: | 36kg |
| Max. test door friction: | 0.8 Nm |
| Min. angle between door open: | 66o |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Location: | Type A: for indoor use |
| Weight: | 0.5 kg |
| Note: FireCell WDC is not for use on metal doors | |
