Product Details for EMS SmartCell 24V Intelligent Wireless Zone Monitor (SC-13-2100-0001-99)

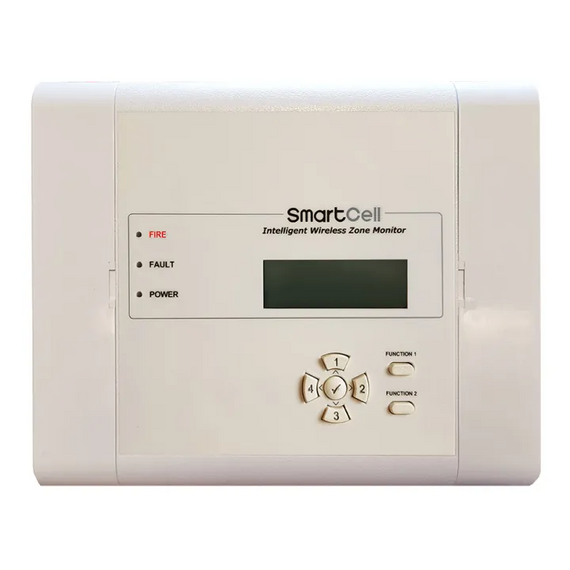

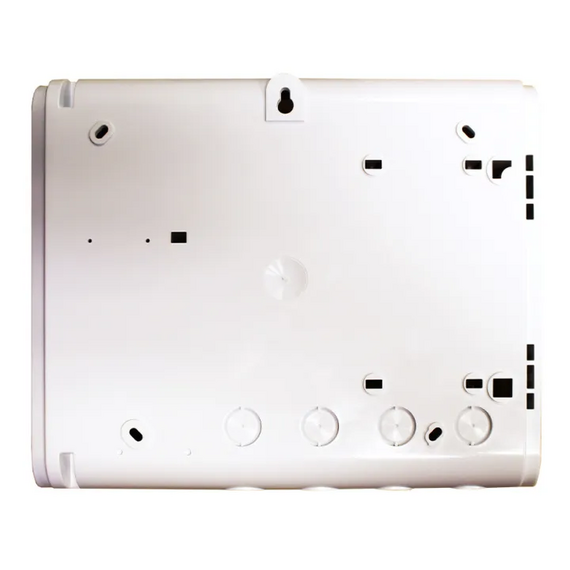

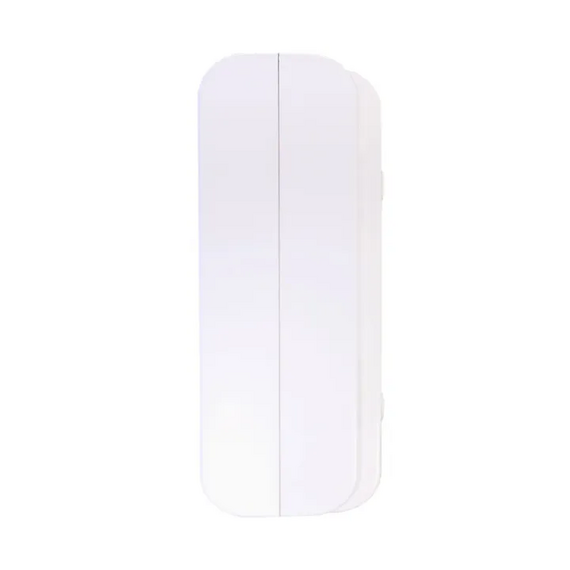

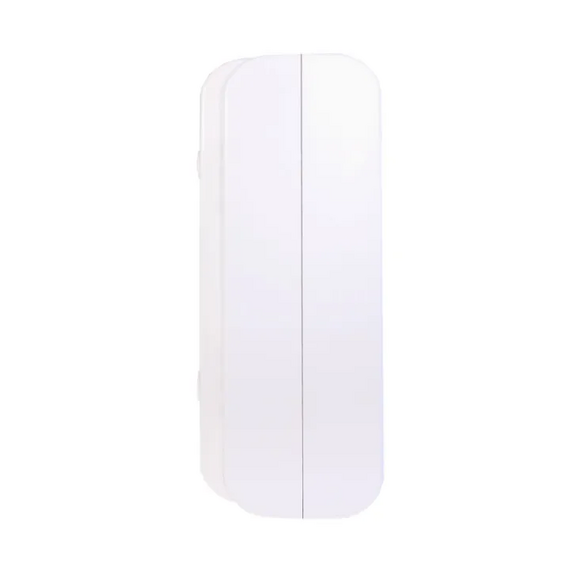

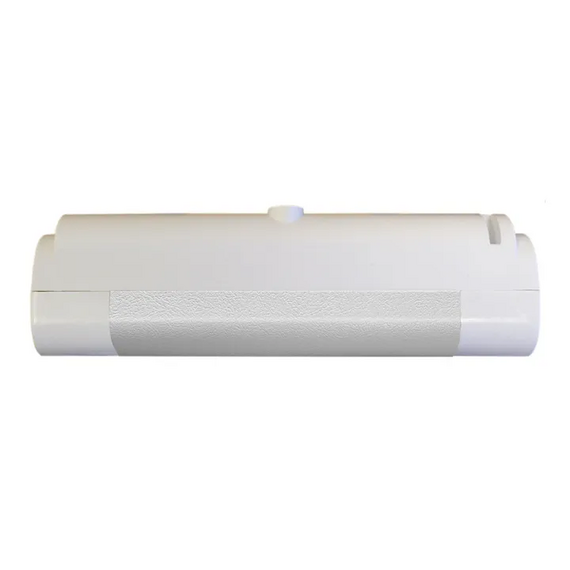

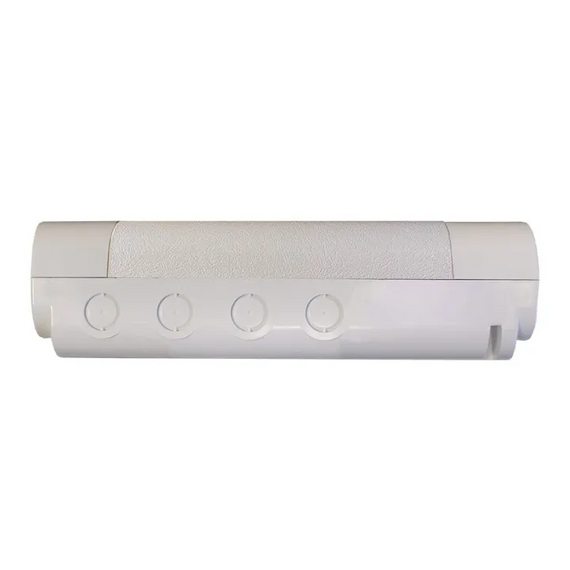

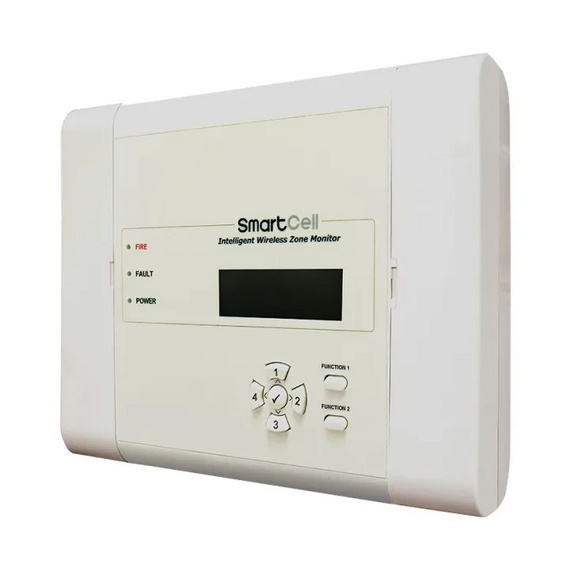

The EMS SmartCell 24V Wireless Zone Monitor (WZM) provides universal connections to new and existing fire alarm control panels, and facilitates up to 16 third-party EU-certified SmartCell wireless fire devices.
With maximum flexibility in mind, the SmartCell WZM connects to both conventional and addressable fire alarm systems.
Wireless communication between the WZM and the wireless devices is fast, robust and bidirectional, utilising the European harmonised 868 MHz frequency band.
Quick and easy to install
The SmartCell WZM and its wireless devices make it possible to quickly achieve compliance with the latest fire regulations in a fraction of the time needed with cabled alternatives through reduced installation time and less disruption on site.
Highly adaptable
The SmartCell WZM is suitable for virtually any building and in many cases exceeds the performance and flexibility of a wired devices.
The SmartCell WZM offers onboard connections for both addressable and conventional fire alarm systems and accommodates up to 16 SmartCell wireless fire devices.
Cost effective
Eliminating expensive fire rated cable and the associated labour costs, extensive savings can be made throughout the installation and maintenance process as well as an overall reduction on the “cost of ownership”.
Key Features of the SC-13-2100-0001-99 |
|---|
| > Wireless device communication > Supports up to 16 SmartCell devices > Quick and easy to install > Compact enclosure > 80 character display > 24 VDC version |
More information about EMS SmartCell 24V Intelligent Wireless Zone Monitor (SC-13-2100-0001-99)
More Information
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-13-2100-0001-99 |
| Primary Power Source | 24V DC |
| System Type | Wireless |
| Protocol Compatibility | SmartCell |
| Colour | White |
| Warranty | 1 Year |
