EMS SmartCell Intelligent Wireless Door Retainer - Black (SC-44-0300-0001-99)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

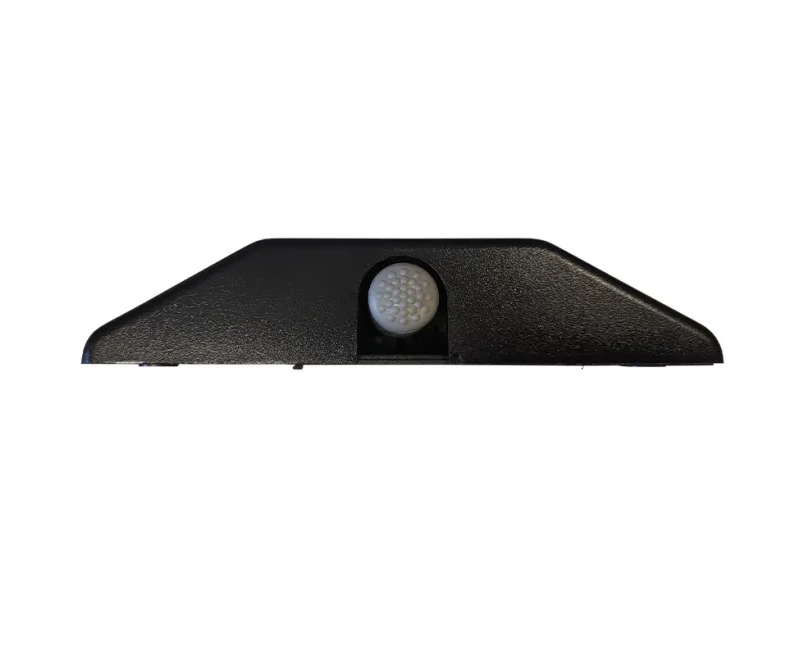

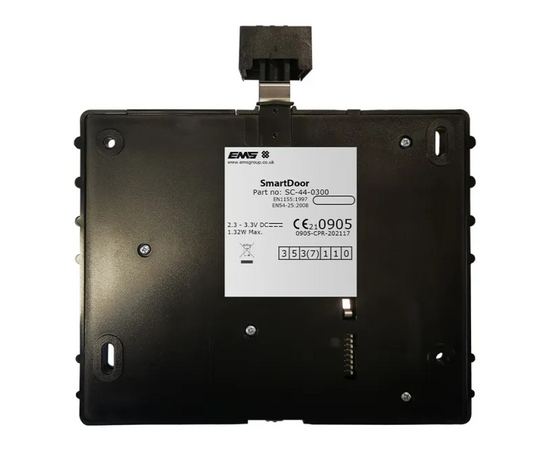

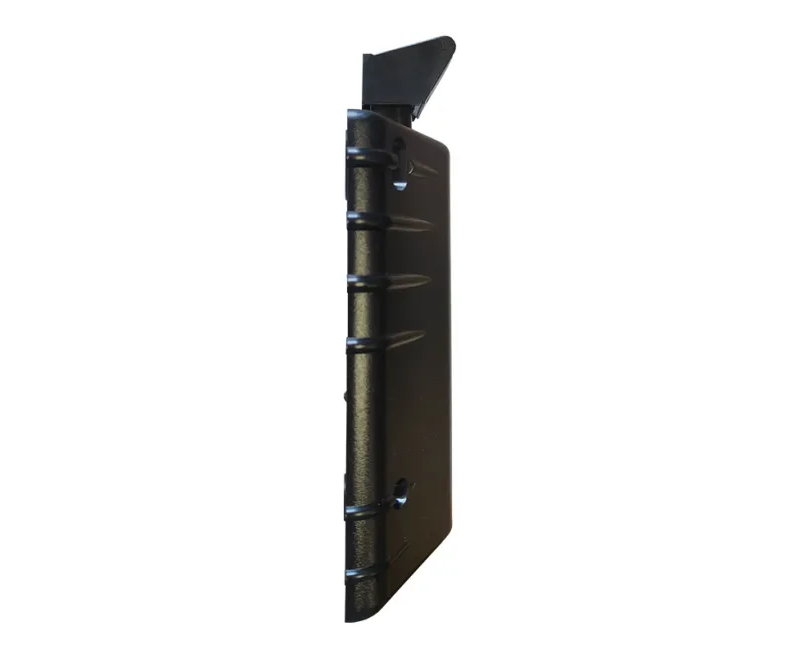

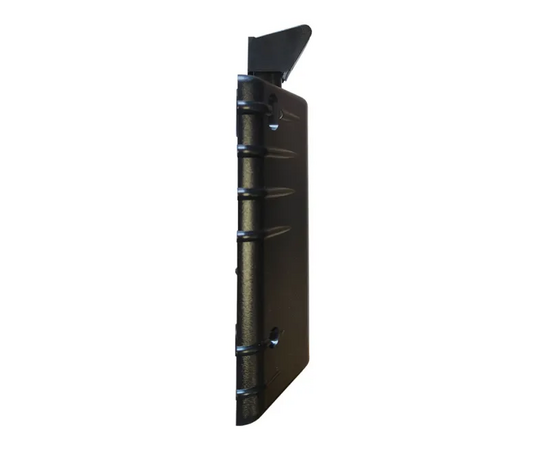

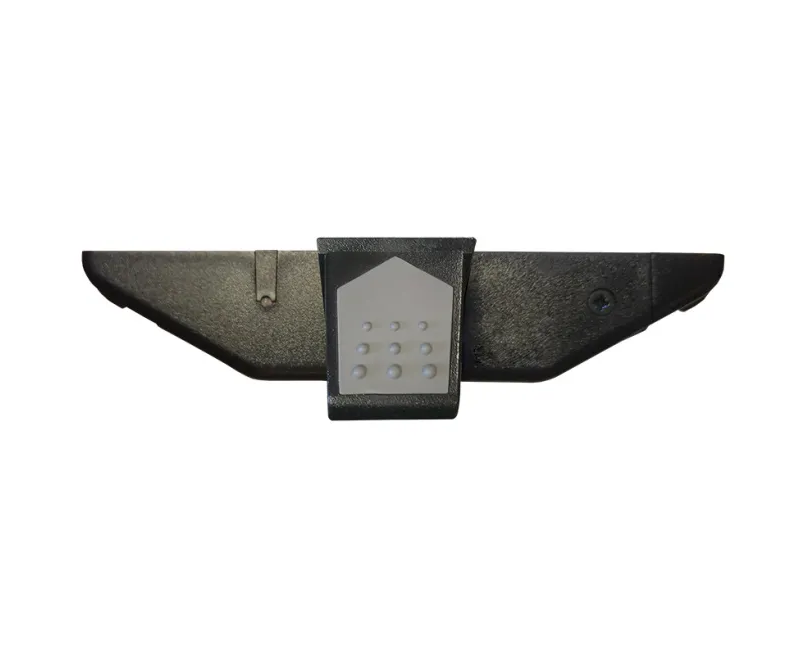

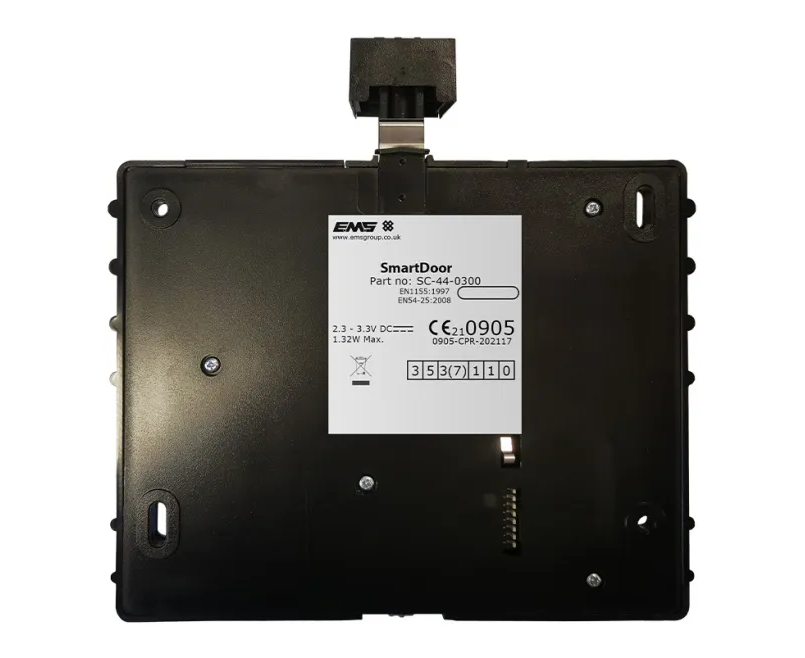

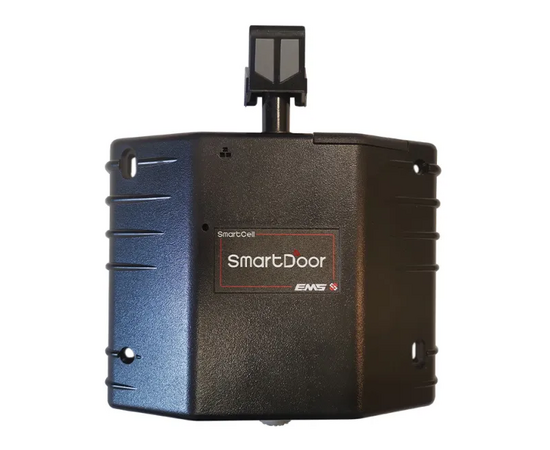

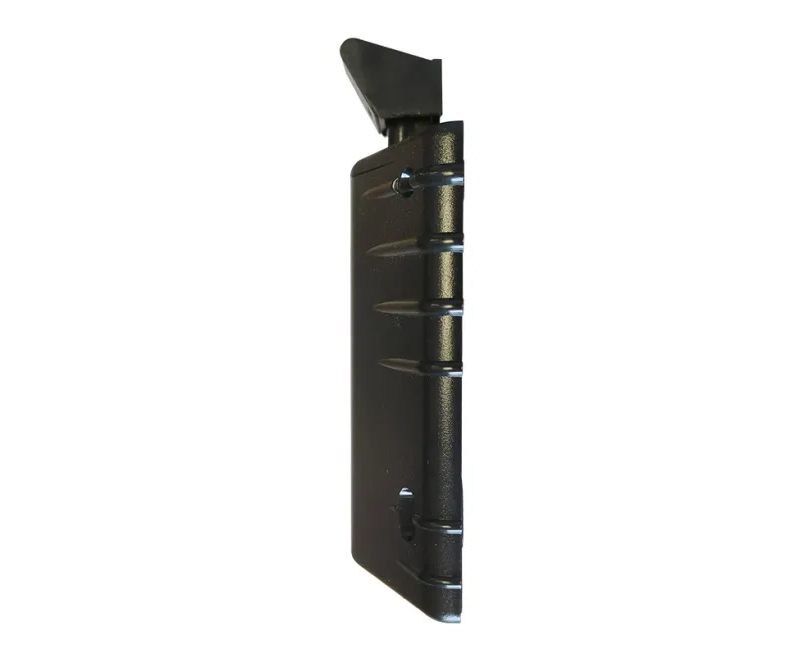

Product Details for EMS SmartCell Intelligent Wireless Door Retainer - Black (SC-44-0300-0001-99)

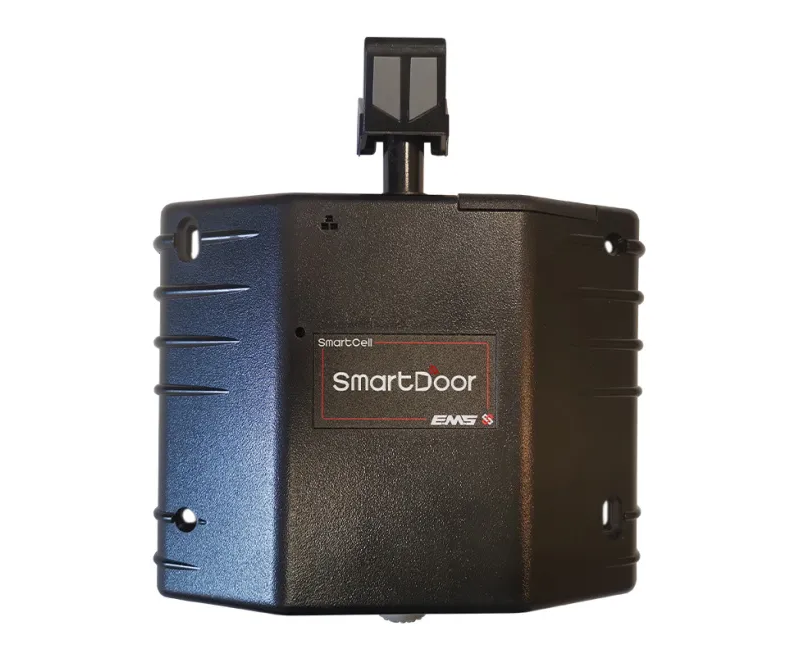

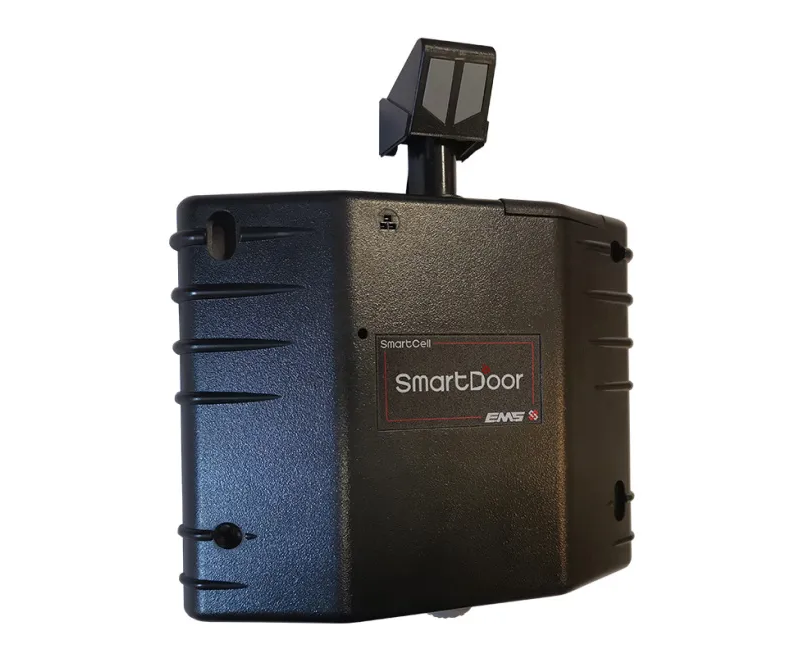

The EMS SmartDoor (black) is an intelligent wireless door controller, that combines both industry proven mechanics and the renowned fully EN-certified robustness of SmartCell wireless technology.
Quick and easy to install, SmartDoor offers individual addressing at the SmartCell Control Panel.
Operating on the 868 MHz European harmonised frequency band and with full SmartCell system integration, SmartDoor is wholly controlled by the fire system. Fully addressable, SmartDoor will only activate when the control panel is in a fire condition.
Each SmartDoor device is connected by wireless RF link, to the SmartCell control panel in exactly the same way as every other SmartCell device on the system – full wireless integration for reliability and to meet the specific site application.
This device is third party certified and compatible with the full SmartCell product range.
Compatibility
The EMS SmartDoor is compatible with the SmartCell platform, using the SmartCell control panel for complete wireless systems, or the SmartCell Intelligent Wireless Zone Monitor (WZM) for wireless system add ons.
Key Features of the SC-44-0300-0001-99 |
|---|
| > Fully wireless > Quick and easy to install > Fully addressable > Controlled by the SmartCell control panel |
More information about EMS SmartCell Intelligent Wireless Door Retainer - Black (SC-44-0300-0001-99)
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-44-0300-0001-99 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | SmartCell |
| Colour | Black |
| Warranty | 1 Year |
