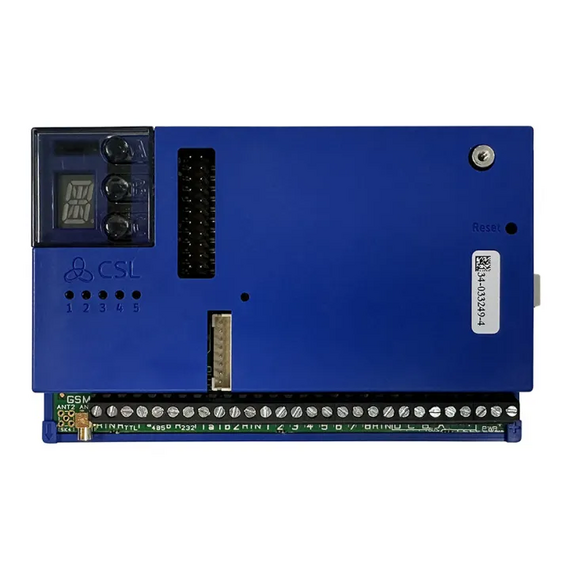

Product Details for EMS SmartCell Internal Communications Module V2 (SC-61-0002-0001-99)
The SmartCell SC-61-0002-0001-99 is an internal communication card which provides a remote connection option for the SmartCell fire system to send SMS/email updates out for different system events. The module is designed for internal connection within the SmartCell fire control panel. Transmission is provided by Ethernet and GSM/GPRS (cellular 2G / 3G / 4G).
Please Note: Requires SC-94-0001-99 SmartCell remote services annual contract for operation after 1 year.
Key Features of the SC-61-0002-0001-99 |
|---|
| > Provides remote connection option for SMS/email updates > For internal connection within the SmartCell control panel > Includes GSM antenna and SIM card supporting 2G / 3G / 4G connectivity > Requires SC-94 SmartCell remote services annual contract after 1 year |
Product Specification for EMS SmartCell Internal Communications Module V2 (SC-61-0002-0001-99)
| Operating voltage | 5 VDC (from control panel) |
| Physical dimensions | 100 x 90 x 5 mm (W x H x D) |
| Net weight | 0.1 kg |
| Environment | Indoor |
| Compliance | CE |
| Standards | EN54-21 |
| Transmission | Ethernet & GSM/GPRS (cellular 2G / 3G / 4G) |
| Antenna type | T-Bar c/w 3 m cable (supplied with card) |
