EMS SmartCell Wireless Survey & Demo Kit (SC-71-1201-0001-99)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Product Details for EMS SmartCell Wireless Survey & Demo Kit (SC-71-1201-0001-99)

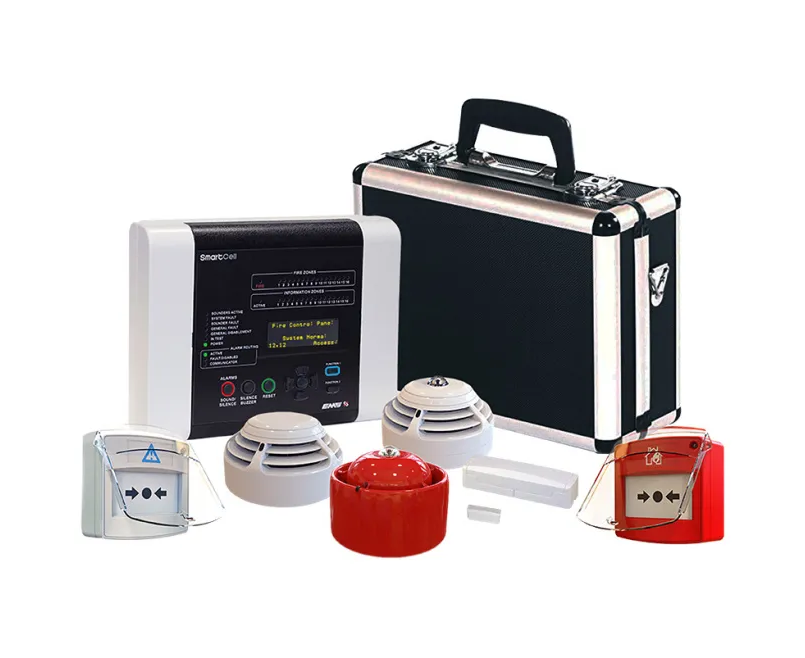

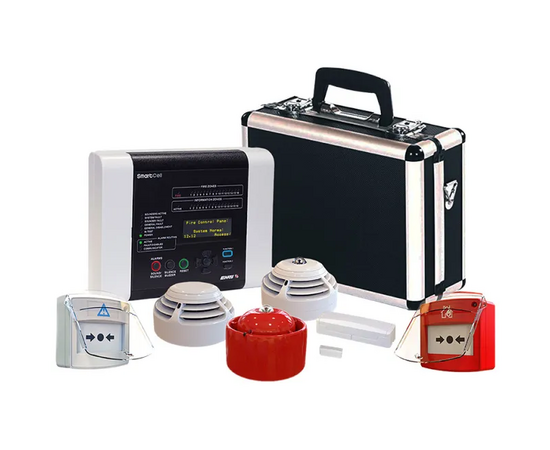

The EMS SmartCell Wireless Survey and System Demonstration Kit is the ultimate solution for professionals in the wireless technology industry.
This comprehensive kit comes housed in a rugged flight case, ensuring durability and portability for all your on-the-go needs. With six wireless SmartCell devices included, conducting radio signal strength surveys and showcasing system capabilities has never been easier. The kit also features a shoulder strap for convenient portability, along with a wireless control panel equipped with a mains charger, providing centralised control for seamless operation.
Revolutionise your approach to wireless fire detection technology with this all-in-one kit, delivering unparalleled performance, convenience, and reliability wherever your work takes you.
Key Features of the SC-71-1201-0001-99 |
|---|
| > SmartCell survey and system demonstration kit > Supplied in a durable flight case > Includes wireless control panel with mains charger > Includes six wireless SmartCell devices |
More information about EMS SmartCell Wireless Survey & Demo Kit (SC-71-1201-0001-99)
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-71-1201-0001-99 |
| System Type | Wireless |
| Number of Zones | 16 |
| Protocol Compatibility | SmartCell |
| Colour | Black |
| Warranty | 5 Years |
