Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

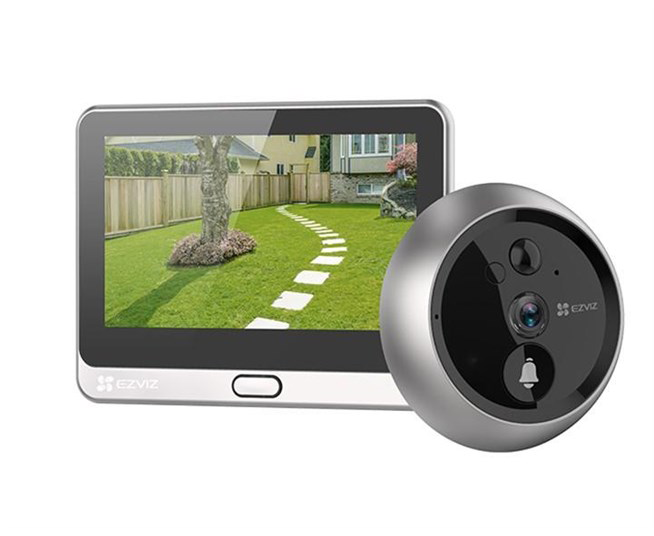

Know who’s knocking, from the indoor touchable monitor or via your EZVIZ App. With simple taps on the big or small screen, you can see every detail with clear video quality. You can also set the ringtone as you like and talk to your visitors with ease. Protection is made simple with activity-triggered alerts, soyou don’t miss a moment.
- 2MP resolution
- 166° ultra-wide angle view
- 4.3-inch color touch screen
- Smart human motion dection
- Live view & two-way video call
- IR night vision (up to 5m / 16ft)
- Built-in doorbell with multiple ringtones
- High-endurance zinc alloy body
- 4,600 mAh rechargeable battery
- Supports microSD card (up to 256GB)
A useful touch screen made for everyone
The DP2 helps reduce blind spots with a wide 166-degree visual coverage, and captures detailsin sharp 1080p. Get the whole picture in frontof your door in Full HD The large, colorful and touchable monitor is extremely easy use, even for the elderly and children. No more need to lean against the door to look through the tiny peephole. You will know who’s outside by pressing the home button. The screen can also beset to automatically turn on upon detection of visitors.
Get the whole picture in front of your door in Full HD
The DP2 helps reduce blind spots with a wide 166-degree visual coverage, and captures details in sharp 1080p.
Greet every visitor with calm and ease

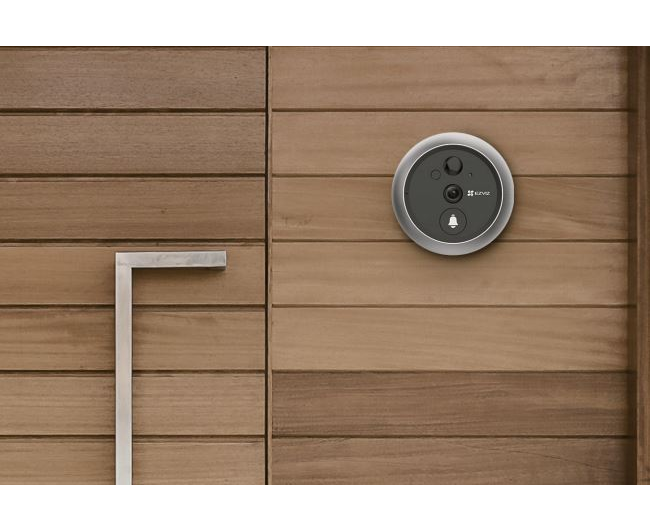

Working as a peephole camera and a doorbell, the DP2 ensures both security and convenience. Know instantly who is at your door, why and how to handle the situation even you are far away from home. There is even a voice changer if you'd prefer to remain unidentifiable to a stranger.
Smarter detection tells you what you want to know
Integrating PIR motion detection with human shapedetection, the DP2 is designed to reduce false alarms caused by trivial moving objects. Whether you live near a busy street or in a quiet neighborhood, you can customize the detection sensitivity to receivealerts that you care about.
Wire-free protection with 3-month battery life
The DP2 features a 4,600 mAh rechargeable lithium battery. The standby time can reach up to 90 days 2 with the smart power-saving functionality.
Built to last
Made with high-endurance zinc alloy, the DP2 is both sturdy enough forthe outdoors and stylish enough to fit your front-door style.
Safe, flexible storage options
Save videos locally on a 256 GB storage card, which can be inserted onto the indoor monitor. This guarantees data security in case the outdoor camera is damaged. Or, if you prefer, subscribe to EZVIZ CloudPlay for fully encryptedcloud storage.
