EZVIZ LC1C WiFi Outdoor Floodlight Camera - App controlled and alerts
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
This product can be added as a channel to a Hikvision recorder and will also work alongside your Hikvision system on the app

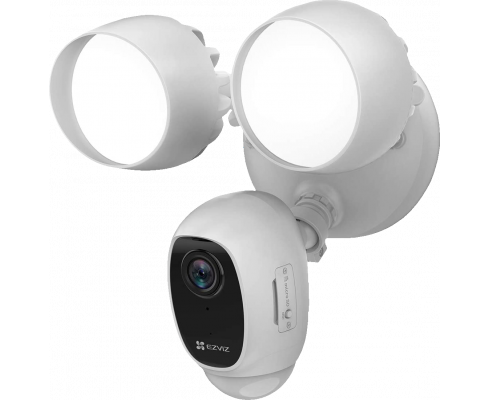

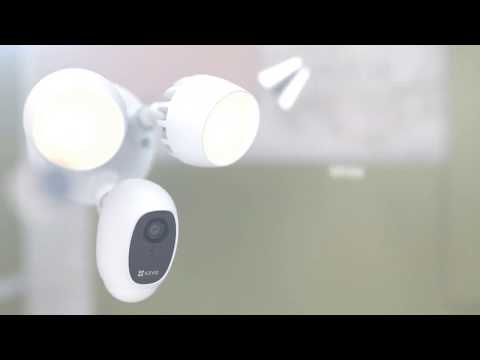

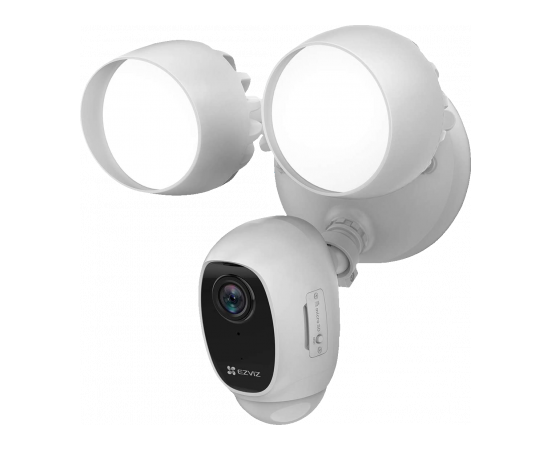

The Ezviz LC1 is a weatherproof IP65 rated outdoor floodlight with a powerful 2500 lumen brightness and built-in full 1080p HD 140 degree view camera and 100dB alarm system.
Furthermore, with the 270 degree PIR sensor, you will get motion detection alerts to your Ezviz app and be able to select areas of detection to avoid false alarms, and two-way audio solution built-in also.
The LC1 works with Amazon Alexa, Google Assistant and Ezviz Alarm Systems.
Light It Up
Featuring PIR human detection, the LC1 sends an instant alert to you when a human is approaching, whilst activating the bright floodlight feature. The 270 degree PIR sensor means intruders cannot evade detection, even if trying to go against the wall or under the floodlight. With up to 60ft range in night vision mode, you are protected, even in the dark!
Hear, Speak, Record
Two-way audio means you can help deter intrusions before they happen, or maybe you just want to tell the pets to get off the plants. Either way, via the app you are in control. You can view live footage, recordings, send and share as well as manually set your alarm off.
All you need to do for setup is follow the instructions via the free Ezviz app and your home Wi-Fi. The Ezviz app works with all Ezviz cameras and alarm products. View and manage remotely wherever you are.
Storage of Footage
Ezviz cameras can hold a Micro SD card for local and continuous storage (up to 128GB), alternatively you can sign up to the Ezviz cloud storage system (subject to subscription) or via an Ezviz Network Video Recorder (NVR).
Features:
- 1080p full HD resolution
- 270 degree PIR detection range
- Adjustable motion sensor, customised detection area, avoid false alarm
- Active protection with 1000db siren
- Dual 2500 lumen SMD LED
- Human detection with push notification in Ezviz app
- Secure cloud recording (subscription is required)
- Built-in microphone and speaker
- 2-Way noise audio with noise cancellation
- Local video storage on a microSD card (up to 128GB)
- Build-in dual antenna for strong and stable Wi-Fi connection
- Dustproof and waterproof, IP65 protection on camera
- Solid design with cast aluminium and plastic
