EZVIZ PS1300 1300wh Portable Power Station with UPS function.
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

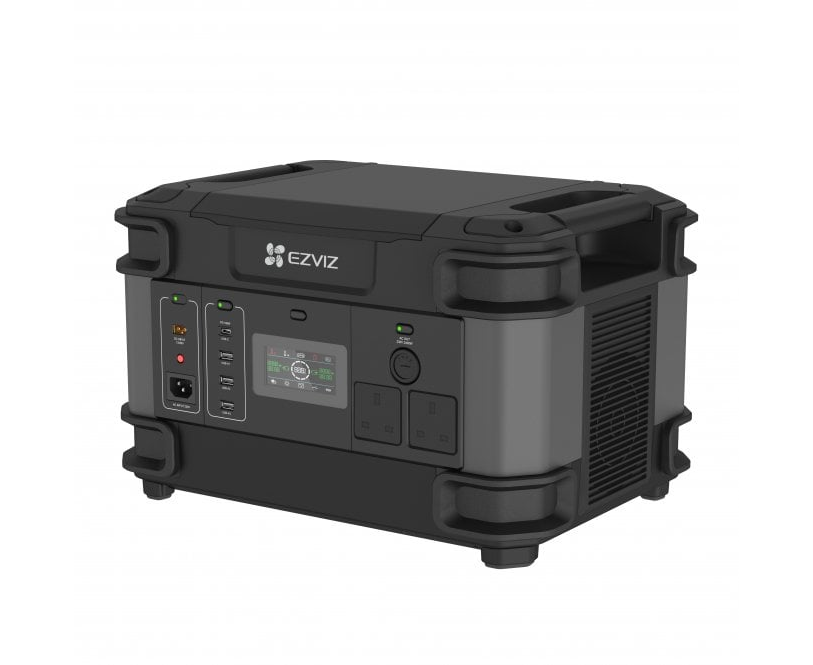

Introducing the PS1300 Portable Power Station from EZVIZ:
Stay off-grid whenever you want with the PS1300 Portable Power Station from EZVIZ. With its powerful 1,324Wh capacity, lightning-fast charging, and unmatched durability, it's your ultimate solution for all situations. From blackouts to outdoor adventures, the PS1300 keeps your devices and appliances running. Plus, it's eco-friendly, allowing you to harness solar power without compromising speed. Whether it's an emergency or a new adventure, the PS1300 has you covered.

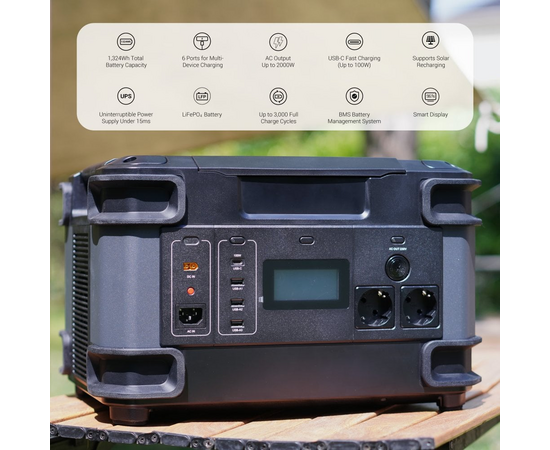

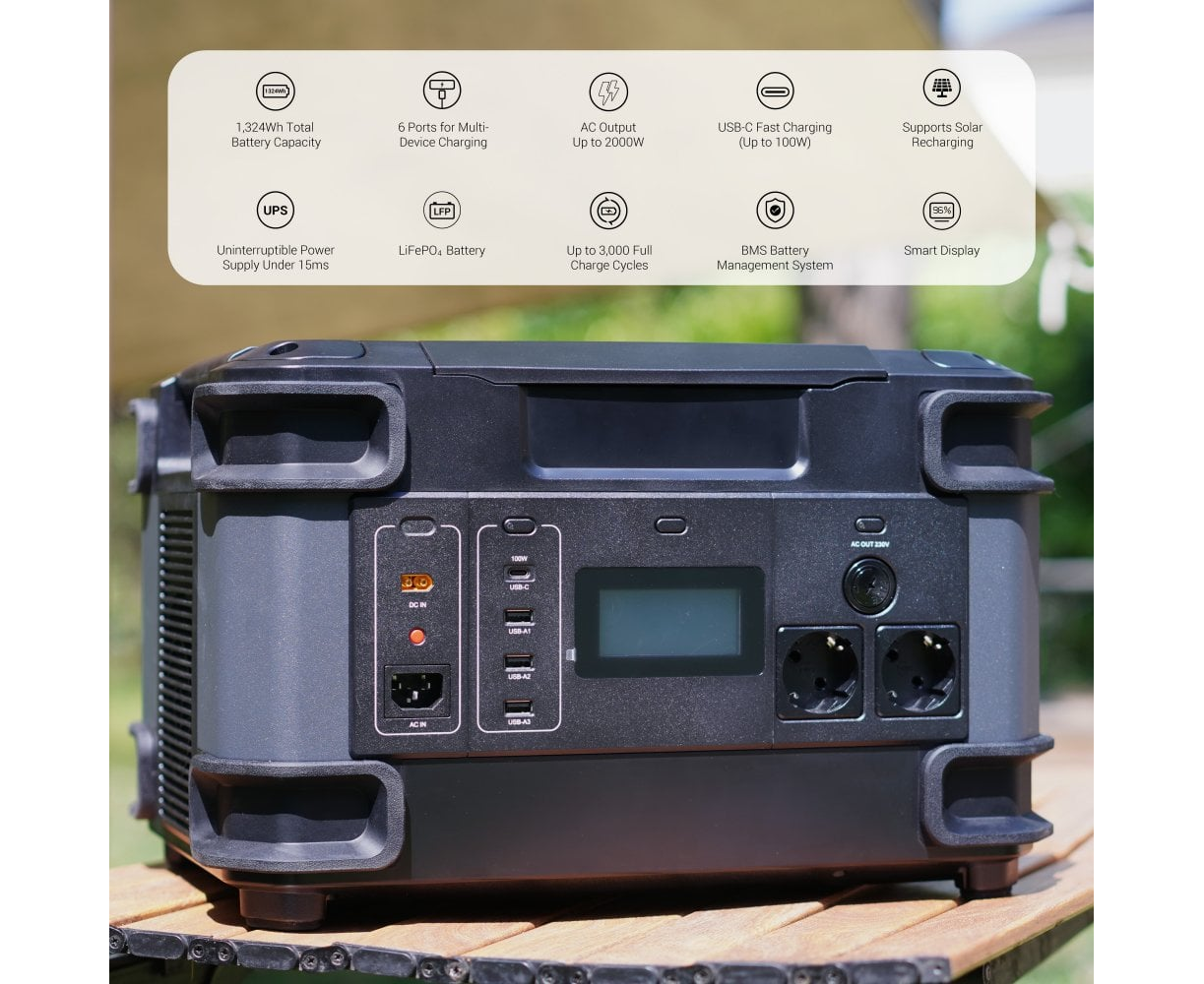

Key Features:
- 1,324Wh Total Battery Capacity: Massive power to keep your devices running.
- 6 Ports for Multi-Device Charging: Charge all your devices simultaneously.
- AC Output Up to 2000W: Use high-wattage appliances without worry.
- USB-C Fast Charging (Up to 100W): Rapidly charge your gadgets.
- Supports Solar Recharging: Embrace clean energy without sacrificing speed.
- Uninterruptible Power Supply Under 15ms: Continuous power, even during outages.
- LiFePO₄ Battery: Safer and long-lasting battery technology.
- Up to 3,000 Full Charge Cycles: Built for extensive everyday use.
- BMS Battery Management System: Ensures longevity by monitoring performance.
- Smart Display: Easily monitor status and warnings at a glance.
Safe and Durable:
Premium LiFePO₄ Battery for long-lasting use.
Battery Management System (BMS) ensures optimal performance.
Uninterruptible Power Supply (UPS) for sensitive equipment.
Easy Charging and Recharging:
Recharge via AC input for quick readiness.

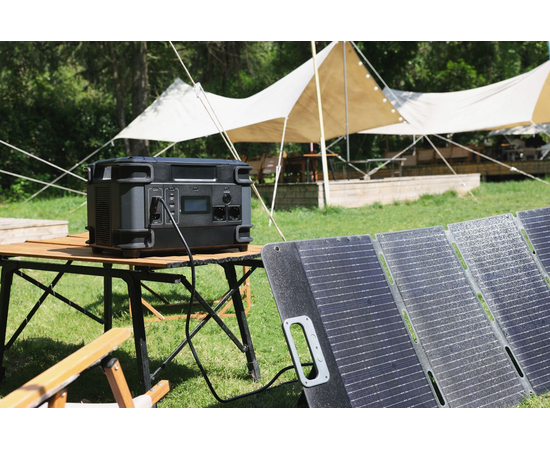

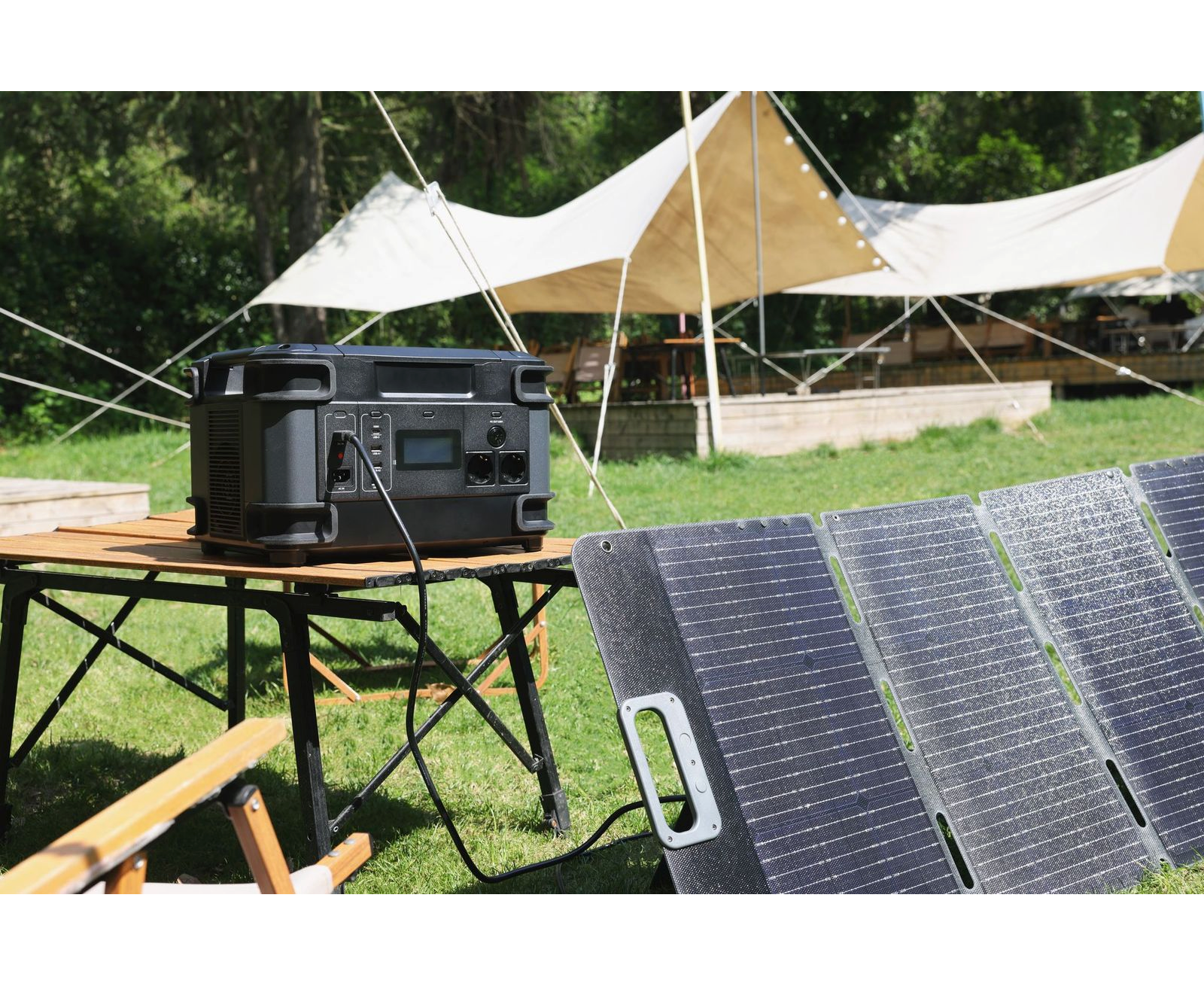

Utilize solar power for sustainable recharging.
Estimated Average Charging Time⁵:
1 × PSP100 Solar Panel: 16-24 hours
1 × PSP200 Solar Panel: 8-12 hours
Note: The PS1300's maximum total AC output is 2000W. Ensure appliance compatibility.
| Specifications | |
|---|---|
| Model | CN066 (UK Version) |
| Battery information | |
| Cell Capacity | 1324 Wh |
| Cell Chemistry | LFP (LiFePO₄) Battery |
| Cycle Life | Up to 3,000 Full Charge |
| Management System | Over Voltage Protection, Overload Protection, Over Temperature Protection, Overcurrent Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection |
| Input | |
| AC Input Power (Charging) | 230V 50Hz / 1300W Max |
| Solar Panel Input (Charging) | 13-60V / 1300W Max |
| Output | |
| AC Output (×2) | 210-240Vac (50Hz) Single: 2000W Max Total: 2000W Max |
| USB-A Output (×3) | Single: 5V 2.4A |
| USB-C Outlet (×1) | 5V━3A / 9V━3A / 15V━3A / 20V━5A (100W Max) Compliance with PD Protocol |
| UPS | |
| UPS | Supports, 15ms |
| General | |
| Net Weight | 21.77 kg (787.91 oz) |
| Weight (With package) | 23.86 kg (841.64 oz) |
| Product Dimension | 434 × 314 × 271 mm (17.09 × 12.36 × 10.66 inch) |
| Packaging Dimension | 505 × 355 × 324 mm (19.88 × 13.98 × 12.76 inch) |
| Charging Temperature | 32-104 °F (0-40 °C ) |
| Recharging Temperature | 23-104 °F (-5-40 °C ) |
| In the box | |
| In the box | PS1300 Power Station |
| AC Charging Cable | |
| Car Charging Cable | |
| Solar Panel Charging MC4 Cable | |
| Quick Start Guide | |
| Certifications | |
| Certifications | CE / RoHS / RECHE / WEEE / MSDS / UKCA |
