GJD AI-8S Clarius HD Zoom ANPR/IP MX Camera 850nm
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

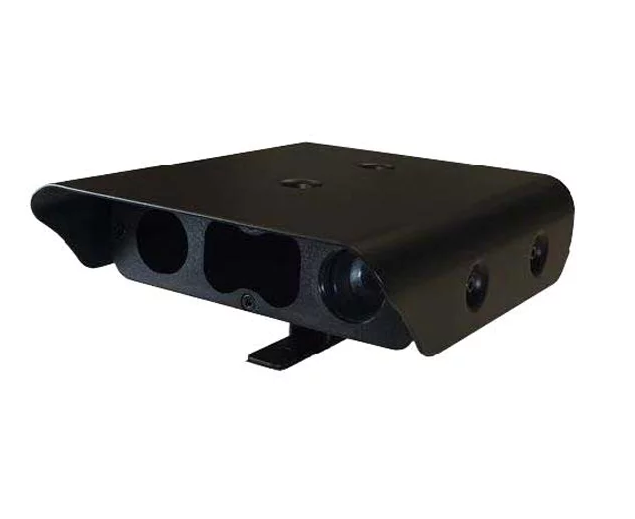

GJD AI-8S Clarius HD Zoom ANPR/IP MX Camera 850nm
The compact and lightweight range of Clarius ANPR Cameras use the latest LED technology to deliver a new standard of plate reading. The cameras have been designed to be efficient, economic and technically appealing to installation engineers. Using the latest Sony sensor technology for noise reduction and infrared sensitivity, the Clarius cameras capture crisp infrared images of retro-reflective number plates. The overview camera module captures corresponding contextual images of vehicles both in daylight and in challenging light conditions.
The Clarius two internal camera modules are fitted with motorized zoom lens giving flexibility of capture range from 5-25m making it suitable for access control at site entrances or for gantry mounting scanning high-speed traffic.
With a 2MP sensor and a resolution of 1920 x 1080P, the camera provides wide lane ANPR coverage of up to 7m.
The lightweight cameras utilise a polycarbonate front cover fitted with removable IR diffusers for use at read distances of less than 17m. The diffuser spreads the beam of IR light into a elliptical format which then evenly illuminates the whole field of view resulting in much better ANPR performance.
A GORE valve for pressure equalisation and moisture expulsion complement the Clarius advanced technical design features.
Perfect for:
- Highway traffic
- Free-flow parking control
- Site security control & monitoring
- Barrier/access control
- Mobile ANPR
