GJD GS100 ATEX Infrared Beam
In depth product detail
The GS100 beam set is an intelligent detector designed to be used in association with alarm annunciation equipment or other devices that provide a means of monitoring the GS100 voltage free relay alarm output, for example CCTV integration.
The GS100 IR beam set is ATEX certified and designed for use within the petrochemical and oil sectors, as well as other similar industries where an explosion, flame, weather or dust proof housing is required.
Applications
-Chemical plants -Gas storage -Petro chemical -Explosive environments -Oil platform

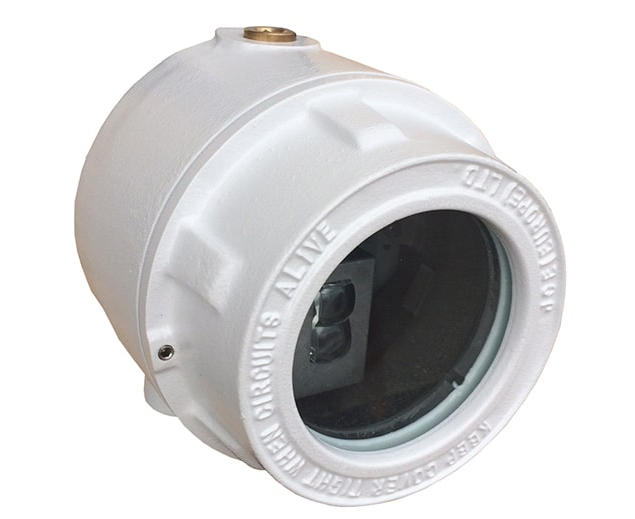

Product Description Flameproof IR Transmitter & IR Receiver Enclosure
II 2 G Ex d op is IIC T6 Gb -20 °C ≤ Ta ≤ +40 °C, IP66
II 2 D Ex tb op is IIIC T80°C Db IP66
Type
EMH29
Suitable for:
Group II Category 2 G Zone 1 & Zone 2 Hazardous areas (gases)
Group II Category 2 D Zone 21 & Zone 22 Hazardous areas (dusts)
In accordance with EC type examination certificate No. TRAC13ATEX0054X, a review of EN 60079-0:2012/A11:2013.
EN 60079-1:2014, EN 60079-31:2014 and Manufacturing Specification and Parts List-06109 EMH29-06108.
This product is a component system and is intended for inclusion within other equipment fitted by professional installers only.
The unit must not be operated as stand alone equipment.
Where applicable, compliance with the EMC directive or Machinery Directive is the responsibility of the installer.
