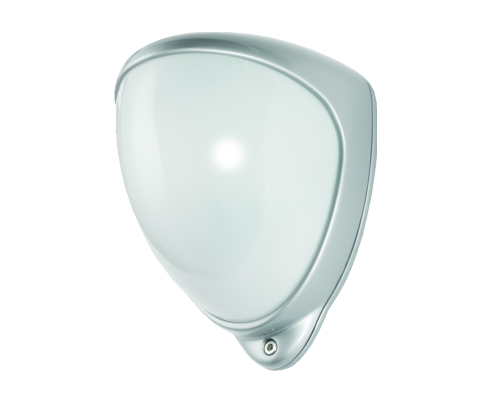

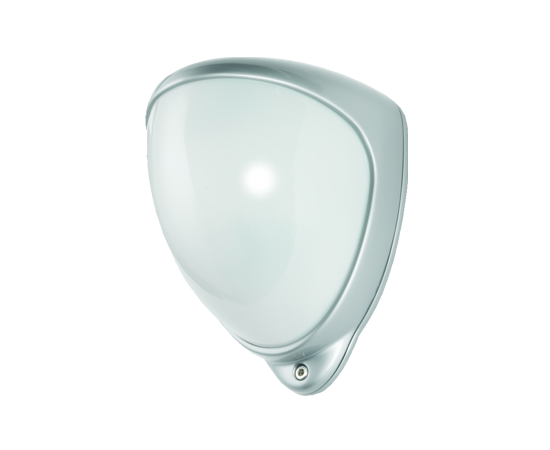

GJD350 - D-TECT 50

The D-TECT 50, BS 8418 compliant movement detectors combine advanced signal processing and unique optical systems, which allow for the beam range to be programmed from 25 to 50 metres, avoiding boundary overspill, making it particularly effective for perimeter detection.

• Detection area of up to 50m
• Adjustable pan and tilt
• A conduit cable adaptor is available
• Engineer friendly features to ease cable termination, set-up and servicing
• Covert sensor module

RANGE: From 25m to 50m programmable

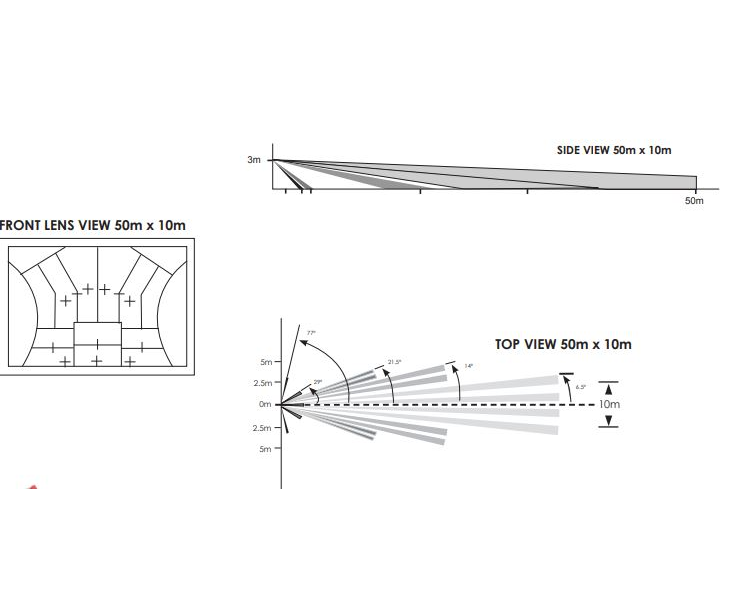

COVERAGE: Detection Area 50m x 10m
ADJUSTMENT: 180º pan + 90º tilt
MOUNTING HEIGHT: Optimum 3m
FRESNEL LENS: 12 zones for each Pyro pair
CUSTOMISED OPTICS: Double silicon shielded quad element eliminates
50,000 Lux of white light
INDICATORS: 1 x Blue LED on detection (configurable on/off)
OUTPUTS:
2 x volt-free, silent solid state magnetically immune, 2
x neg, switched plus one common tamper (front and
rear switched)
POWER INPUT: 9 - 24 AC/DC
CURRENT: 12 mA (12V nominal)
PULSE COUNT: 1-2
WALK TEST: Output test mode with LED indication
OPERATING TEMP: -20ºC to +55ºC conformally coated electronics for
increased stability
TEMP. COMPENSATION: Digital sensitivity adjustment
TIMER OPTIONS: 2 to 60 seconds
LIGHT SENSING: Dusk (2 Lux) to 24 hour
HOUSING: High impact zinc alloy
PROTECTION RATING: IP55

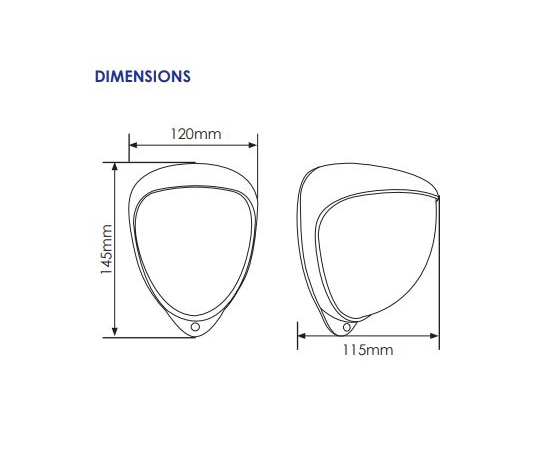

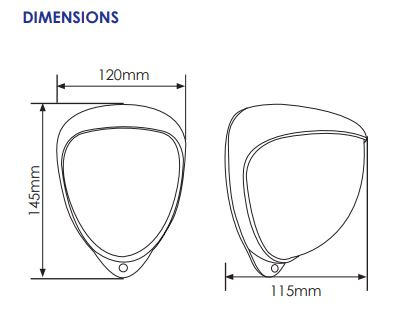

DIMENSIONS 145 x 120 x 115 mm
WEIGHT: 750g NET, 880g GROSS
CABLE <200M: Utilising all five outputs (incl. tamper) - 12 core
7/0.2mm
CABLE <500M: Utilising all five outputs (incl. tamper) - 12 core
16/0.2mm
