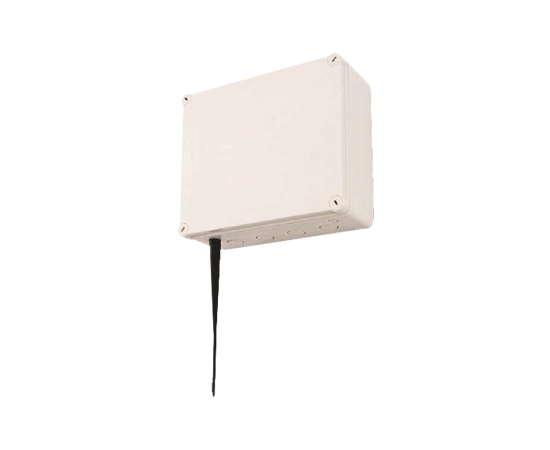

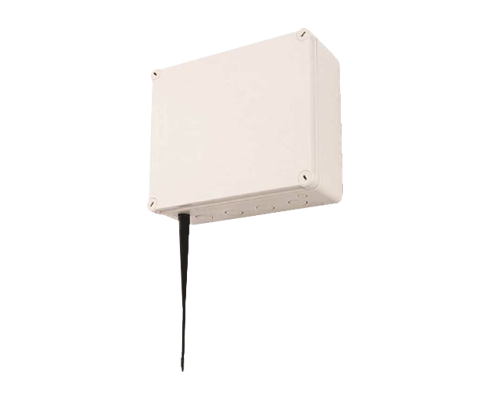

GJD392 - D-TECT X
GJD392 - D-TECT X
The GJD392 Receiver is an IP55 weatherproof, tamper protected, four channel unit equipped with two volt free & two negative switched outputs per channel. It can be expanded by the addition of up to 3 four channel expansion modules to allow the receiver unit to monitor the active state of up to 16 wireless D-TECT X movement detectors
- Communication Range: Up to 500 m (line of sight)
- Communication Codes 16,700,000, 868MHz
- Power Input 12 - 24V AC/DC
- Indicators (per detector) 1 x LED Detection 1 x LED Tamper 1 x LED RF loss 1 x LED Low battery indication
- Operating Temperature -20ºC to +55ºC Conformally coated electronics for increased stability
- Connections 1 x program socket for detectors. Expansion socket for connection to additional modules
- Outputs (per Detector) 2 volt-free, silent solid state magnetically immune contacts 2 neg. switched plus one common tamper (front and rear switches) 1 RF Loss 1 Low battery
- Capacity 4 detector module fitted as standard 3 slots for additional 4 channel expansion modules (total 16 detectors)
- Case High impact, flame retardant, UV stabilized Polycarbonate
- Protection Housing Minimum IP55
- Dimensions 210 x 180 x 75 mm (excluding aerial)
- Weight 658g NET, 720g GROSS
