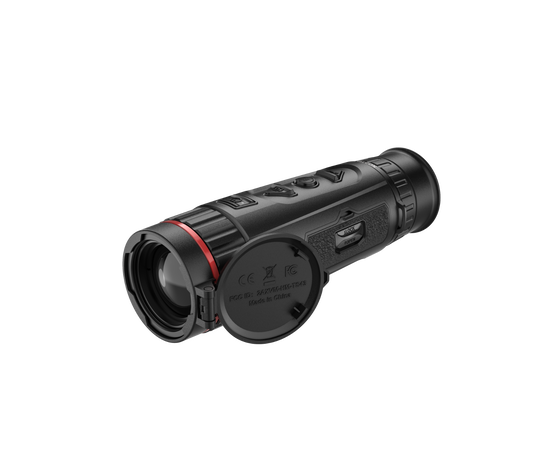

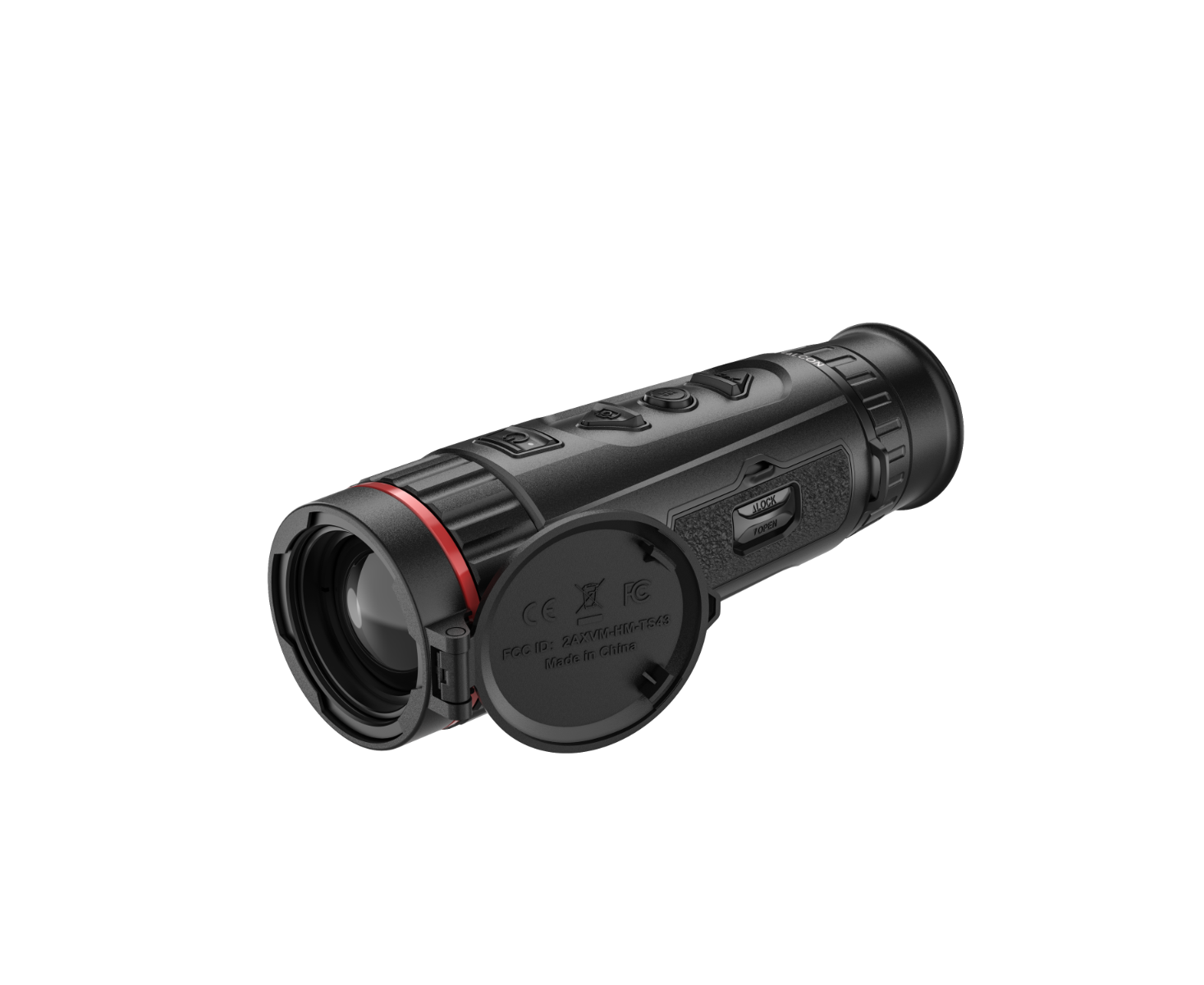

HIKMICRO FQ25 Falcon 25mm 640px (FQ25) Thermal Monocular
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
The Falcon Pro 25mm combines the industry leading performance of the HIKMICRO’s latest thermal sensors with a 25mm lens delivering an ultra-wide field of view. This gives a very natural viewing experience and makes the Falcon Pro 25mm perfect for ecology projects and wildlife surveys.
The highly sensitive Falcon Pro 25mm is fitted with a high resolution 640x512px 12um SUB 20 NETD sensor. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your subject and its surroundings.
The HIKMICRO Falcon Pro 25mm replaces the popular Owl series and builds on the easy-to-use, ambidextrous chassis with a highly robust magnesium housing and four buttons that control all functions with ease, even in total darkness. Powered by a removable 18650 battery and with a run time of up to 6 hours the HIKMICRO Falcon FQ25 Pro is ready for work.
The eyecup of the HIKMICRO Falcon Pro 25mm would feel at home on a high-quality pair of binoculars, comfortably holding the display in the correct position, giving you a comfortable view of the large HD OLED screen.
The HIKMICRO Falcon Pro 25mm is the first HIKMICRO product to offer Image Pro mode. When activated image pro boosts the detail in the image both for animals and the background.
In addition to Image Pro, the HIKMICRO Falcon Pro 25mm also boasts all of the normal software features found in HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built-in 64GB memory of the HIKMICRO Falcon Pro 25mm also allows you to save images and videos directly onto the monocular.
Product Review (the Best Thermal Monocular for Wildlife Observation): https://www.hikmicrotech.com/e...
