HIKMICRO G31 G Series Handheld Thermography Camera HM-TP73-15SVF/W-G31
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

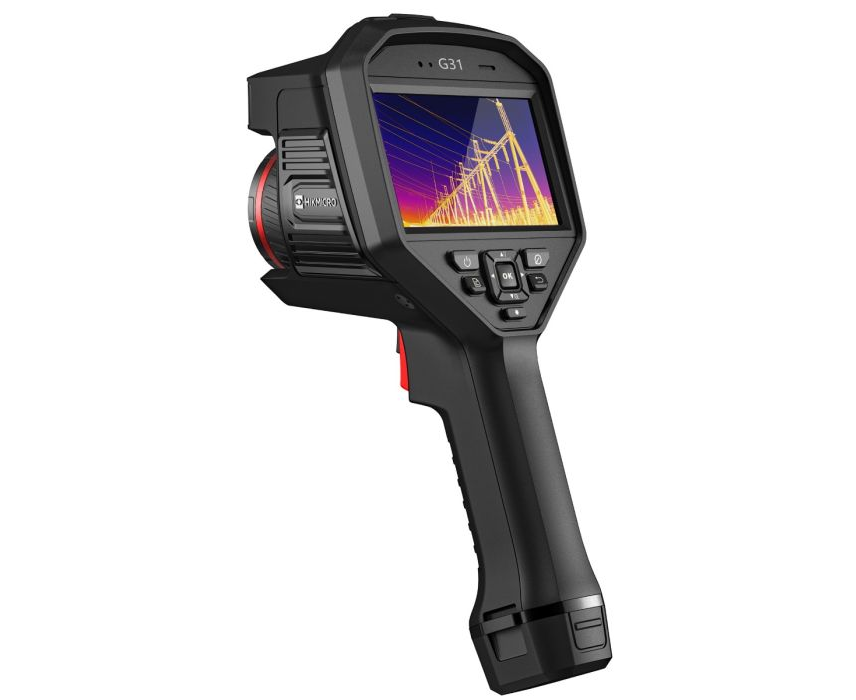

The Hikmicro G31 Handheld Thermography Camera is a high-performance tool designed for accurate and efficient temperature measurement in various industrial environments. Ideal for applications in building inspections, electrical utilities, and the oil and gas industry, the camera helps users quickly identify high-temperature targets and provide assistance for safety and decision-making.
Key Features:
- High-sensitivity thermal module with 384 × 288 resolution, Super-resolution up to 768 × 576
- Supports multiple palettes for enhanced image visualization
- 8 MP high-quality optical module for clear thermal images
- Bi-spectrum image fusion for picture-in-picture preview
- Wide temperature measurement range: -20°C to 650°C
- High temperature measurement accuracy: ± 2°C, ± 2%
- 4.3" LCD touch screen with high-caliber 800 × 480 resolution
- Long-distance laser light supplement for thermography targets
- LED light supplement functions as a torch for various scenarios
- Supports 1.0x to 8.0x continuous digital zoom
- 640x480 resolution at 35mK NETD for high-precision thermal imaging
- Five focus modes: Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF
- Fast focus speed of 2 seconds for clear and accurate thermal images
In addition to these features, the Hikmicro G31 comes with essential accessories, such as a 64GB micro SD card, rechargeable batteries, charging base, international power plugs, USB cable, CVBS patch card, user manual, and a manufacturer’s calibration certificate, ensuring reliable performance and ease of use.
