HIKMICRO G41H G Series Handheld Thermal Camera HM-TP74H-25SVF/W-G41H
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

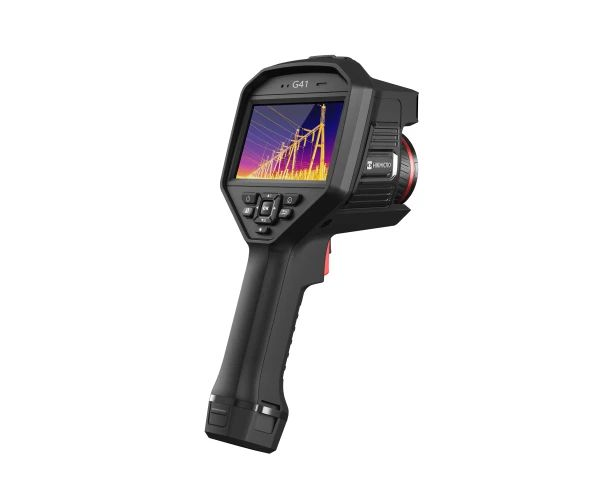

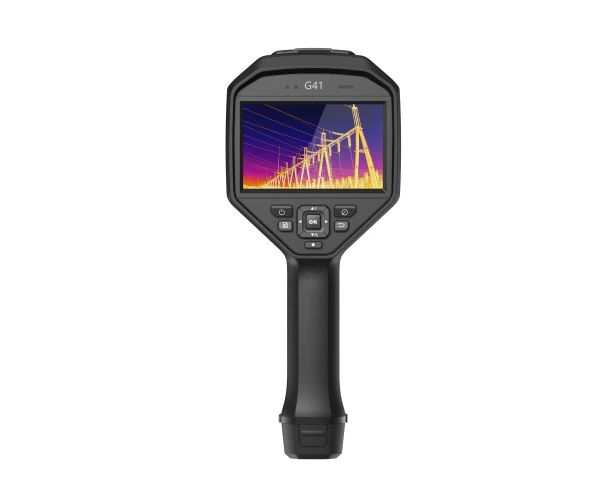

The G41H Handheld Thermal Camera is a versatile and high-performance tool designed to meet the demands of a variety of industries requiring precise thermal measurements. With a thermal resolution of 480×360 and an optical field of view of 18.7°×14°, the camera ensures clear and accurate thermal imaging. It supports both auto and manual focus modes for flexible use in different environments.
The G41H has an excellent NETD (Noise Equivalent Temperature Difference) of <35mK, providing high sensitivity for detecting subtle temperature variations. The built-in 8MP visible camera enables clear visual imaging alongside the thermal data, making it ideal for comprehensive inspections. It covers an extensive temperature range from -20°C to 2000°C with measurement accuracy of ±2°C or ±2%, providing versatility across various applications.
Equipped with a 4.3-inch LCD touch screen with a resolution of 800×480, the G41H allows for easy navigation and clear display of both thermal and visual images. Additional features include LED light for better visibility in low-light conditions, replaceable battery for continuous use, and HDMI, GPS, and Wi-Fi connectivity for remote data sharing and integration.
The camera also includes a laser range finder, making it easier to determine the distance to a target for more precise thermal readings. With 64GB of storage, the G41H ensures ample space for saving and reviewing thermal data.
