HIKMICRO G61H G Series Handheld Thermal Camera HM-TP76H-25SVF/W-G61H
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

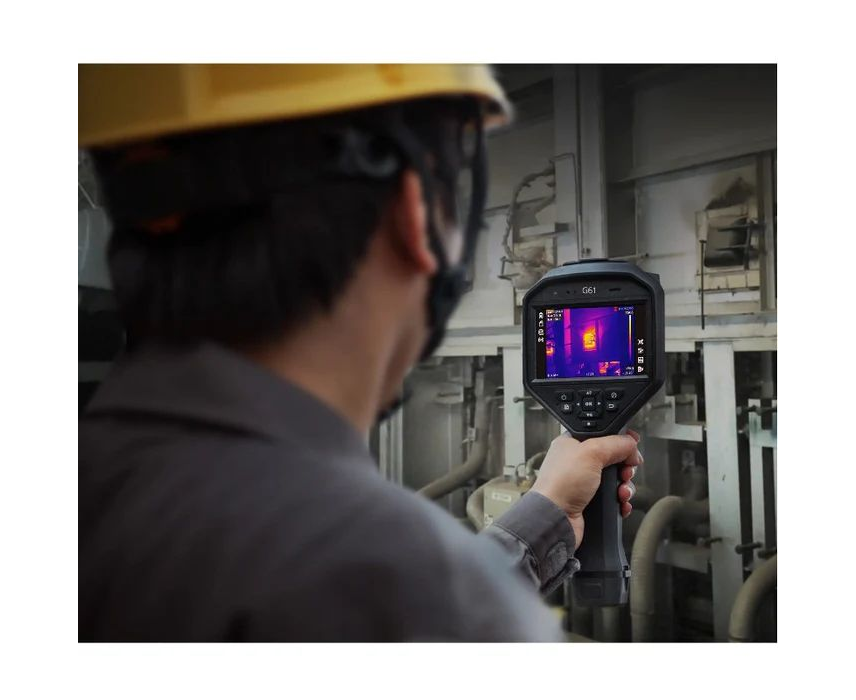

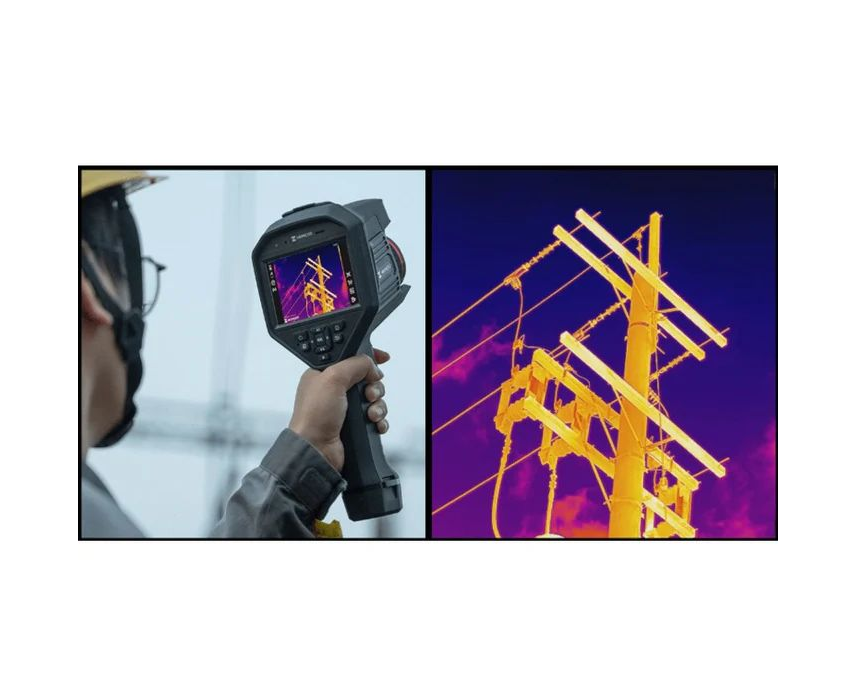

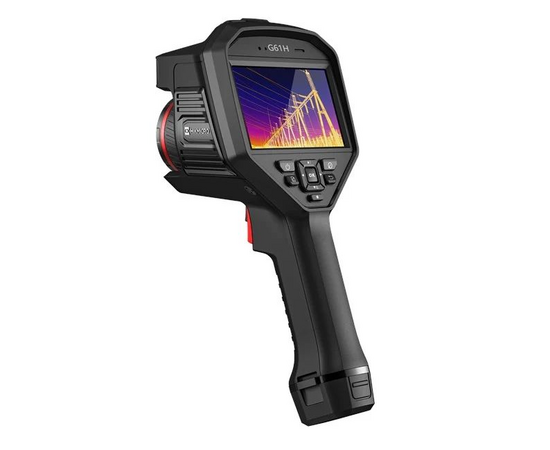

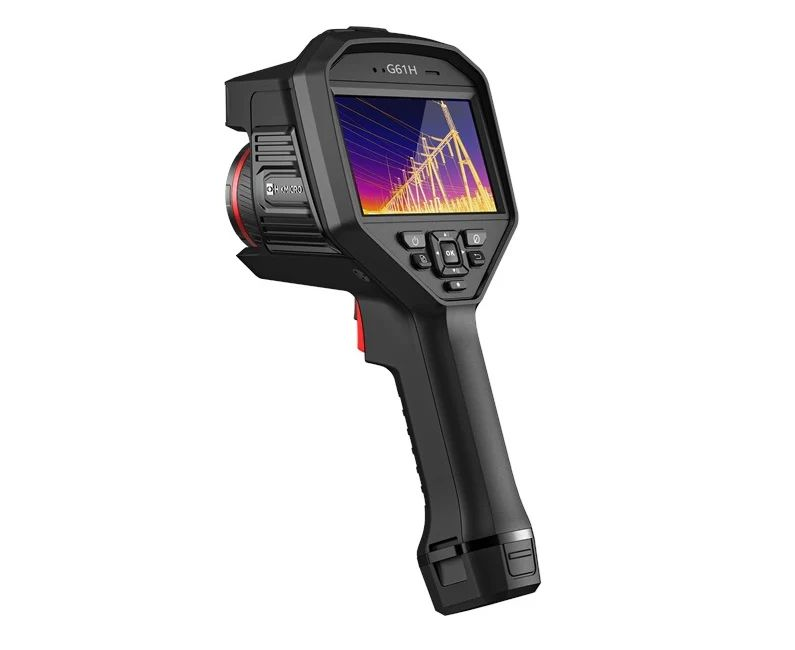

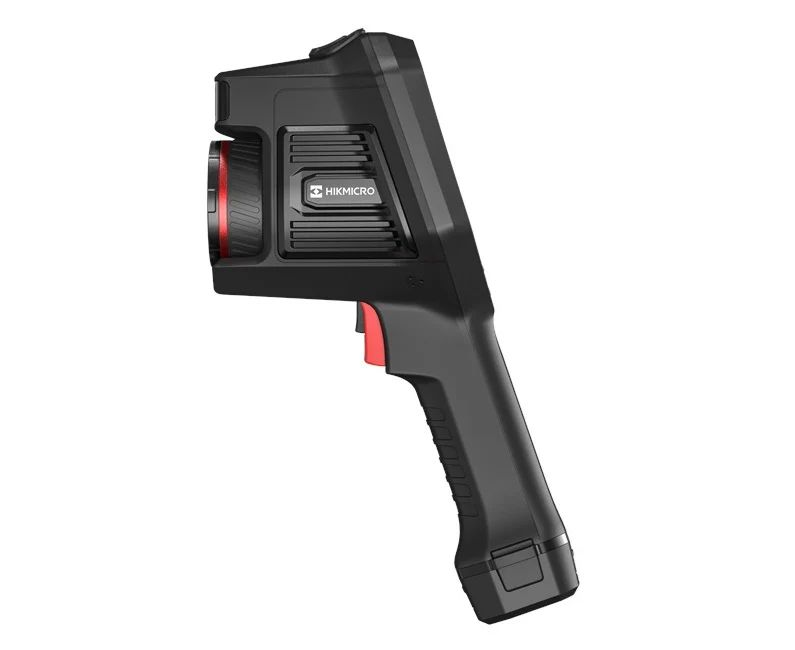

The HIKMICRO G61H Handheld Thermal Camera is an advanced and reliable tool designed for precise temperature measurement in a variety of industries. Equipped with a 640 x 480 resolution thermal detector, this camera enables users to quickly identify high-temperature targets, providing vital data to assist in decision-making and ensuring safety. Ideal for use in building inspections, electrical utilities, oil and gas industries, and other fields, the G61H is built to withstand tough environments while delivering clear and accurate thermal images.
The G61H features a high-sensitivity thermal module that ensures excellent image quality even in challenging conditions. It supports multiple palettes to allow users to choose the most suitable one for their specific needs, ensuring the best possible visual representation of temperature variations. The camera also comes with a high-quality 8MP optical module, which works in combination with bi-spectrum image fusion to provide a picture-in-picture preview, giving users a clearer view of both thermal and visible images.
The temperature measurement range of the G61H spans from -20°C to 2000°C, with a high temperature measurement accuracy of up to ±2°C or ±2%. This makes it suitable for a wide variety of applications, from building inspections to industrial settings. The camera is equipped with a high-resolution 4.3-inch LCD touch display (800 x 480) for easy navigation and image viewing.

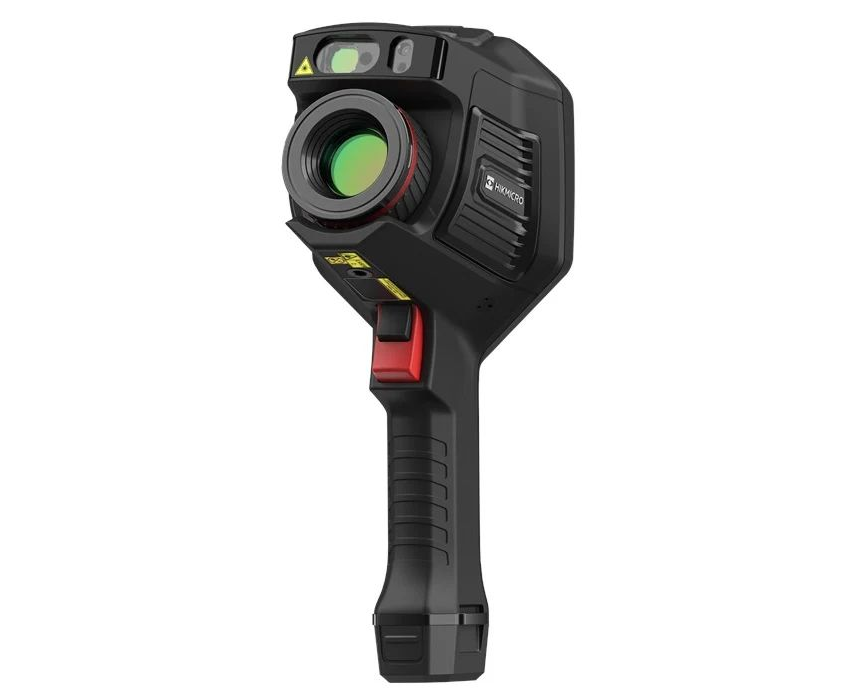

Additional features include a long-distance laser light supplement for accurately targeting thermography subjects, as well as an LED light that turns the device into a torch for improved visibility in low-light conditions. The G61H also supports continuous digital zoom from 1.0x to 8.0x, allowing for enhanced detail and more accurate readings of distant targets.
