HIKMICRO Habrok 35mm 384x288 20mk Multi-Spectrum Thermal / Digital Binoculars with 1000m LRF
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Description

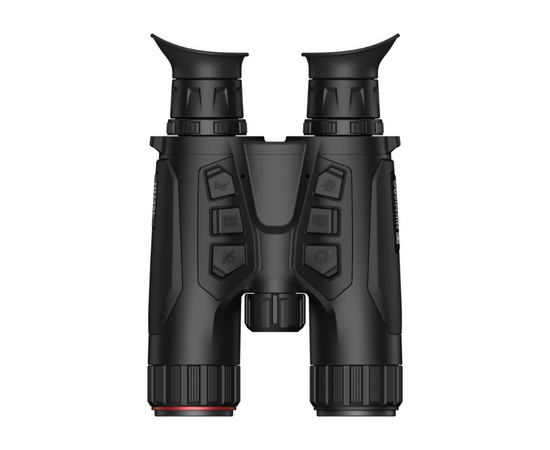

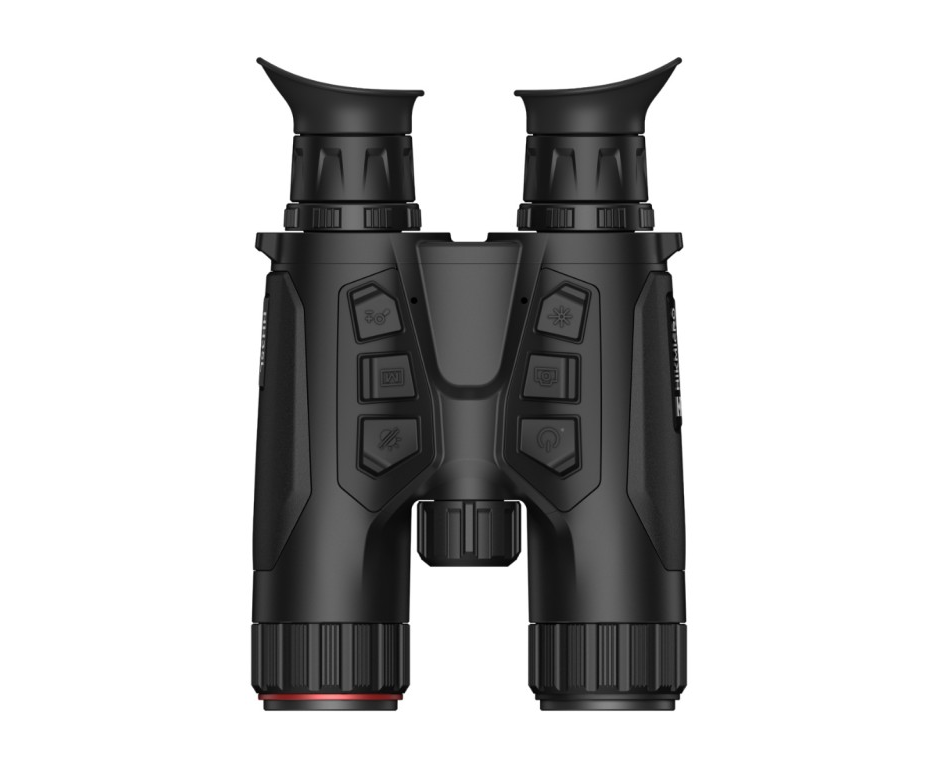

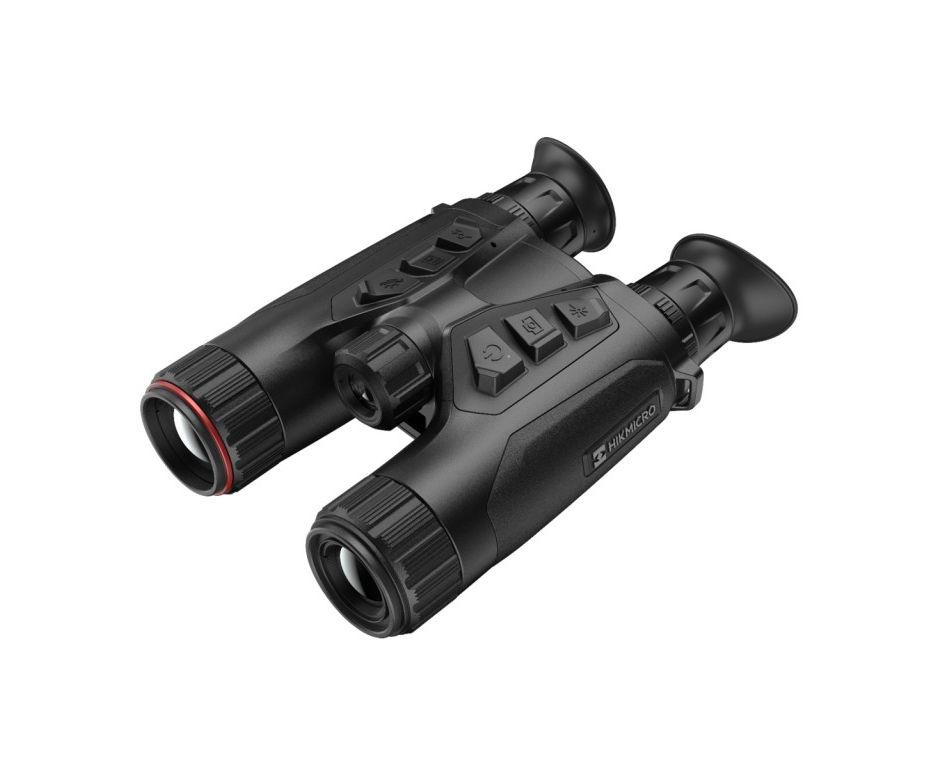

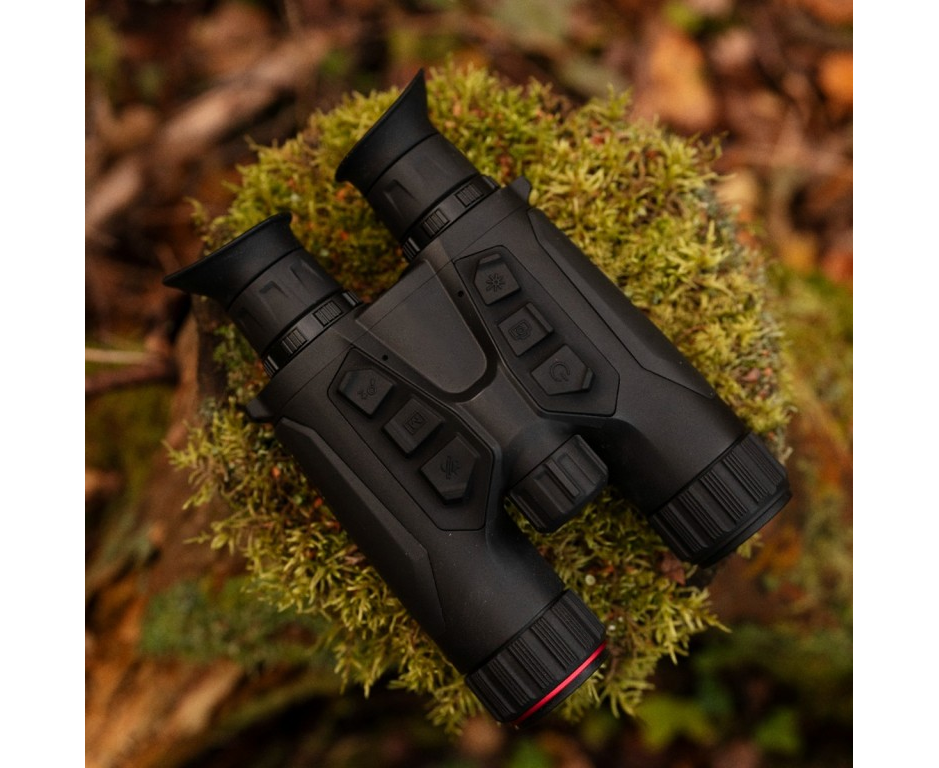

Introducing the HIKMICRO HABROK multi spectrum binocular which delivers high performance thermal detection with a vibrant, full colour daytime image, night vision capabilities and a 1000m laser range finder all in a compact binocular chassis.
Anyone who has used traditional optical binoculars will feel instantly at home with the HIKMICRO Habrok, they are exactly the same size and weight. Not only can they show your surroundings in the conventional optical image the Habrok includes many extra functions to help you see even more.
Where the Habrok excels is in functionality. The high quality optical camera delivers a detailed, full colour daylight image that automatically adjusts in twilight hours to deliver exceptional performance in low light. Even total darkness will not stop you; the inbuilt night vision capability adds another dimension to your wildlife observation.
The real super-power of the HIKMICRO Habrok is the built in thermal camera. Animals and birds have evolved to be perfectly concealed in their surroundings, but this technology uses the body heat of animals to allow you to quickly locate them. The Habrok uses the latest SUB 20mK NETD HIKMICRO thermal sensor to deliver a highly detailed thermal image. This high performance sensor is able to measure the smallest differences in temperature, building an unbelievably detailed image of heat sources and their surroundings. Once you have used thermal detection to locate the animals, you can switch back to the optical mode and watch them. Alternatively, you can use your spotting scope or camera to capture them.
The robust and ergonomic Magnesium Alloy chassis exudes quality while also putting all of the major controls at your finger tips. This allows you to intuitively switch between the different image modes and take control of the other features including the 1000m laser range finder, even in the dark. The Habrok is powered by two 18650 batteries delivering up to 6 hours of run time.
The comfortable eye cups and interpupillary adjustment in the eyepieces allow you to find the perfect fit for your eyes and offer a great view of the large OLED display. You can also use the HIKMICRO Sight app to stream your activity to your mobile device so your friends can share your view or you can remotely observe. You can record videos and images to the inbuilt memory and share them later on your social channels.
