HIKMICRO HM-5202ZC2 Dual Battery Charger for G Series Thermal Camera Batteries
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

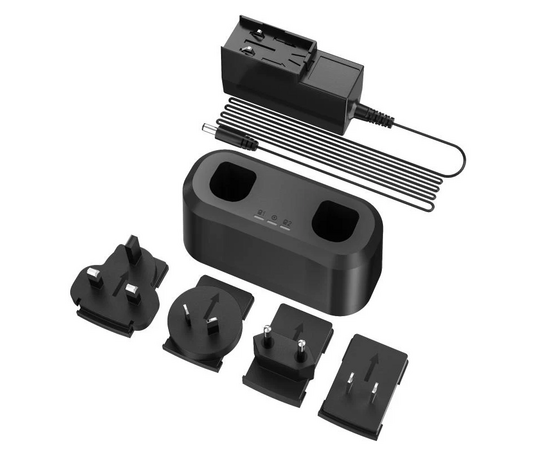

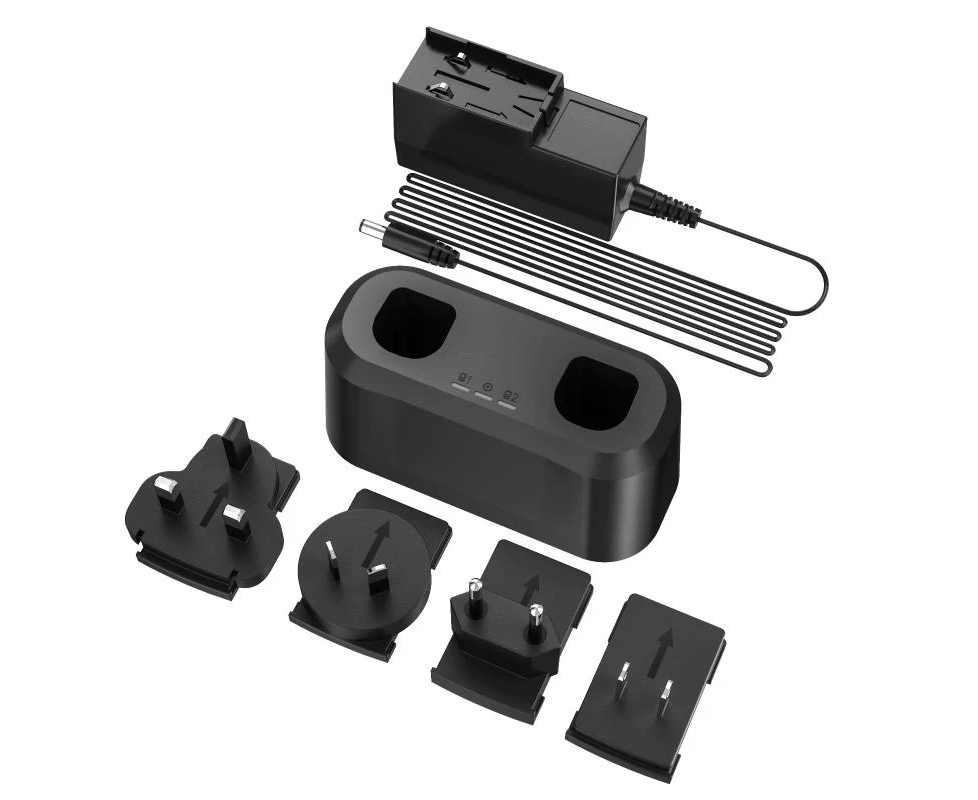

The HikMicro HM-5202ZC2 is a high-quality dual battery charger designed specifically for HikMicro G Series thermal camera batteries. This charger allows users to charge two batteries simultaneously, ensuring minimal downtime and continuous operation of their thermal imaging devices.
Featuring an intuitive LED indicator system, the charger provides real-time updates on battery and charging base status. The solid red and green lights indicate charging progress, full charge, or abnormalities, helping users monitor the process efficiently.
The HM-5202ZC2 comes equipped with multiple international power adapters (US, UK, EU, AU), making it an ideal solution for professionals working in different regions. With a wide input power range of AC 100-240V/0.7A and an output of DC 12V/2A, this charger ensures a stable and efficient charging process.
Please note: Batteries are sold separately and are included with HikMicro thermal imagers.
Key Features:
- Compatible with HikMicro G Series thermal camera batteries
- Charges two batteries simultaneously for increased efficiency
- LED indicators show real-time charging status and battery conditions
- Multiple power adapters included for international use (US, UK, EU, AU)
- Input power: AC 100~240V/0.7A
- Output power: DC 12V/2A
