HIKMICRO HM-AHBR03 Desktop Bracket for M Series Thermal Cameras
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

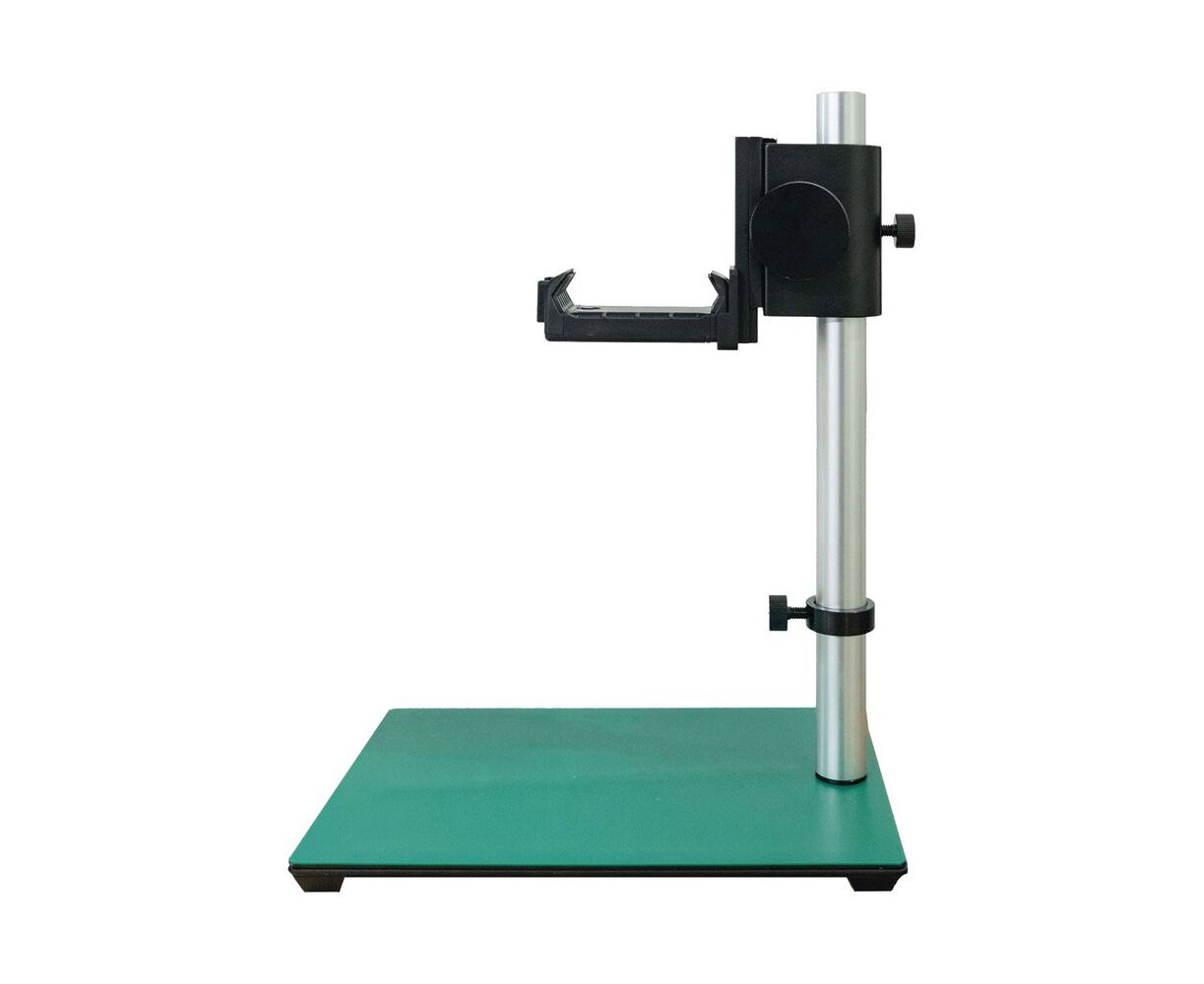

The HIKMICRO HM-AHBR03 Desktop Bracket is designed to provide stable and adjustable support for M Series thermal cameras, ensuring precise positioning for inspections and monitoring applications.
Constructed from high-quality aluminum alloy, this bracket offers a robust and durable structure while remaining lightweight. It features a ¼"-20 UNC thread for secure mounting and is compatible with various devices. The height is adjustable from 15 mm to 180 mm, allowing users to achieve the perfect positioning for their thermal imaging needs.
With a maximum load capacity of 1 kg, the HM-AHBR03 bracket is ideal for both industrial and laboratory environments. The sturdy design ensures stability, reducing vibrations and improving image accuracy during thermal inspections.
Key Features:
- Compatible with HIKMICRO M Series thermal cameras
- Sturdy aluminum alloy construction for durability
- Height adjustment range from 15 mm to 180 mm
- ¼"-20 UNC thread for secure mounting
- Maximum load capacity of 1 kg
- Compact and lightweight design for easy setup and portability
Enhance your thermal imaging setup with the HIKMICRO HM-AHBR03 desktop bracket, ensuring precise positioning and stability for accurate thermal inspections.
