HIKMICRO HM-AHL02-MM650 Macro Lens for M Series Thermal Cameras
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

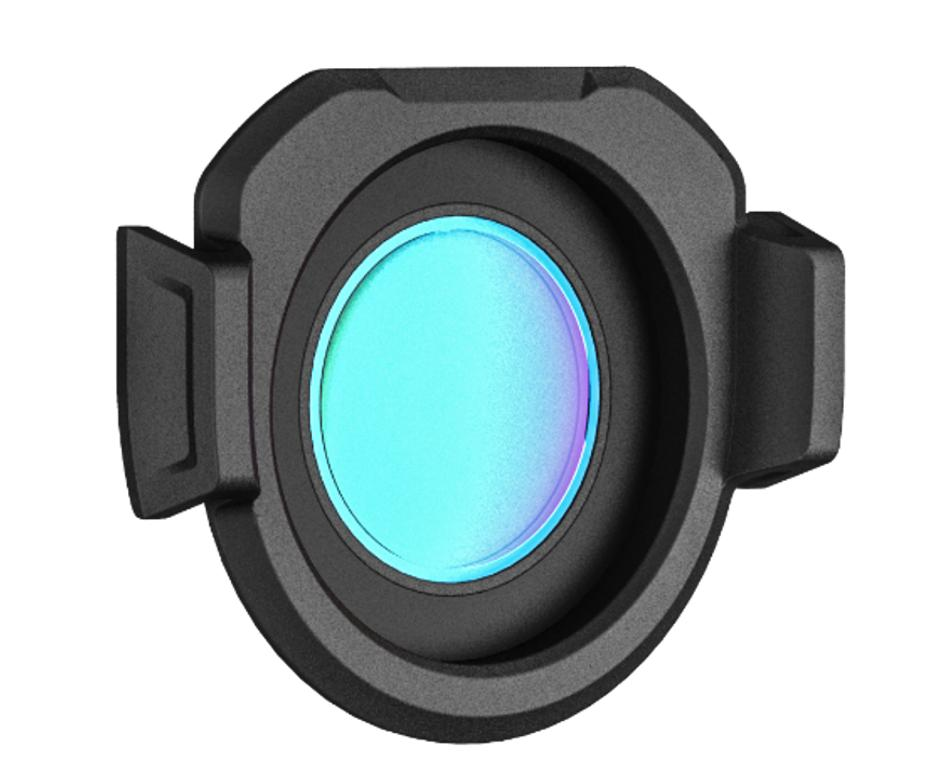

The HIKMICRO HM-AHL02-MM650 is a high-precision macro lens designed for use with HIKMICRO M Series thermal imaging cameras. This advanced lens enhances the camera's capability to inspect small electronic components, detect potential design flaws, and identify hotspots on printed circuit boards with exceptional clarity.
With a minimum focus distance of 26.5 mm, this macro lens enables detailed close-up thermal inspections, making it ideal for electronics diagnostics, research, and industrial quality control. It delivers high spatial resolution, achieving up to 50 µm/pixel with manual focus and 100 µm/pixel with fixed focus, ensuring accurate thermal analysis.
Built to withstand demanding environments, the HM-AHL02-MM650 operates within a temperature range of -20°C to 50°C, making it suitable for various industrial and laboratory applications.
Key Features:
- Minimum focus distance of 26.5 mm for close-up thermal inspections
- High spatial resolution: 50 µm/pixel (manual focus) and 100 µm/pixel (fixed focus)
- Wide operating temperature range of -20°C to 50°C
- Seamless integration with HIKMICRO M Series thermal cameras
- Ideal for electronic inspections, PCB analysis, and industrial diagnostics
Enhance your HIKMICRO M Series thermal camera with the HM-AHL02-MM650 macro lens and achieve precise thermal imaging for detailed component analysis.
