HIKMICRO HM-CQ35L2.0 Condor Pro LRF 2.0 35mm 640px Thermal Monocular
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

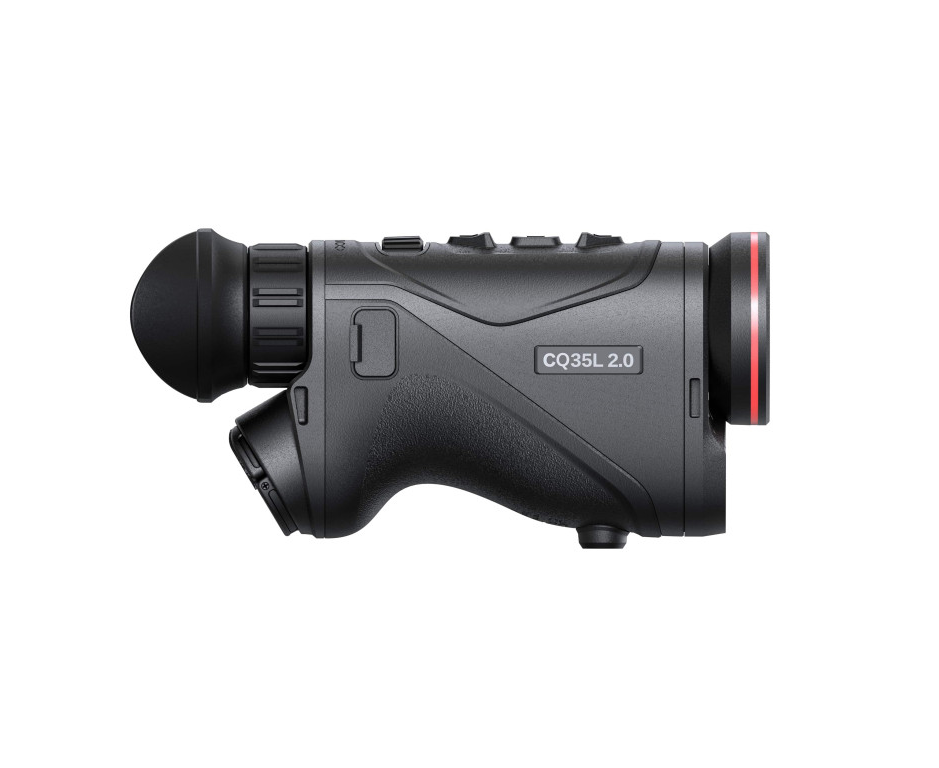

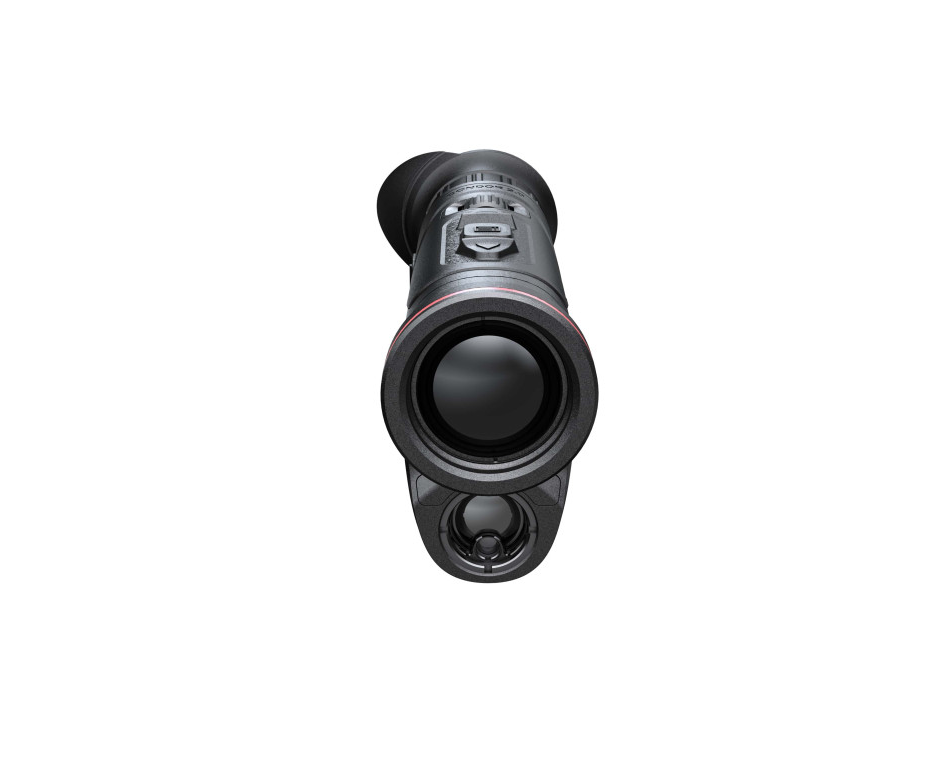

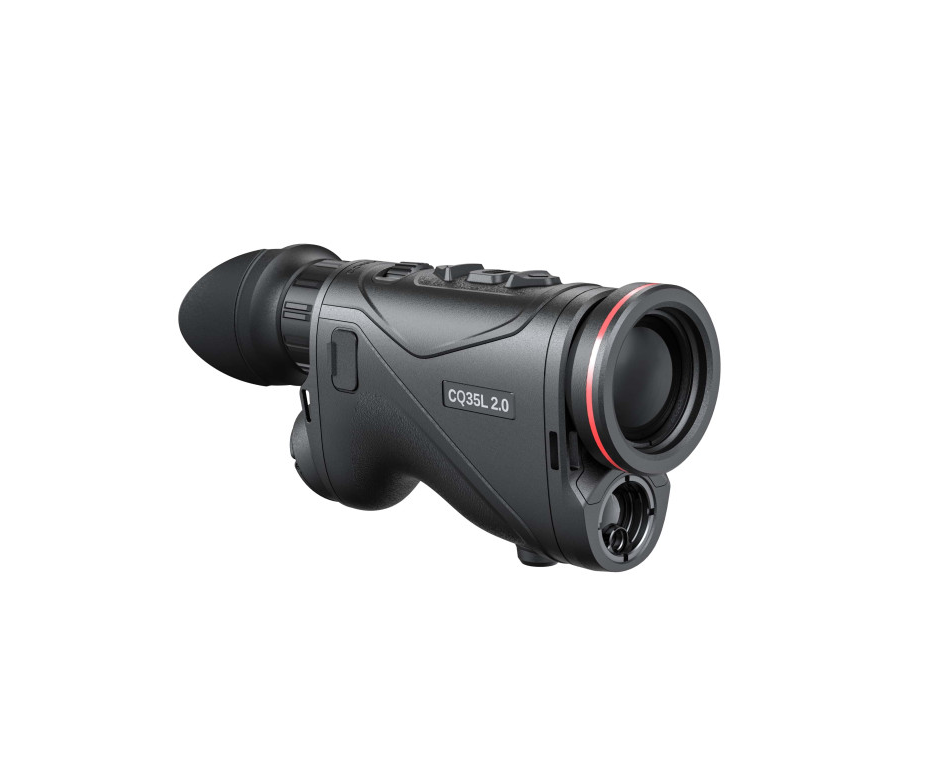

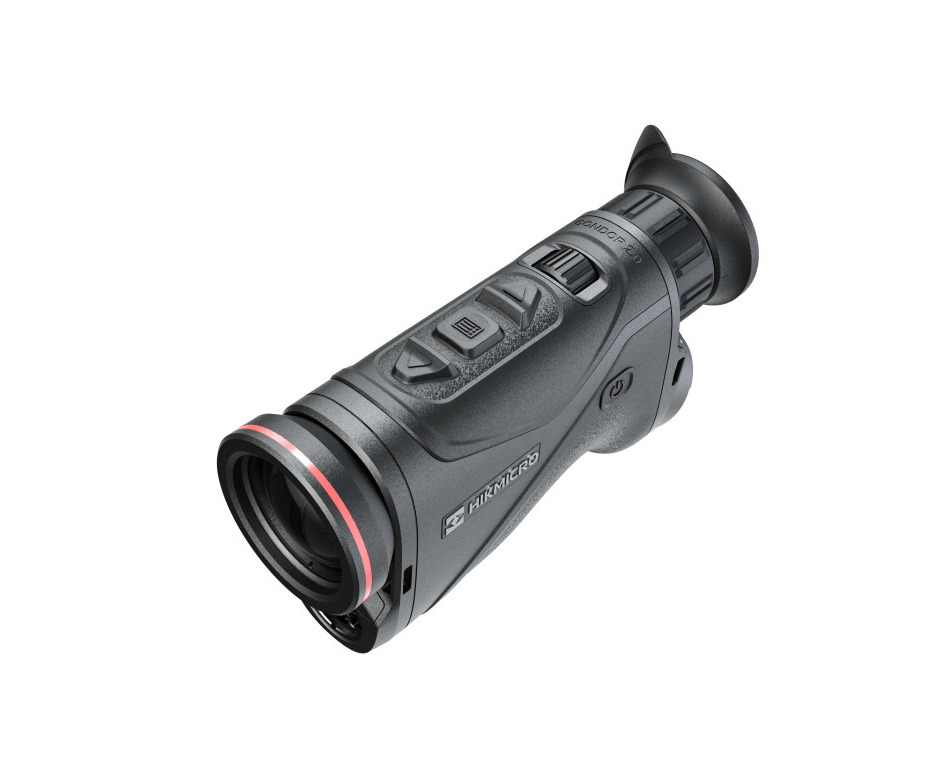

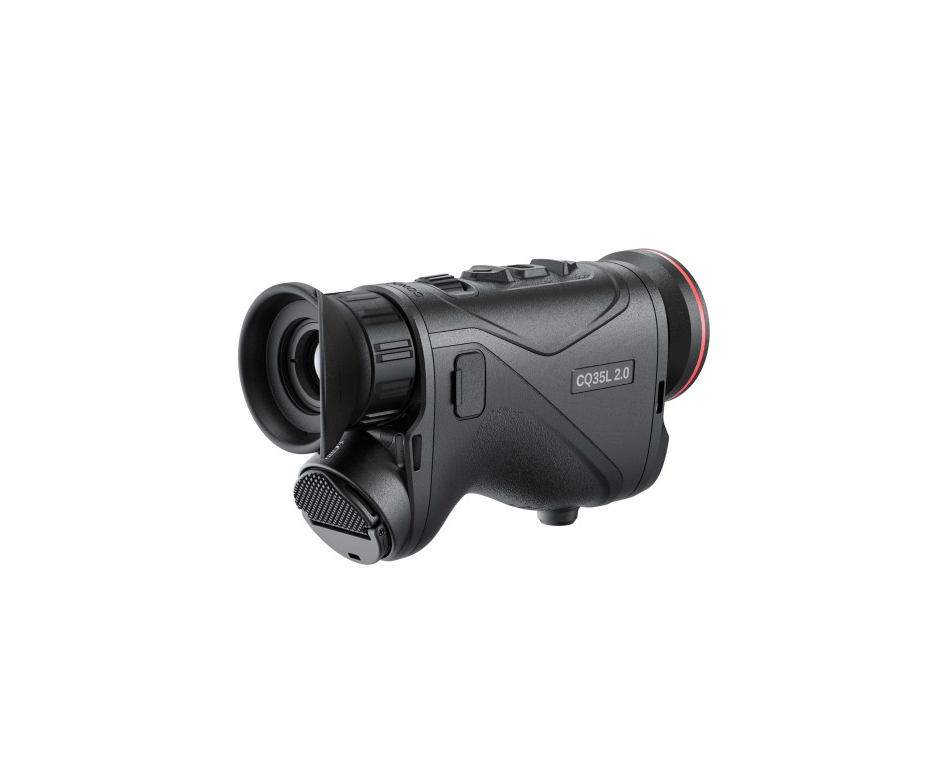

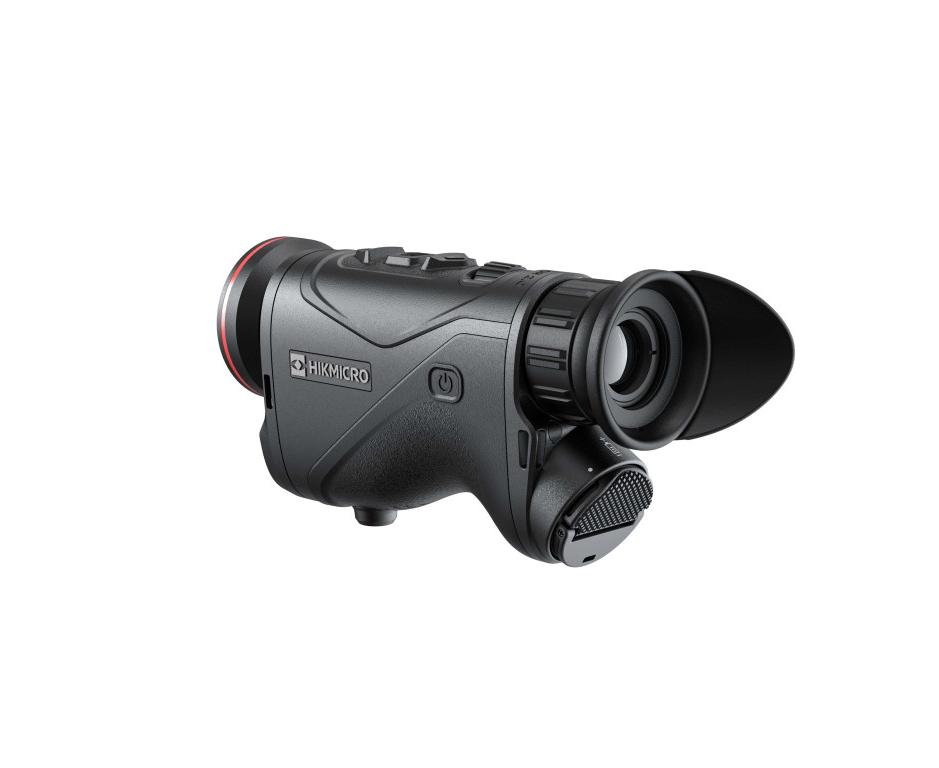

The HIKMICRO Condor 2.0 LRF is a compact, high-performance thermal monocular built for serious hunters. It features an advanced 640x512 thermal sensor with ultra-sensitive <15mK NETD, delivering crisp thermal images and fine detail even in the most challenging environments. The 35mm F1.0 lens and 1.9x base magnification provide a wide field of view and impressive detection range up to 1800 metres, ideal for both close and long-range spotting.
The integrated Laser Rangefinder (LRF) offers accurate distance measurement up to 1000m with ±1m precision, including horizontal distance, perfect for use in varied terrain. HIKMICRO’s Shutterless Image System (HSIS) eliminates image freeze, ensuring a smooth, uninterrupted viewing experience.
With Image Pro 3.0 and Zoom Pro algorithms, the Condor 2.0 enhances detail and sharpness during digital zoom, maintaining clarity for accurate target identification. The 0.49-inch OLED display with a high 1920x1080 resolution provides bright, detailed visuals and reduces eye fatigue during extended use.
Designed for field use, the Condor 2.0 supports intuitive, one-handed operation with a rear focus wheel and accessible buttons. The lightweight 458g body is compact and features a rubberised housing for a comfortable, secure grip.
Powered by a replaceable 21700 battery, the device offers up to 6.5 hours of continuous use and supports Type-C external power for extended outings. It can be carried in multiple ways, wrist strap, neck strap, or bag, for added convenience.
Capture photos and videos of your hunts and share them via the HIKMICRO Sight app. Combining cutting-edge thermal tech, precision rangefinding, and rugged usability, the Condor 2.0 is an essential companion for demanding hunting scenarios.
- Thermal ModuleVOx Uncooled Focal Plane Arrays
- Image Sensor640×512
- Max. Resolution640×512
- Frame Rate50Hz
- Pixel Interval12μm
- Response Waveband8μm to 14μm
- NETD (Thermal Sensitivity)<15mK (@25°C), F#=1.0
- Lens (Focal Length)35mm, F1.0
- Detection RangeUp to 1,800m
- Focus ModeRear Focus Wheel
- Field of View (H × V)12.5° × 10.0° (21.9m × 17.5m @100m)
- Min. Focusing Distance3.5m
- Magnification1.9x–15.2x (8x digital zoom)
- Image Display1920×1080, 0.49 inch, OLED
- Contrast AdjustmentYes
- Brightness AdjustmentYes
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil8mm
- Eye Relief15mm
- Dioptre (Range)-5D to +3D
- Tone AdjustmentCold, Warm
- Image Pro 2.0Yes
- Zoom ProYes
- HSIS (HIKMICRO Shutterless Image System)Yes
- Protection LevelIP67
- Weight458g with Battery
- Dimension179.2mm × 87.7mm × 64.5mm
- Working TemperatureFrom -30°C to +55°C (-22°F to +131°F); Humidity
- Wi-Fi2.4/5G WiFi Waveband
- Record VideoYes
- Capture SnapshotYes
- HotspotYes
- Standby ModeYes
- StorageBuilt-in Memory Module (64 GB)
- PIP (Picture-in-Picture)Yes
- Hot TrackYes
- Distance MeasurementYes
- Audio RecordingYes
- Local AlbumYes
- Power SupplyReplaceable and Rechargeable 21700 Li-ion Battery
- Battery Operating Time≥6.5h (@25°C, WiFi, Zoom Pro, LRF on)
- Type-C Power Supply5V DC, 2A (Supports External Power Supply, Direct Charging)
- Laser RangefinderYes
- Safety Class for LaserClass 1
- Wavelength905nm
- Max. Measuring Range1,000m
- Measurement Accuracy±1m
- Min. Measuring Range10m
