HIKMICRO HM-CQ50L2.0 Condor Pro LRF 2.0 50mm 640px Thermal Monocular
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

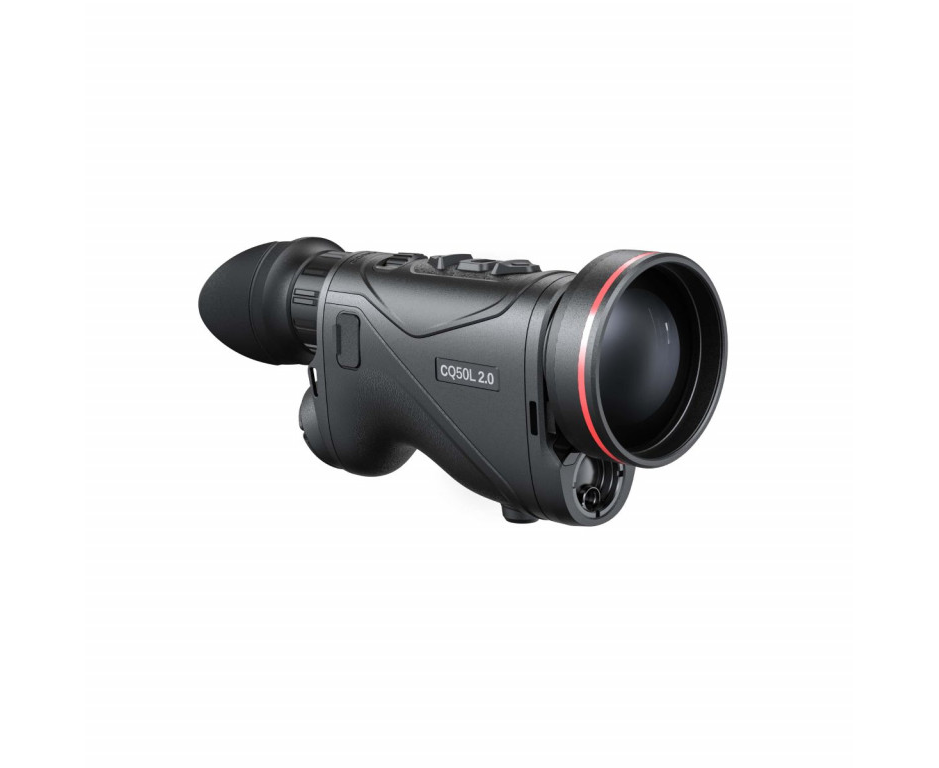

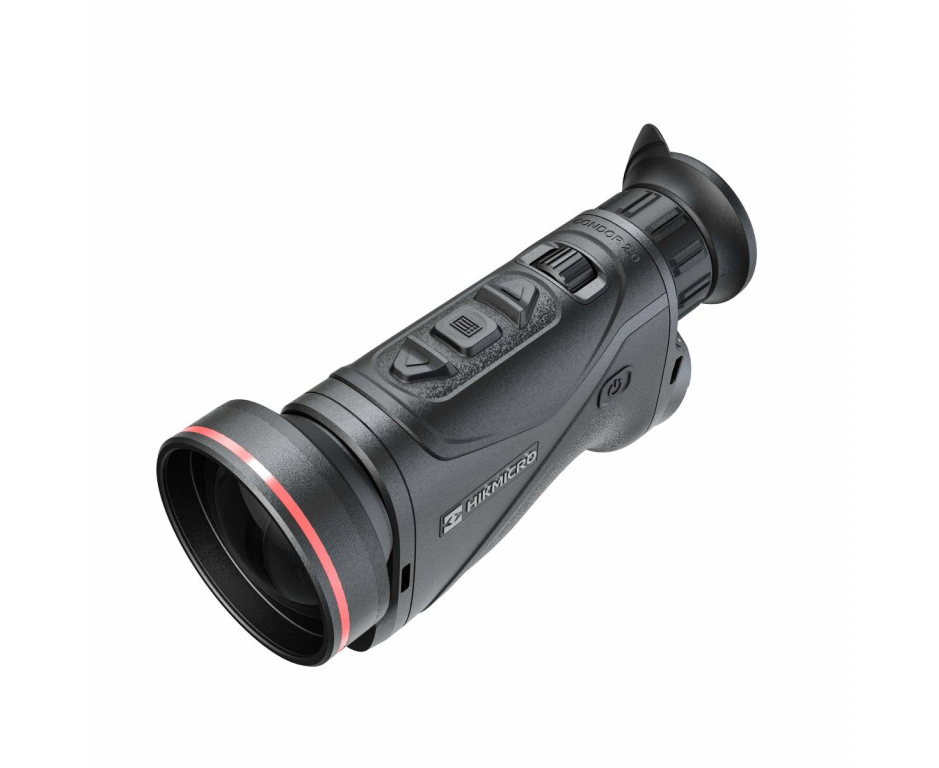

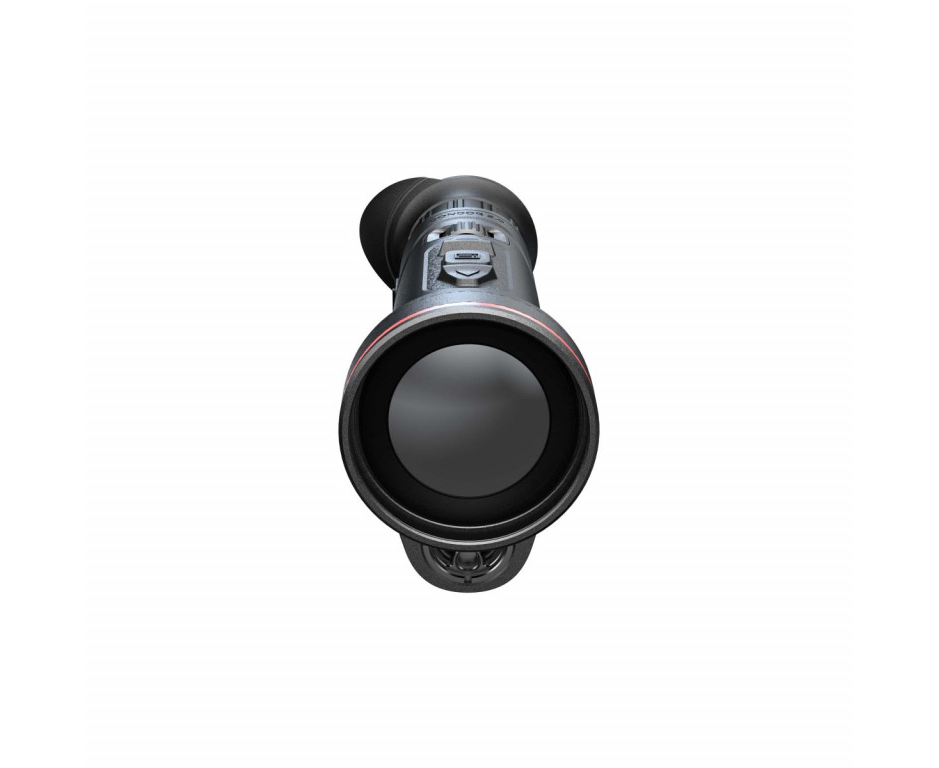

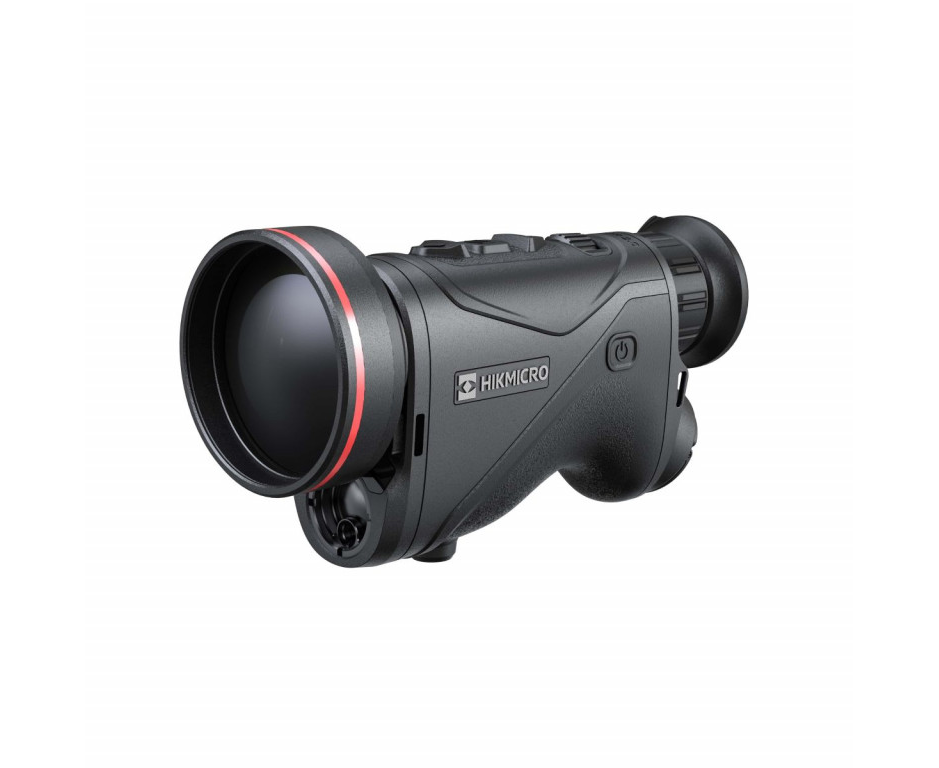

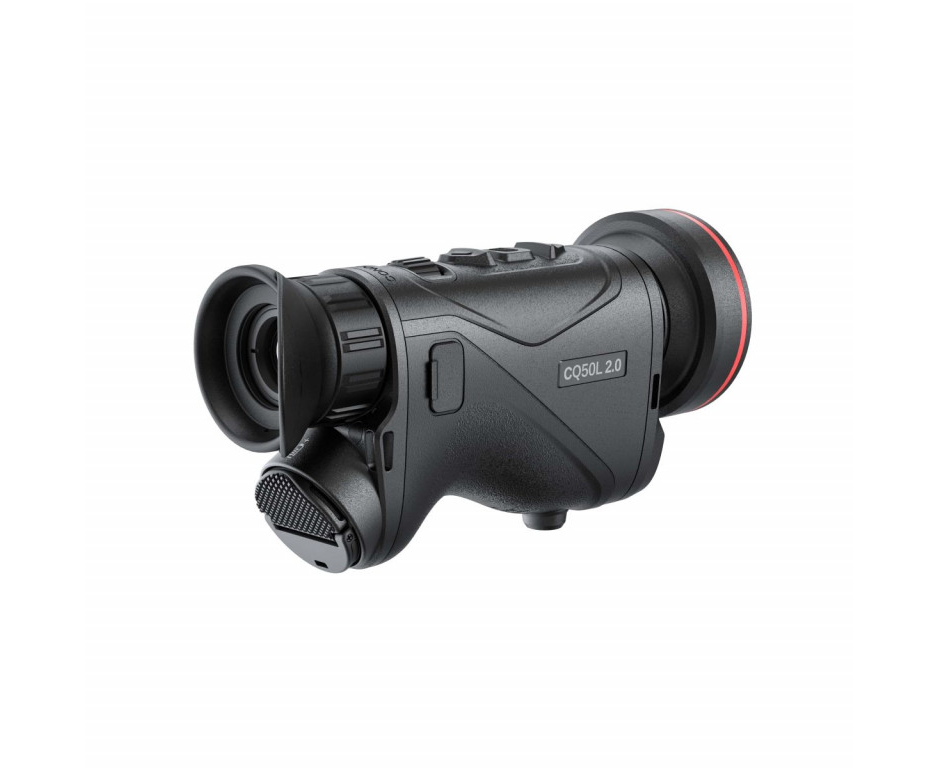

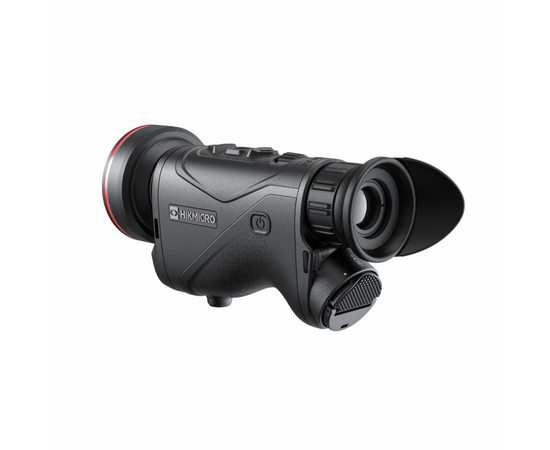

The HIKMICRO CONDOR LRF 2.0 handheld thermal monocular is a cutting-edge device designed to provide exceptional thermal imaging performance. Equipped with a 640 × 512 @12 μm thermal detector and an impressive NETD of less than 15 mK, it ensures precise detail detection even in challenging weather and lighting conditions. Its 0.49-inch 1920 × 1080 OLED display offers vivid visuals, while the innovative shutterless system (HSIS) ensures uninterrupted, smooth operation for an immersive viewing experience.
One of the standout features of the monocular is its integrated laser rangefinder, capable of accurate distance measurements up to 1000 meters. This makes it an essential tool for activities like hunting, birdwatching, wildlife observation, search-and-rescue operations, and marine navigation. Its cylindrical design enhances portability and usability, offering both a premium feel and ergonomic comfort.
The device’s powerful 50 mm F0.9 lens extends its detection range up to an impressive 2600 meters, making it suitable for various professional and recreational applications. With over 6.5 hours of continuous operation, powered by a replaceable and rechargeable 21700 battery, the monocular ensures long-lasting performance in the field. Weighing just 537 grams, the HIKMICRO CONDOR LRF 2.0 combines advanced technology with portability. It is the ideal solution for those seeking a reliable and versatile thermal imaging tool for demanding environments.
- Image SensorVOx Uncooled Focal Plane Array, 640x512 resolution
- Frame Rate50Hz
- Pixel Pitch12μm
- Spectral Range8–14μm
- NETD<15mK (@25°C, F#=1.0)
- Lens50mm, F0.9
- Detection RangeUp to 2,600m
- Focus ModeRear focus wheel
- Field of View8.7° x 7.0° / 15.2m x 12.2m @100m
- Minimum Focus Distance5.0m
- Magnification2.7x–21.6x (8x digital zoom)
- Display0.49" OLED, 1920x1080 resolution
- Eye Relief15mm
- Exit Pupil8mm
- Dioptre Adjustment-5D to +3D
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Protection LevelIP67
- Weight537g (with battery)
- Dimensions193mm × 71.5mm × 93.3mm
- Operating Temperature-30°C to +55°C
- StorageBuilt-in 64GB EMMC
- Wireless Connectivity2.4/5GHz Wi-Fi
- Battery TypeReplaceable 21700 rechargeable battery
- Battery Life≥6.5 hours (@25°C, Wi-Fi, Zoom Pro, LRF on)
- ChargingUSB-C, 5V DC 2A, supports external power supply
- Laser RangefinderClass 1, 905nm, up to 1,000m range, ±1m accuracy, 10m minimum
