HIKMICRO HM-FQ502.0 Falcon 2.0 50mm 640px Thermal Monocular
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

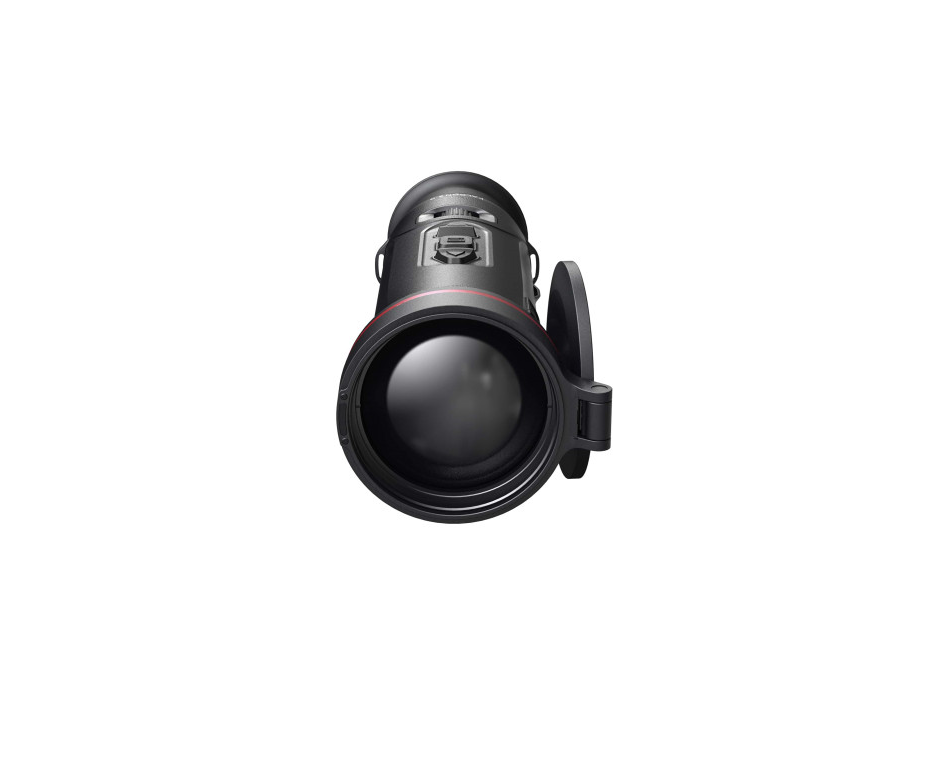

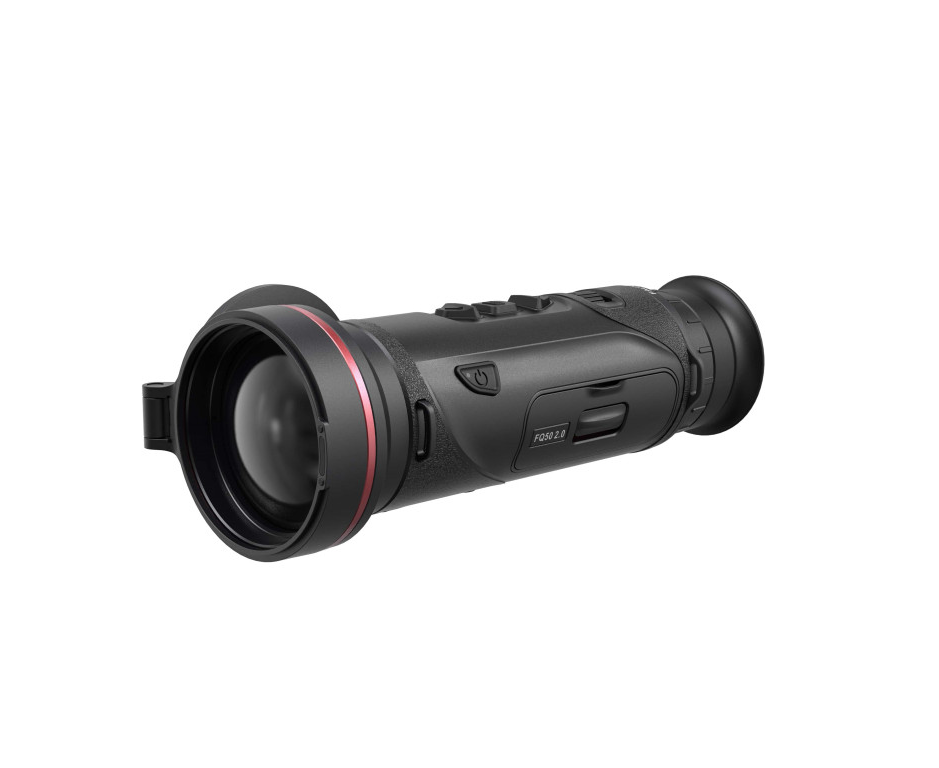

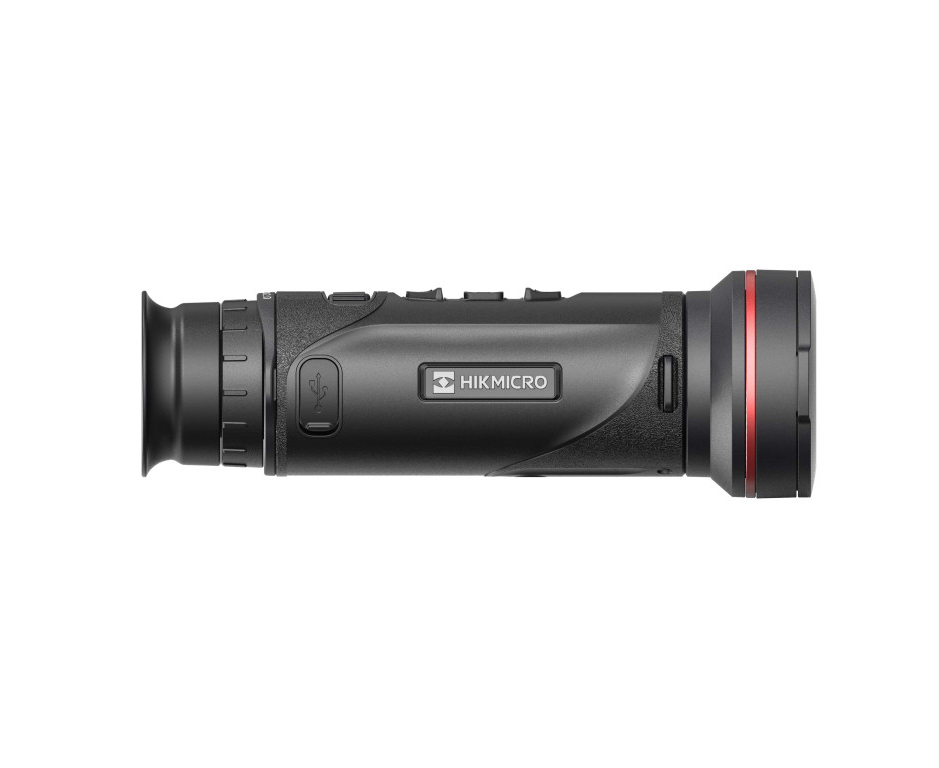

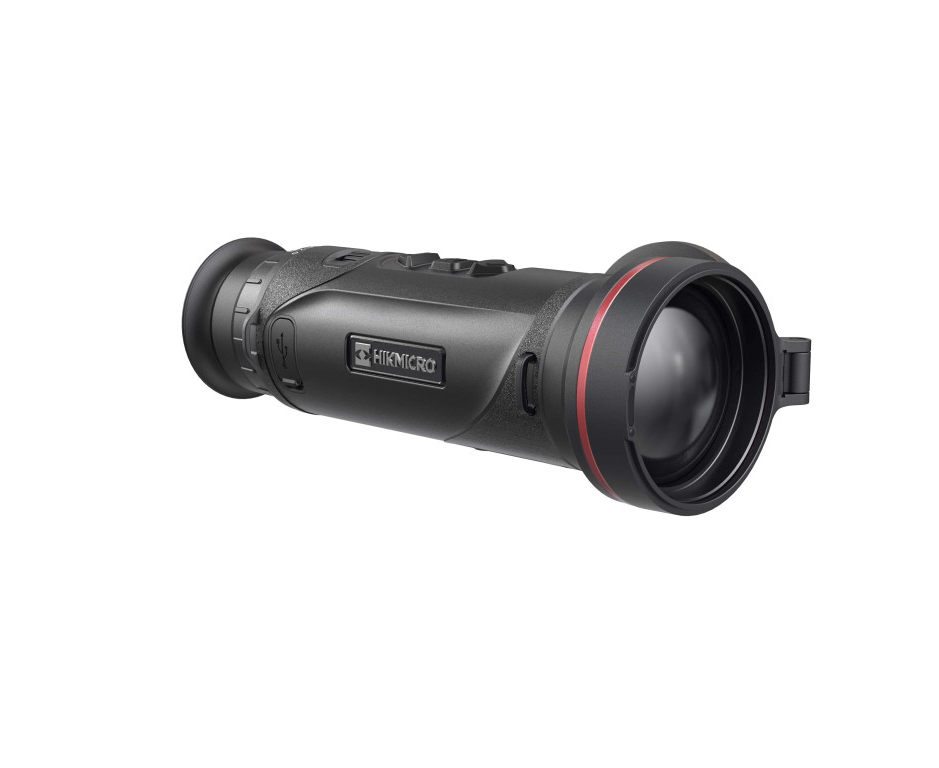

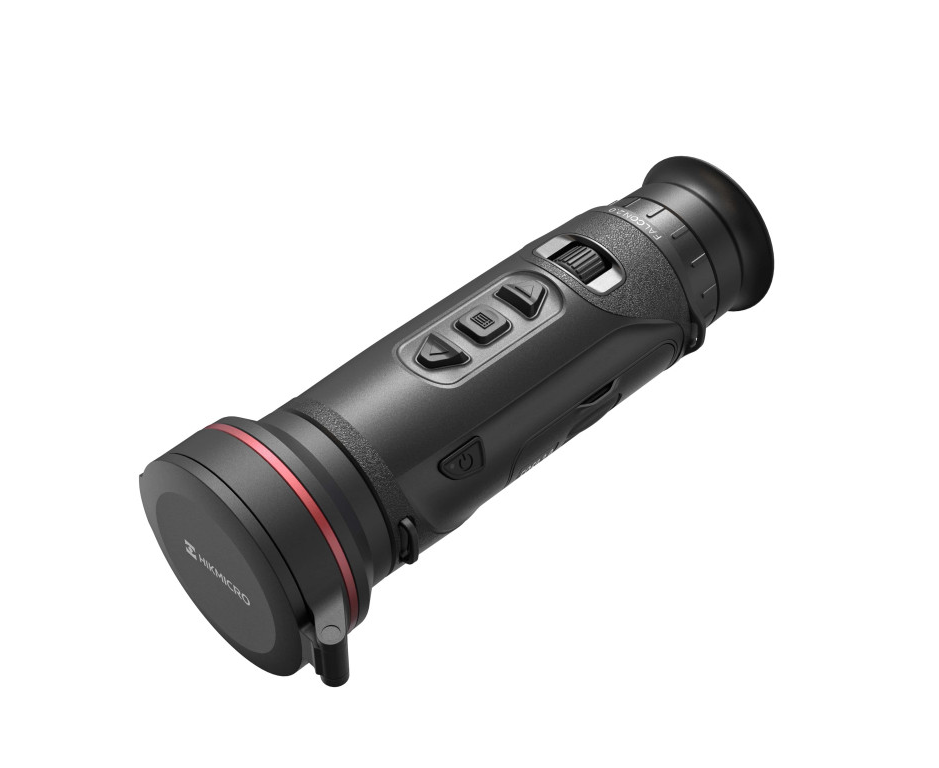

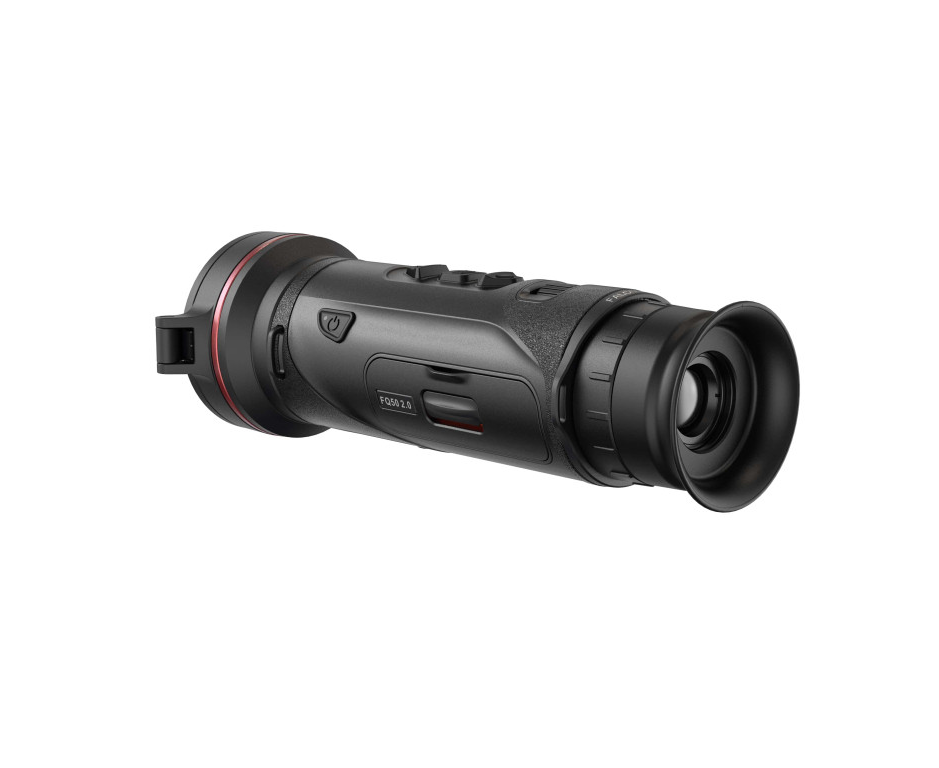

The HIKMICRO Falcon FQ50 2.0 is a next-generation thermal monocular built to deliver unparalleled performance, clarity, and user comfort, making it the ultimate choice for various hunting scenarios. Designed for both seasoned hunters and enthusiasts, this monocular features a high-performance 640x512 thermal sensor and an impressive 50mm F0.9 lens, ensuring exceptional thermal clarity, even in the most challenging conditions. Whether you're tracking game at night, in fog, or through dense brush, the FQ50 2.0 ensures you get the most detailed thermal imagery to make your hunting expeditions more effective and enjoyable.
With a 2.7x base magnification, this monocular strikes the perfect balance between magnification and field of view, enabling you to identify targets without losing track of the surrounding environment. It also offers an outstanding detection range of up to 2600 meters, allowing you to detect distant targets with ease. The advanced F0.9 aperture lens maximizes light transmission, offering superior image quality, especially in low-light environments. Whether it's a foggy morning or the dead of night, the FQ50 2.0's NETD <15mK thermal sensitivity provides exceptional image clarity, allowing you to identify subtle heat signatures and behavioural patterns with ease.
- Image SensorVOx Uncooled Focal Plane Arrays
- Max Resolution640x512
- Frame Rate50Hz
- Pixel Interval12μm
- Response Waveband8μm to 14μm
- NETDLess than 15mK (@25°C), F#=1.0
- Lens (Focal Length)50mm, F0.9
- Detection Range2600m
- Focus ModeRear Focus Wheel
- Field of View (H × V), Degrees / m @100m8.8° × 7.0° / 15.4m × 12.2m
- Min. Focusing Distance5.0m
- Magnification2.7x–21.6x (8x digital zoom)
- Display1920x1080, 0.49 inch, OLED
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil8mm
- Eye Relief15mm
- Dioptre Range-5D to +3D
- Tone AdjustmentCold, Warm
- Zoom ProYes
- HSISYes
- Protection LevelIP67
- Weight569.5g with Battery
- Dimensions205mm × 69.6mm × 82.9mm
- Operating Temperature / Humidity-30°C to 55°C (-22°F to 131°F); Humidity
- WiFi2.4/5G WiFi Waveband
- StorageBuilt-in 64GB memory
- Battery TypeReplaceable, rechargeable 21700 battery
- Battery Life≥6.5h (@25°C, WiFi & Zoom Pro on)
- Power Supply5V DC, 2A (Supports direct charging and external power supply)
