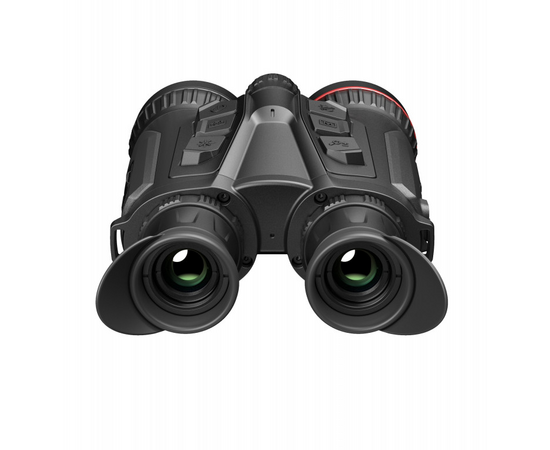

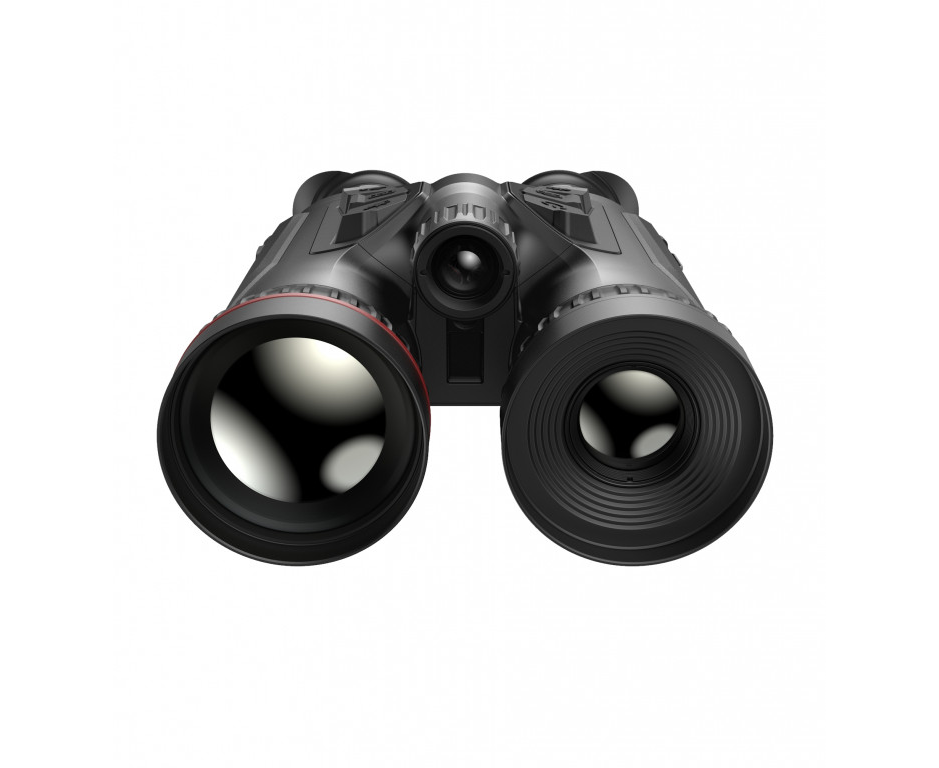

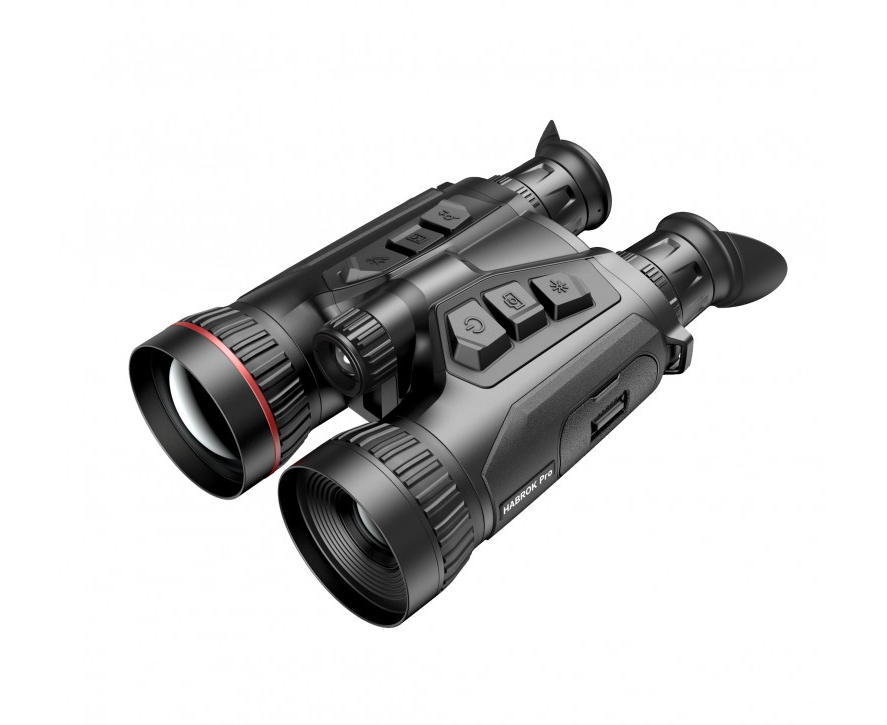

HIKMICRO Habrok Pro 1280px 60mm Multi-Spectrum Thermal Binocular
Loaded with cutting-edge technology, the latest generation HIKMICRO Habrok Pro thermal binoculars offer the detection power of high resolution thermal alongside the observation power of the latest 4K day & night camera – all in a compact and ergonomic binocular chassis. The HX60L is fitted with HIKMICROS new 1280px sensor which delivers an unbelievably detailed, high resolution thermal image.
Built around HIKMICRO’s incredible new 1280x1024px, Sub 18mK NETD sensor, the Habrok Pro redefines what is possible from a thermal binocular. The high resolution sensor delivers an unbelievably crisp and detailed image at base mag while also allowing you to use the digital magnification to zoom in without pixilation. This industry leading thermal sensor provides the detail you need to positively locate and identify animals, people or birds while also giving you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.
With the press of the button the Habrok switches to its 4K Day & Night camera to deliver a bright, vibrant, full colour image in daylight that allows you to view your surroundings in mind blowing detail. As twilight sets in and the ambient light drops the Habrok continues to shine with unparalleled light gathering capacity. The built in IR torch will activate in total darkness and the camera continues to deliver a high resolution, black and white image. New for the Habrok Pro is image stabilisation to minimise hand shake when observing at high magnification.

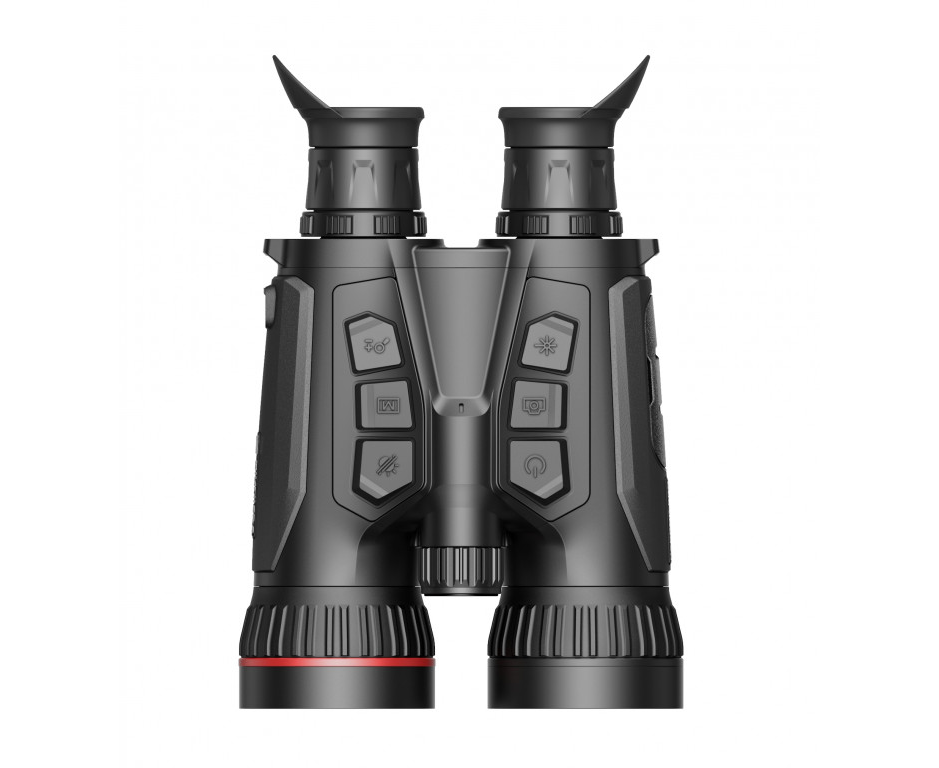

The eyepieces offer a wide and immersive viewing experience of the massive OLED display. You can quickly and easily adjust the interpupillary distance and focus so each eyepiece perfectly matches your eyes. The soft rubber eyecups can be folded back which makes it easy for glasses wearers and comfortable for extended periods of use.
The removable battery pack will power the Habrok Pro for up to 9 hours and there are two batteries supplied in the box so you can be confident that you will never be caught without power. The Habrok Pro is also supplied with HIKMICRO’s new binocular harness which makes the perfect way to carry your binoculars on adventures or a secure way to store them when not in use.
The Habrok Pro will also record and playback thermal and optical images, video and audio in its internal memory, and share it to nearby mobile devices via the dedicated HIKMICRO Sight App. Also on-board is 1000m laser range-finding, GPS and digital compass. The Habrok Pro is HIKMICRO’s new flagship device for many diverse applications, with unrivalled image detail, thermal sensitivity, performance and features.
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution1280 x 1024
- Frame Rate25Hz
- Pixel Interval12μm
- Response Waveband8μm to 14μm
- NETDLess than 18 mK (@25°C), F#=1.0
- Lens (Focal Length)60mm, F1.0
- Detection Range3100m
- Focus ModeFocus Ring
- Field of View (H × V), Degrees / m @100m14.6° × 8.8° / 25.6m x 15.4m
- Min. Focusing Distance3m
- Magnification2.6x-20.0x (7.7x)
- Optical Module Image Sensor1/1.8'' Progressive Scan CMOS
- Max. Resolution3840 x 2160
- Field of View (H × V), Degrees/m @100m7.3° x 4.1° / 12.6m × 7.2m
- Focal Length60mm, F2.2
- Min. Working Distance3m
- IR Illuminator Wavelength850nm
- Viewing Range at Night400m
- Magnification5.5x - 22.0x (4x)
- Focus ModeFocus Ring
- Smart IRYes
- Replaceable IR IlluminatorYes
- Image Display0.49 inch, OLED, 1920 ×1080
- Contrast AdjustmentYes
- Brightness AdjustmentYes
- PalettesThermal
- FFC (Flat Field Correction) ModeAuto, Manual, External Correction
- Exit Pupil8mm
- Eye Relief15mm
- Dioptre (Range)-5D~+3D
- Tone AdjustmentCold, Warm
- Zoom ProNo
- Image Pro 2.0Yes
- Protection LevelIP67
- Weight1050g with battery pack
- Dimension152.8mm × 81.95 mm × 231.5 mm (6.0" × 3.2" × 9.1")
- Working Temperature-30℃ ~ +55℃
- Interpupillary Adjustment Range60 mm to 74 mm
- Mounting Adapter1/4“-20-UNC
- Record VideoYes
- Capture SnapshotYes
- HotspotYes
- GPSYes
- Digital Magnetic CompassYes
- Standby ModeYes
- StorageBuilt-in EMMC (64 GB)
- PIPYes
- Hot TrackYes
- Audio RecordingYes
- Local AlbumYes
- Power SupplyReplaceable and Rechargeable Li-ion Battery Pack
- Battery TypeReplaceable and Rechargeable Li-ion Battery Pack
- Battery Operating Time9.5h (25 °C, with hotspot off, LRF on)
- Type-C Power Supply5V/9V DC, 3A
- Laser Rangefinder Safety ClassClass 1
- Wavelength905nm
- Max. Measuring Range1000m
- Measurement Accuracy±1m
- Min. Measuring Range10m
