HIKMICRO HM-LE153.0 Lynx 3.0 15mm 256px Sub 20mk Smart Thermal Monocular
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

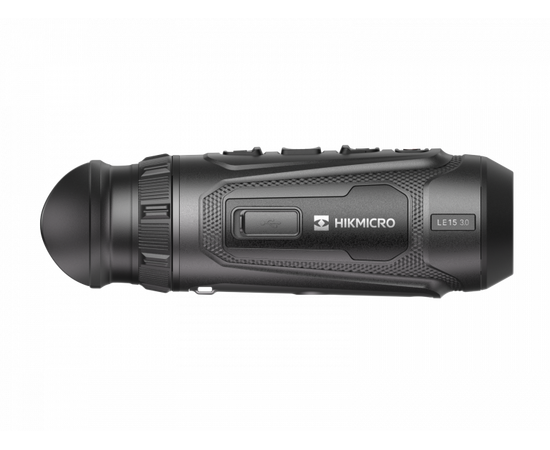

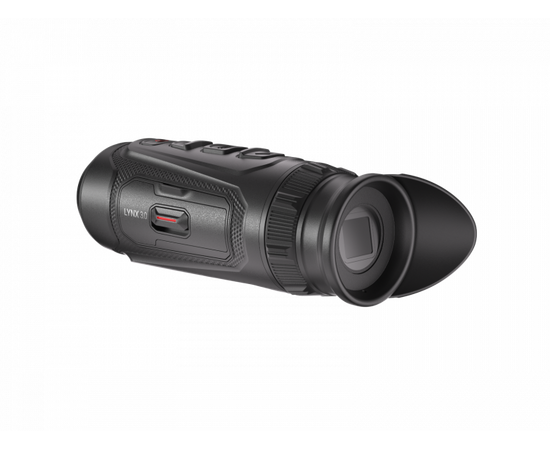

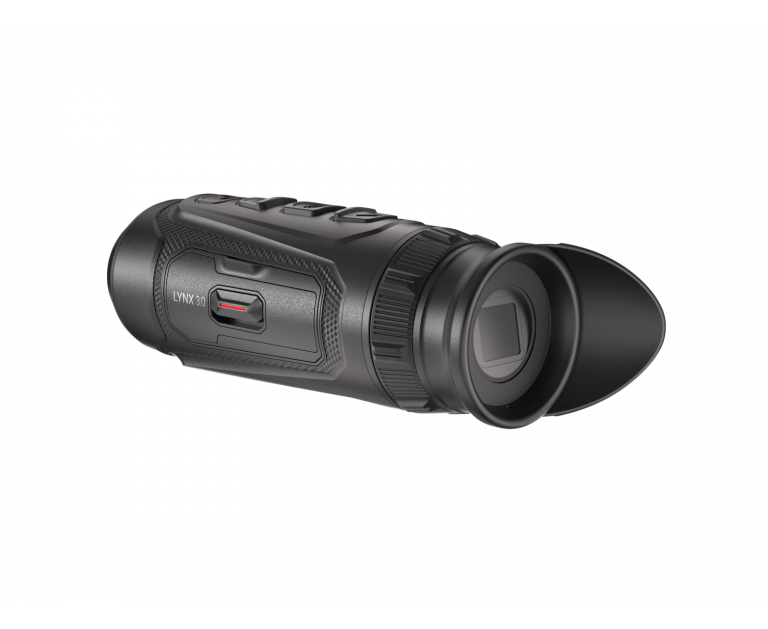

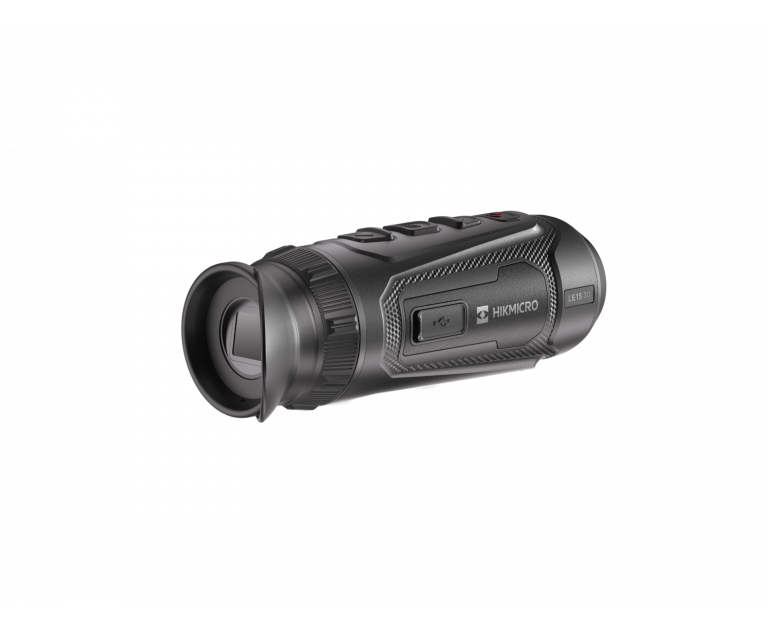

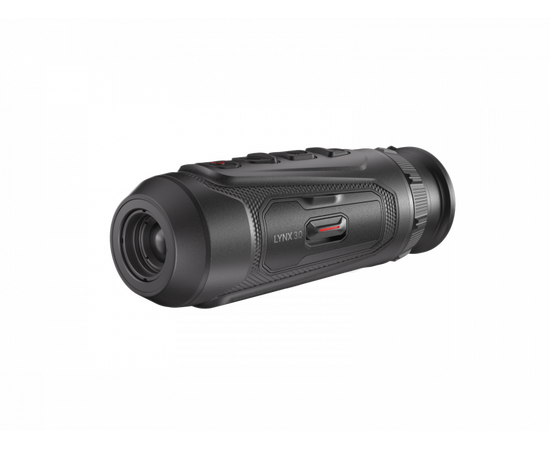

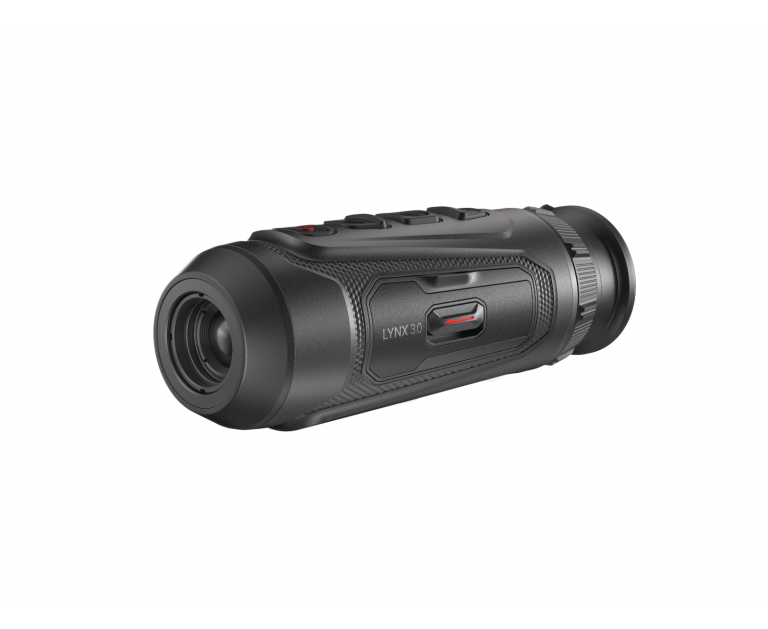

The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LE15 delivers powerful thermal performance in a compact, affordable form. With a 256x192 thermal detector and a 15mm F1.0 lens, it offers 2.2x base magnification, an 11.7° field of view, and a detection range up to 750 metres, making it ideal for outdoor professionals and enthusiasts.
The LE15 integrates AI-powered Image Pro 3.0 and Zoom Pro algorithms to deliver refined clarity and accuracy across all conditions. Its HSIS shutterless imaging system provides fluid, noise-free visuals , essential for discreet operations or wildlife monitoring. Designed to perform in any environment, this unit maintains exceptional reliability and image quality under pressure.
Weighing only 296.5 grams, the LE15 is built for comfort and portability. The replaceable 18650 battery offers up to 5.5 hours of use at -20°C, ensuring sustained field performance. For users seeking efficiency, durability, and precision, the LE15 3.0 is the go-to compact thermal monocular.
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution256 × 192
- Frame Rate50 Hz
- Pixel Interval12 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 20 mK (@25°C), F#=1.0
- Lens (Focal Length)15 mm, F1.0
- Focus ModeFocus Free
- Min. Focusing Distance7 m
- Magnification2.2 × - 17.6 × (8×)
- Field of View (H × V), Degrees / m @100 m11.7° × 8.8° / 20.5 m × 15.4 m
- Detection Range750 m
- Display1024 × 768, 0.39 inch, AMOLED
- Contrast AdjustmentYes
- Brightness AdjustmentYes
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil6 mm
- Eye Relief20 mm
- Diopter (Range)-5 D to +3 D
- Tone AdjustmentCold, Warm
- Zoom ProYes
- HSIS (HIKMICRO Shutterless Image System)Yes
- Image Pro 3.0Yes
- Sync ProYes
- Battery TypeReplaceable and rechargeable 18650 battery
- Protection LevelIP67
- Weight296.5 g
