HIKMICRO HM-LH35-2.0 Lynx 384x288 12um Smart Thermal Monocular
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

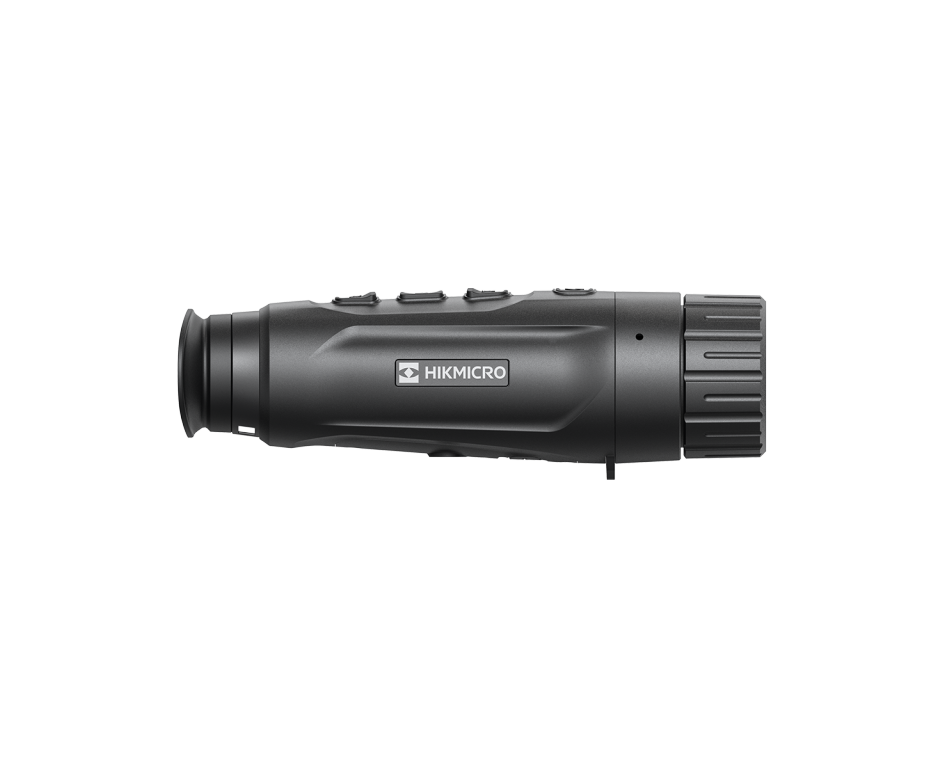

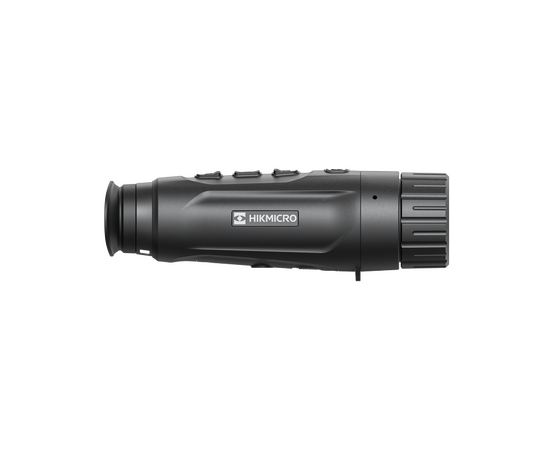

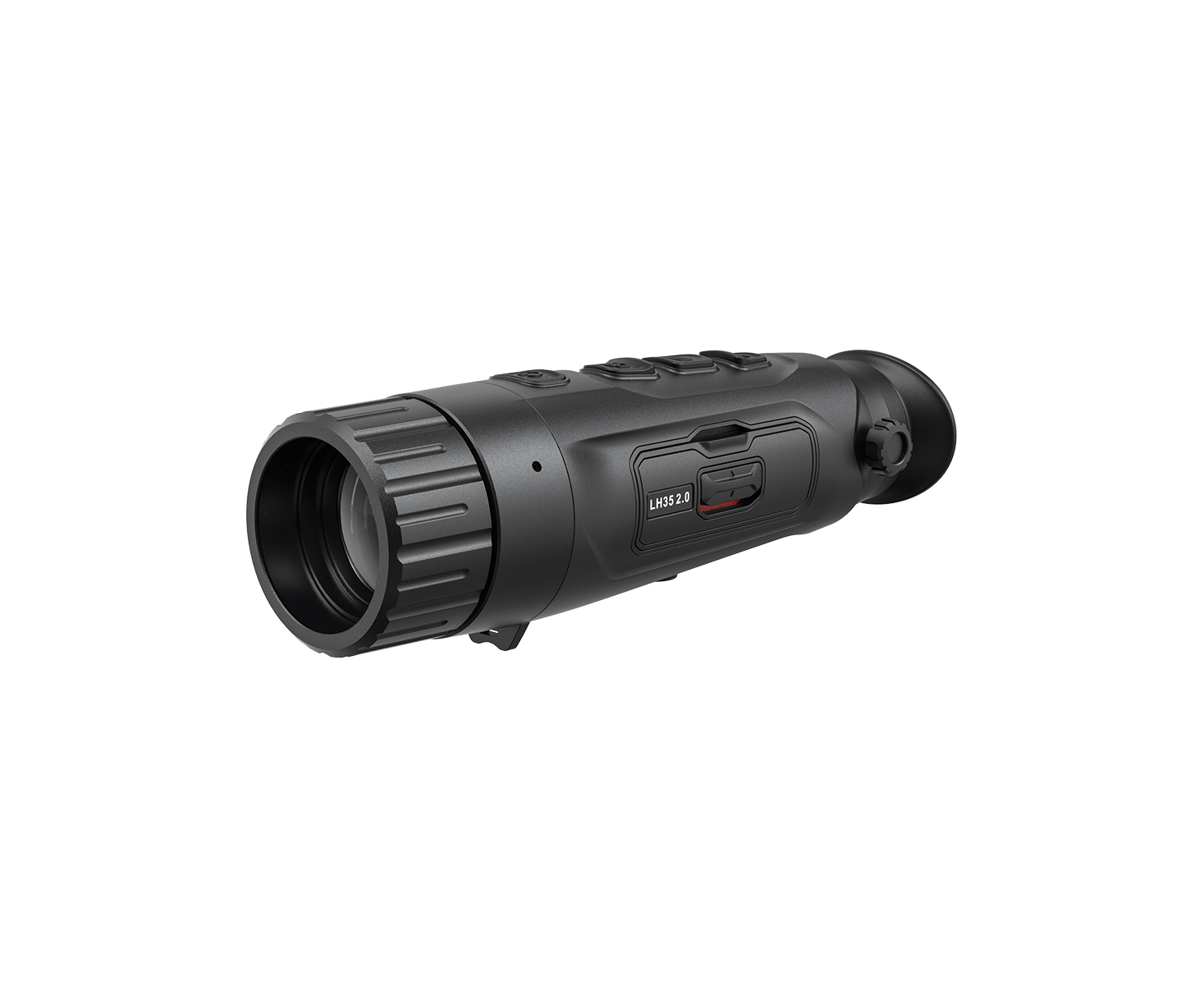

Introducing the Lynx 2.0 35mm 384px, a cutting-edge handheld thermal imaging device. Its 35mm focal length and advanced Sub 20 mK NETD sensor deliver sharp, detailed imaging, even from a distance. Compact and robust, it features a magnesium-alloy chassis, removable 6.5-hour battery, ergonomic controls, and a glove-friendly focus ring. Offering up to 19.2x zoom, four thermal colour palettes, WiFi connectivity, and photo/video recording via the HIKMICRO Sight App, it’s ideal for wildlife observation, search and rescue, and security applications
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution384 × 288
- Frame Rate50 Hz
- Pixel Interval12 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 20 mK (@25°C), F# = 1.0
- Lens (Focal Length)35 mm, f1.0
- Focus ModeManual Focus
- Detection Range1800 m
- Min. Focusing Distance3.5 m
- Magnification3.3x to 26.4x (8x)
- Field of View(H × V), Degrees/ m @100m7.5° × 5.7°/ 13.1 m×10.0 m
- Display1024 × 768, 0.39 inch, OLED
- PalettesBlack Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) ModeAuto, Manual, External Correction
- Exit Pupil6 mm
- Eye Relief20 mm
- Diopter (Range)-5 D to +3 D
- Brightness AdjustmentYes
- Tone AdjustmentCold, Warm
- Contrast AdjustmentYes
- Record VideoYes
- Capture SnapshotYes
- Audio RecordingYes
- Standby ModeYes
- Storage Built-in EMMC16 GB
- PIP (Picture-in-Picture)Yes
- HotspotYes
- Hot TrackYes
- Distance MeasurementYes
- TypeReplaceable and Rechargeable Li-ion Battery
- Battery Operating Time6.5-hour continuous running with CVBS and hotspot function off (@25°C)
- Type-C Power Supply5VDC, 2 A
- Supports External Power SupplyYes
- Protection LevelIP67
- Dimension193.0 mm × 56.0 mm× 62.0 mm
- Weight338 g without battery
- Working Temperature-30°C to +55°C
