HIKMICRO HM-TP94-Q/W-SP40-L19 SP Series 480 x 360 Pixels Handheld Thermal Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

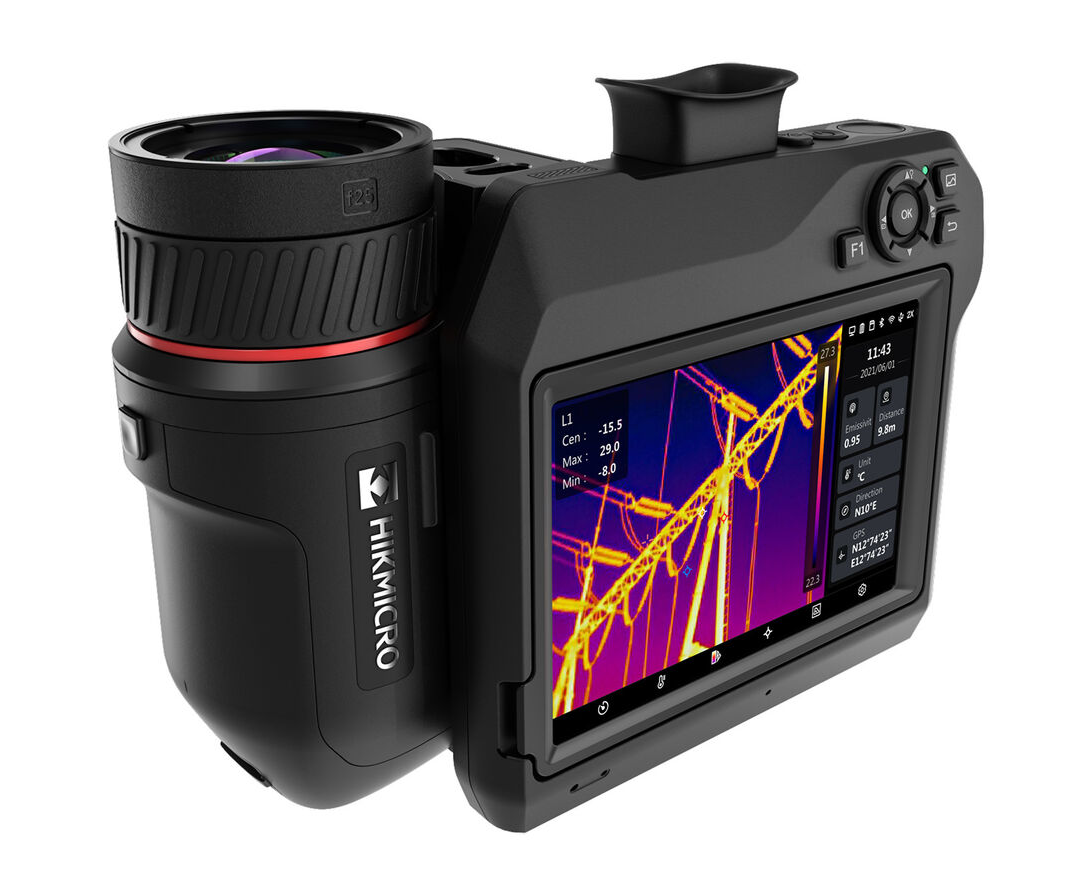

The HIKMICRO SP40-L19 is a high-performance handheld thermal imaging camera designed for industrial, predictive maintenance, electrical, and mechanical inspections. It features a 480 × 360 resolution (172,800 pixels) thermal detector, with Super Resolution up to 960 × 720 pixels, ensuring clear and precise imaging. With a temperature range of -20°C to 650°C, the SP40-L19 delivers accurate and reliable temperature readings for various applications.
The SP40-L19 offers multiple focus modes, including Laser-Assisted Auto Focus (AF), Continuous AF, Manual Focus, and Touch AF, allowing for versatile and precise imaging. The built-in GPS and compass, Wi-Fi, HDMI output, and a laser rangefinder make it an ideal tool for field inspections.
The 5-inch LCD touchscreen (1280 × 720 resolution) with adjustable brightness, combined with an 8MP visual camera, enables easy image comparison and documentation. The IP54-rated durable design, interchangeable battery, and 4-hour continuous operation ensure long-lasting performance in demanding environments.
Key Features:
- Infrared resolution: 480 × 360 (172,800 pixels), Super Resolution: 960 × 720 (691,200 pixels)
- NETD: < 30 mK (@ 25°C, F# = 1.0) for high sensitivity
- Temperature measurement range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: Max. (±2°C/±3.6°F, ±2%)
- Field of View (FoV): 18.7° × 14°
- Multiple focus modes: Laser-Assisted AF, Continuous AF, Manual Focus, Touch AF
- Digital zoom: 1.0x to 12.0x continuous
- Measurement tools: Center Spot, Hot Spot, Cold Spot, and user-definable spots, lines, rectangles, and circles
- Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Image modes: Thermal, Visual, Fusion, PIP (Picture-in-Picture), Blending
- 8MP visual camera for high-quality image overlay
- Laser distance meter: Indoor: up to 50m (164 ft), Outdoor: up to 10m (33 ft)
- Video recording: MP4 and radiometric video with 64-hour storage capacity
- Storage: 64GB removable SD card (up to 60,000 images)
- Connectivity: Wi-Fi (2.4 GHz & 5 GHz), Bluetooth 4.2, USB Type-C, HDMI-D
- Durability: IP54-rated protection, drop-tested from 1m (3.28 ft), vibration and shock-resistant
- Battery: Interchangeable and rechargeable Li-ion, 4-hour continuous operation, 2.5-hour charging time
- Weight: Approx. 1451g (3.2 lb)
- Tripod mounting: UNC ¼”-20
