HIKMICRO HM-TP94-Q/W-SP40-L37 SP Series Handheld Thermography Camera (480 x 360px; -20°C~650°C; 1.35 mrad)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

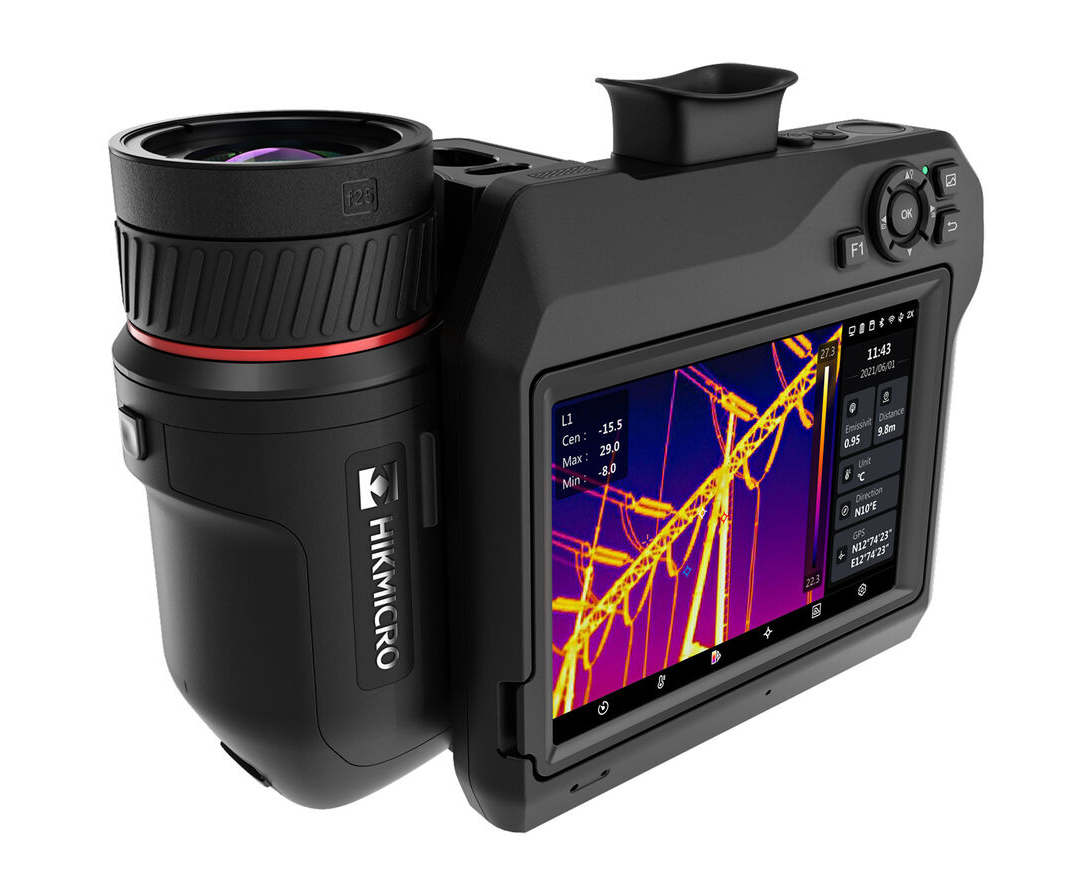

The HIKMICRO SP40-L37 is a high-performance handheld thermal imaging camera designed for industrial inspections, predictive maintenance, oil and gas, and utility inspections. With a thermal resolution of 480 × 360 pixels and a super-resolution mode of 960 × 720 pixels, it delivers clear and precise thermal imaging. The camera features a wide field of view (37.3° × 27.8°) and a highly sensitive infrared detector (NETD < 30 mK), allowing for accurate temperature measurements in a range of -20°C to 650°C.
Equipped with a 5-inch LCD touchscreen display, a 1024 × 768 OLED viewfinder, and multiple focus modes including Laser Assisted Auto Focus, Manual Focus, and Touch AF, the SP40-L37 offers maximum flexibility and ease of use. The integrated GPS, Wi-Fi, Bluetooth, and HDMI output enable seamless data transfer and remote monitoring. The camera also includes an 8 MP visible camera for dual imaging capabilities, a built-in LED light, and a rechargeable battery with up to 4 hours of continuous operation.
Key Features:
- Thermal Resolution: 480 × 360 (172,800 pixels), Super Resolution: 960 × 720 (691,200 pixels)
- NETD: < 30 mK (@ 25°C, F# = 1.0)
- Temperature Range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: ± 2°C/3.6°F or ± 2%
- Field of View (FOV): 37.3° × 27.8°
- Focus Modes: Laser Assisted AF, Continuous AF, Manual Focus, Touch AF
- Display: 5-inch LCD touchscreen (1280 × 720 resolution) & 1024 × 768 OLED viewfinder
- Digital Zoom: 1.0x to 12.0x continuous
- Measurement Tools: Center Spot, Hot/Cold Spot, User-Definable 10 Spots, 1 Line, 5 Rectangles, and 5 Circles
- Image Modes: Thermal, Visual, Fusion, PIP, Blending
- Connectivity: GPS, Wi-Fi, Bluetooth 4.2, HDMI, USB Type-C
- Storage: 64 GB removable SD card (up to 60,000 images)
- Battery Life: Up to 4 hours of continuous use
- Rugged Design: IP54-rated, drop-resistant up to 1m
