HIKMICRO HM-TP96-Q/W-SP60-L12/50 SP Series SP60 – High-Resolution Handheld Thermal Imaging Camera (640 × 480)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

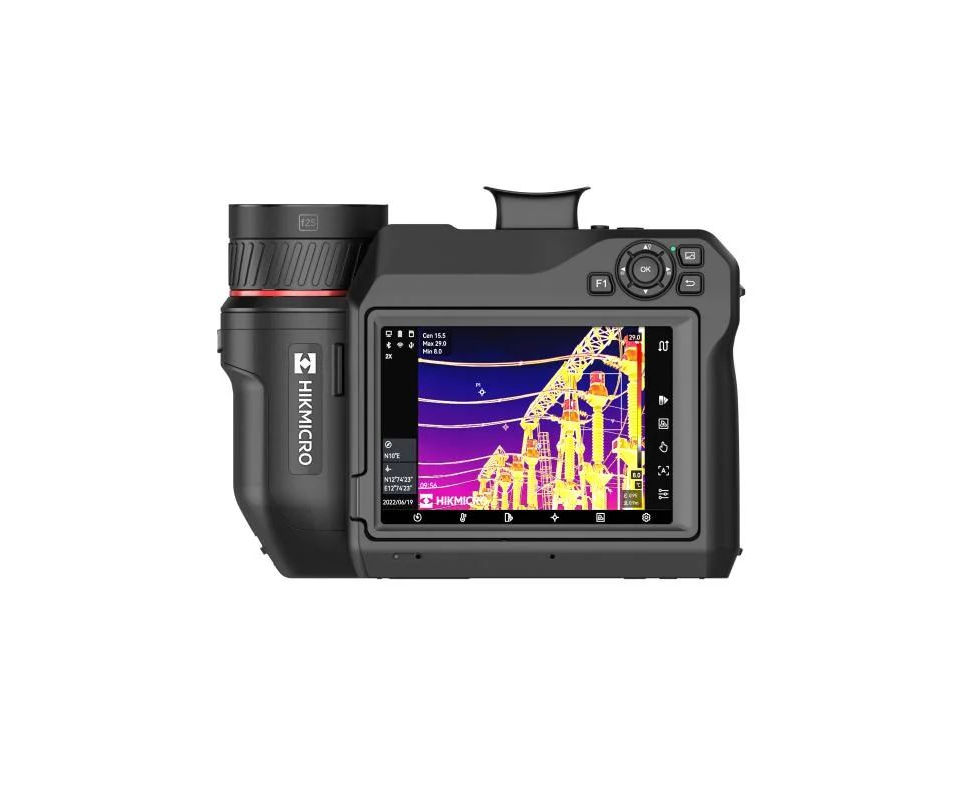

The HIKMICRO SP60 is a high-performance handheld thermal imaging camera designed for industrial, predictive, oil and gas, and utility maintenance inspections. It features a 640 × 480 high-resolution VOx thermal detector with a NETD < 30 mK, providing exceptional image clarity and precision. The camera supports a temperature range of -20°C to 650°C (-4°F to 1202°F), making it ideal for various industrial applications.

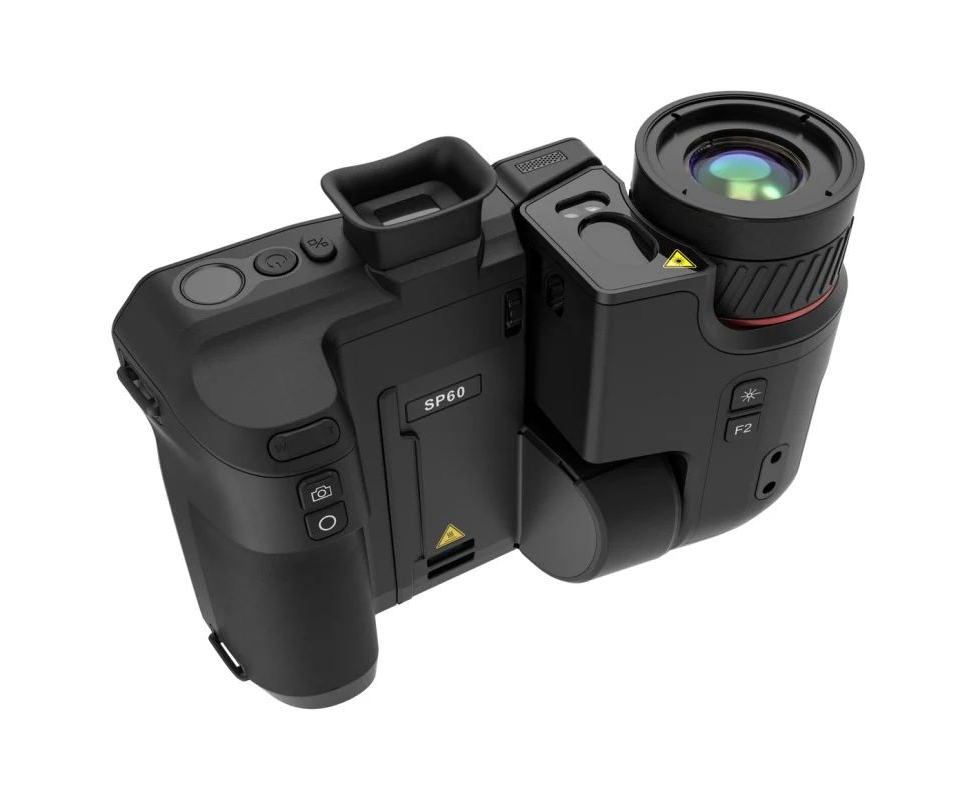

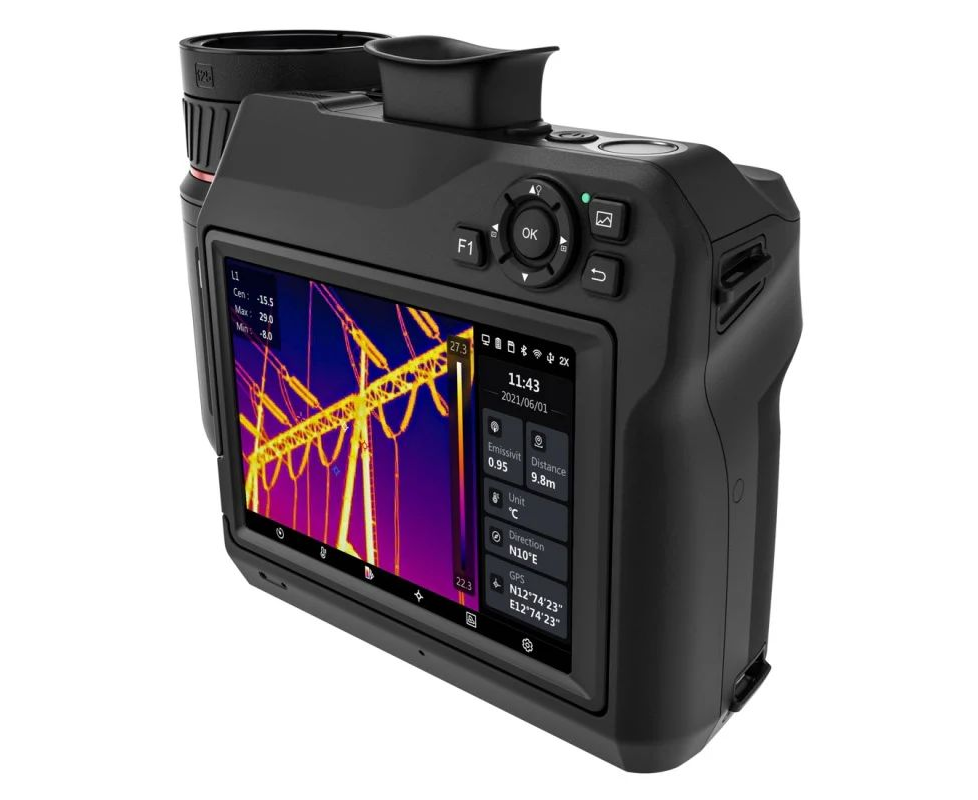

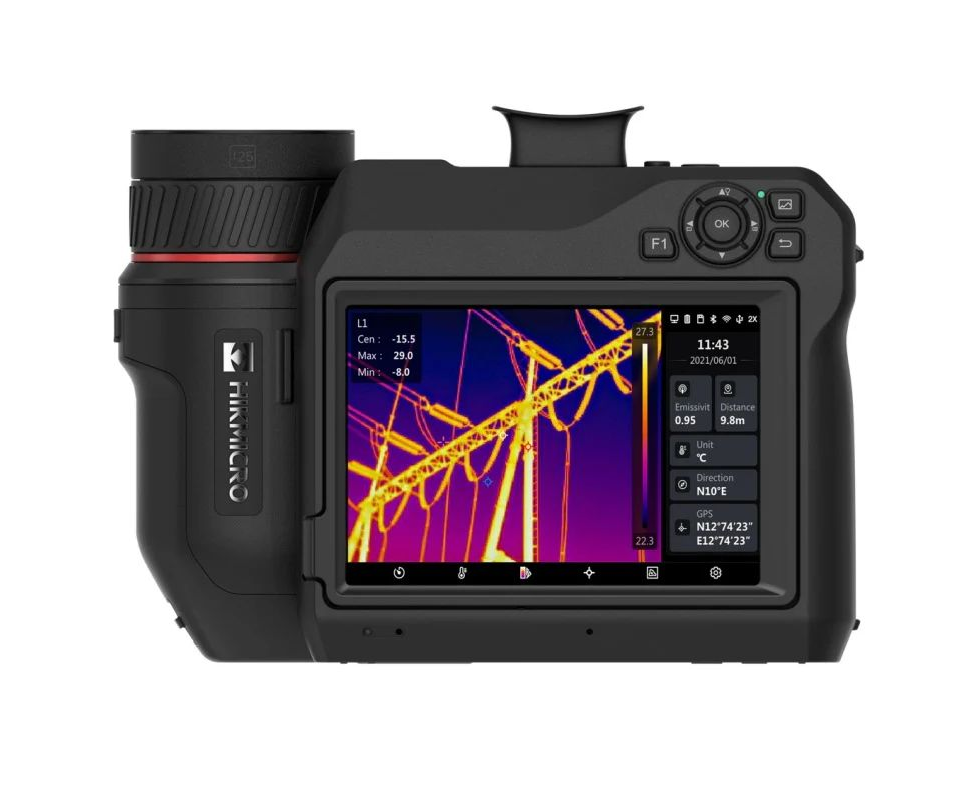

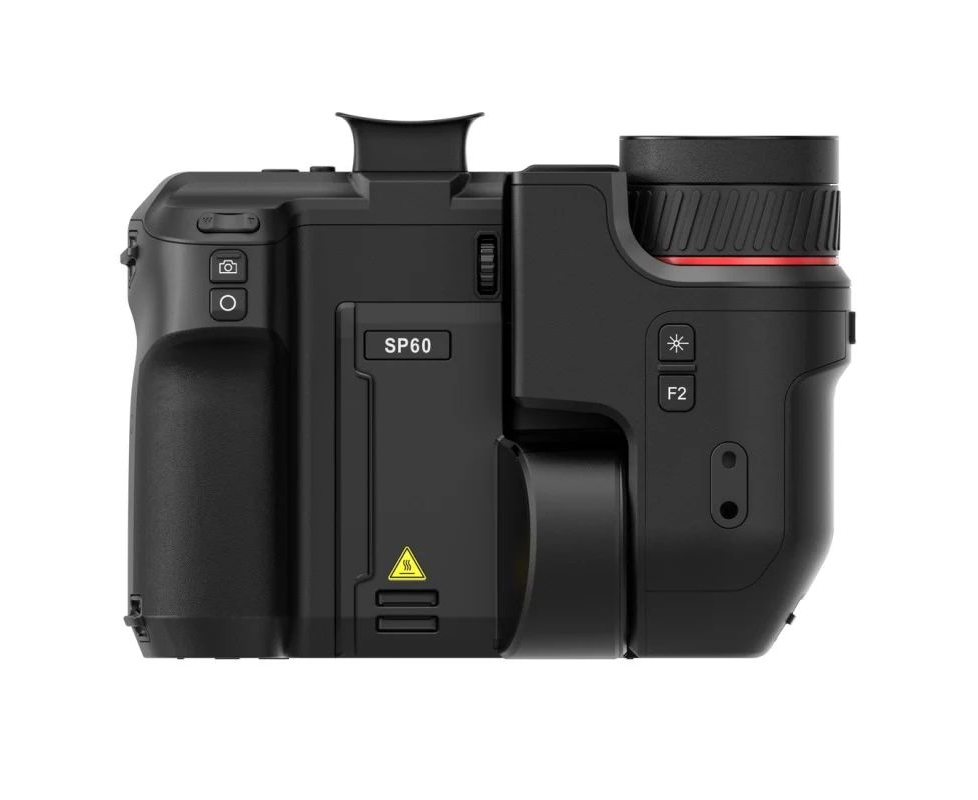

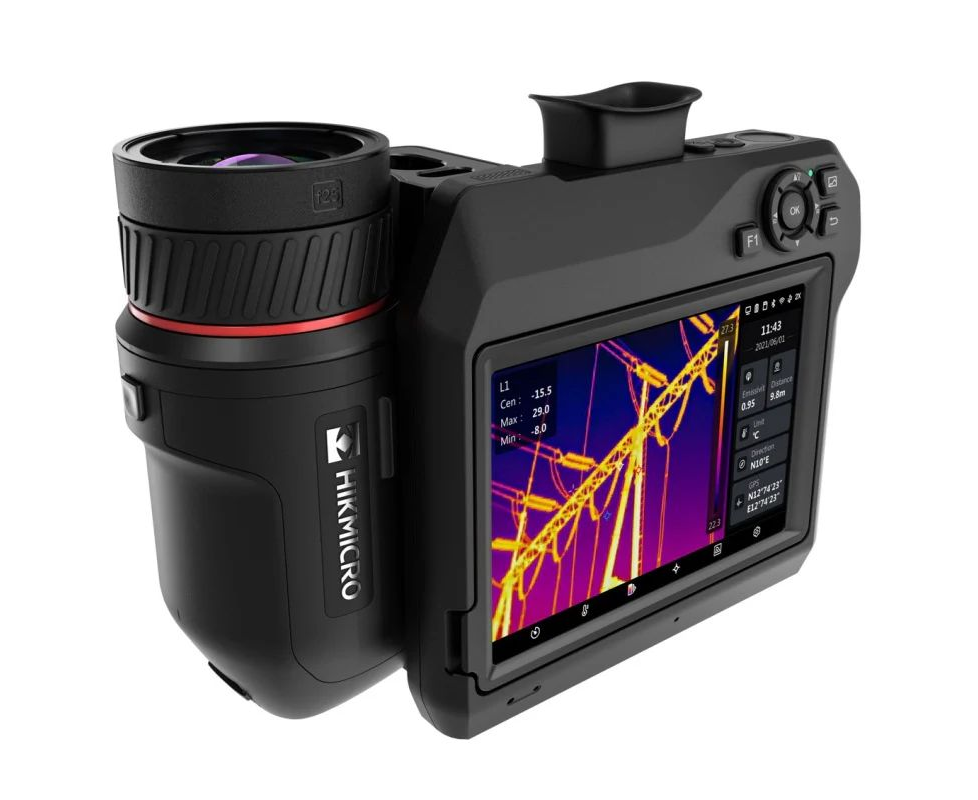

Designed for ease of use, the SP60 features a 90° rotating touchscreen and a 180° rotating lens, allowing flexible viewing angles. The 1024 × 768 OLED electronic viewfinder and 5-inch auto-brightness LCD display ensure clear visibility even in bright outdoor conditions. The camera also offers continuous digital zoom from 1× to 12× for capturing fine details.
The SP60 supports multiple focus modes, including manual, continuous autofocus, autofocus, and laser-assisted focus, enabling fast and precise imaging. Advanced features such as GPS and compass annotations help document location-based inspections, while Wi-Fi connectivity allows easy data transfer via the HIKMICRO Viewer App or HIKMICRO Analyzer software for in-depth analysis and report generation.
Key Features:
- 640 × 480 thermal resolution (307,200 pixels)
- NETD < 30 mK for high sensitivity and detailed thermal imaging
- Temperature measurement range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: Max (±2°C/3.6°F, ±2%)
- 90° rotating screen and 180° rotating lens for flexible viewing angles
- 1024 × 768 OLED electronic viewfinder with auto-brightness 5-inch LCD touchscreen display
- 1× to 12× continuous digital zoom for enhanced image detail
- Four focus modes: Manual, continuous autofocus, autofocus, and laser-assisted focus
- GPS & compass annotations for location and direction tracking
- 1-Tap Level and Span adjustment for instant image optimization
- 25 Hz image frequency for smooth thermal imaging
- Up to 4 hours of continuous operation on a rechargeable battery
- Wi-Fi and Bluetooth connectivity for easy data transfer and remote access
