HIKMICRO HM-TP96-Q/W-SP60-L12 SP60-L12 SP Series Handheld Thermal Imaging Camera – 640 × 480 Pixels
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

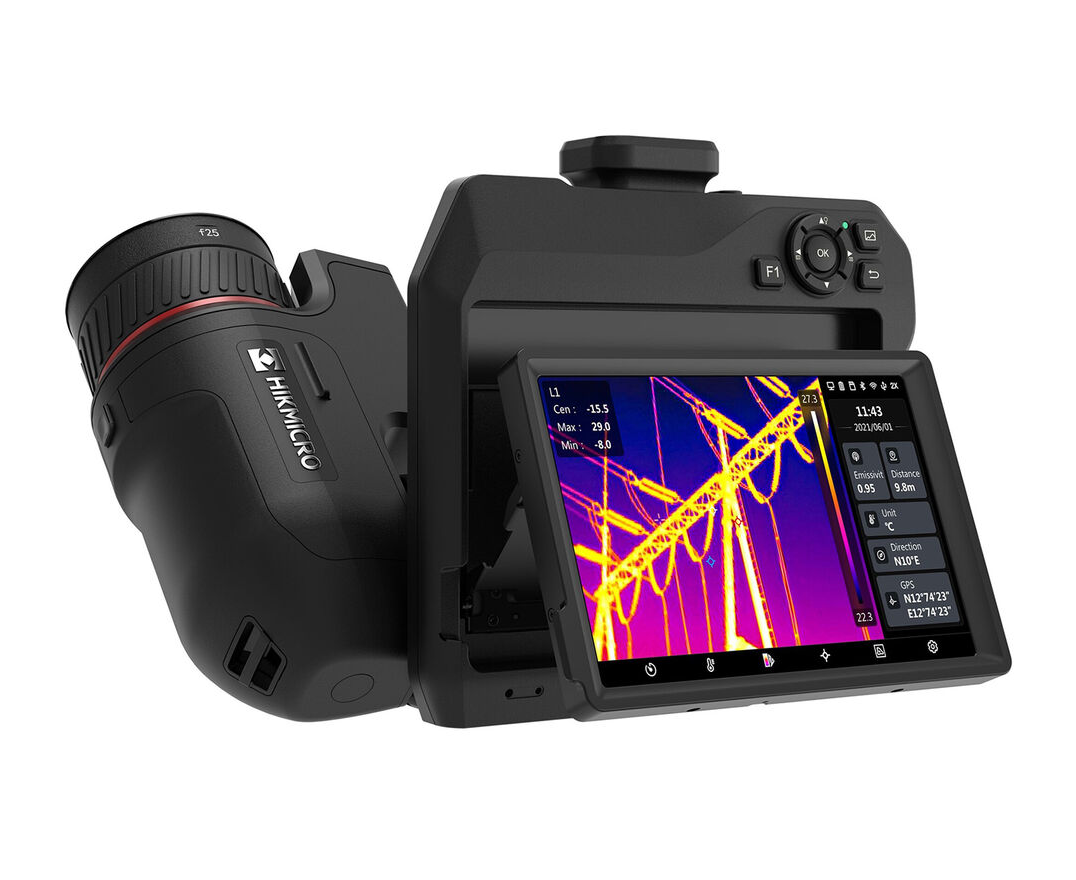

The HIKMICRO SP60-L12 is a high-performance handheld thermal imaging camera designed for industrial, predictive maintenance, oil and gas, and utility inspections. Featuring a 640 × 480 thermal resolution and a high-sensitivity VOx detector (NETD <30 mK), it delivers detailed thermal images to help professionals identify issues early.
With a 12° × 9° field of view, the SP60-L12 provides precision imaging for targeted inspections. It measures temperatures ranging from -20°C to 650°C (-4°F to 1202°F) with high accuracy (±2°C/3.6°F or ±2%), making it an essential tool for a wide range of industrial applications.
The ergonomic design includes a 90° rotating LCD touchscreen and a 180° rotating lens, enabling flexible viewing angles. The 1024 × 768 OLED electronic viewfinder, auto-brightness 5-inch LCD display, and 1× to 12× continuous digital zoom further enhance usability.
Advanced features such as GPS and compass annotations, 1-Tap level and span adjustment, and a 30 Hz image frequency provide enhanced efficiency and precision. The HIKMICRO Viewer App and HIKMICRO Analyzer software allow users to transfer, analyze, and generate reports seamlessly.
Built for industrial durability, the SP60-L12 offers Wi-Fi connectivity, up to 4 hours of continuous operation, and an IP54-rated enclosure for protection against dust and water.
Key Features:
- Thermal resolution: 640 × 480 (307,200 pixels)
- Field of view: 12° × 9° for precise, long-range inspections
- High sensitivity: NETD <30 mK for detecting subtle temperature variations
- Temperature measurement range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: Max (±2°C/3.6°F, ±2%)
- Adjustable focus: Manual, automatic, and 1-Tap Level and Span
- 90° rotating LCD touchscreen and 180° rotating lens for flexible viewing angles
- 1024 × 768 OLED electronic viewfinder with auto-brightness 5-inch LCD display
- 1× to 12× continuous digital zoom for detailed imaging
- GPS & compass annotations for precise location tracking
- 30 Hz image frequency for real-time imaging
- Wi-Fi connectivity for seamless data transfer
- Up to 4 hours of continuous operation for extended inspections
