HIKMICRO HM-TP96-Q/W-SP60-L25 SP60-L25/50 SP Series Handheld Thermal Imaging Camera – 640 × 480 Pixels
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

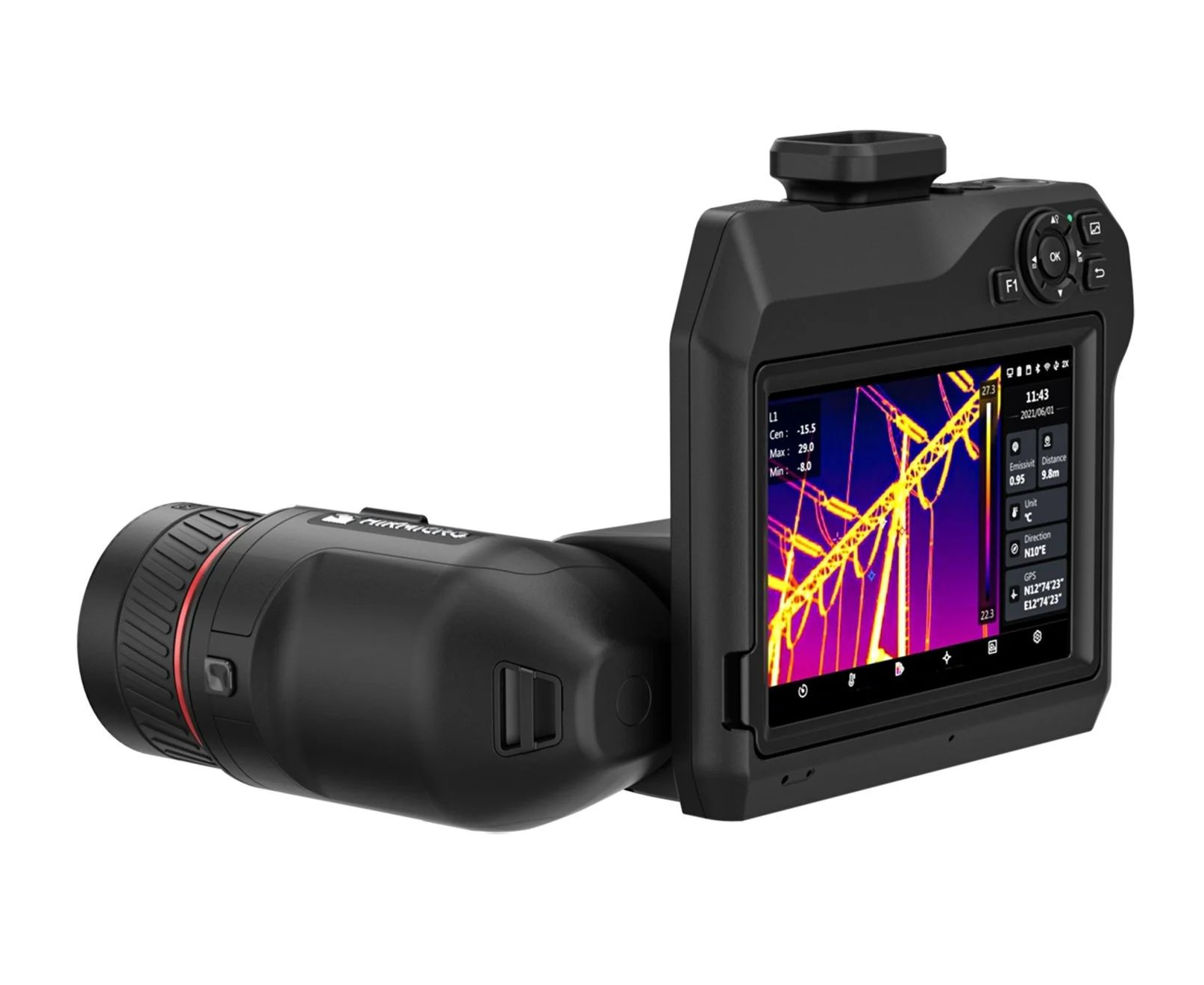

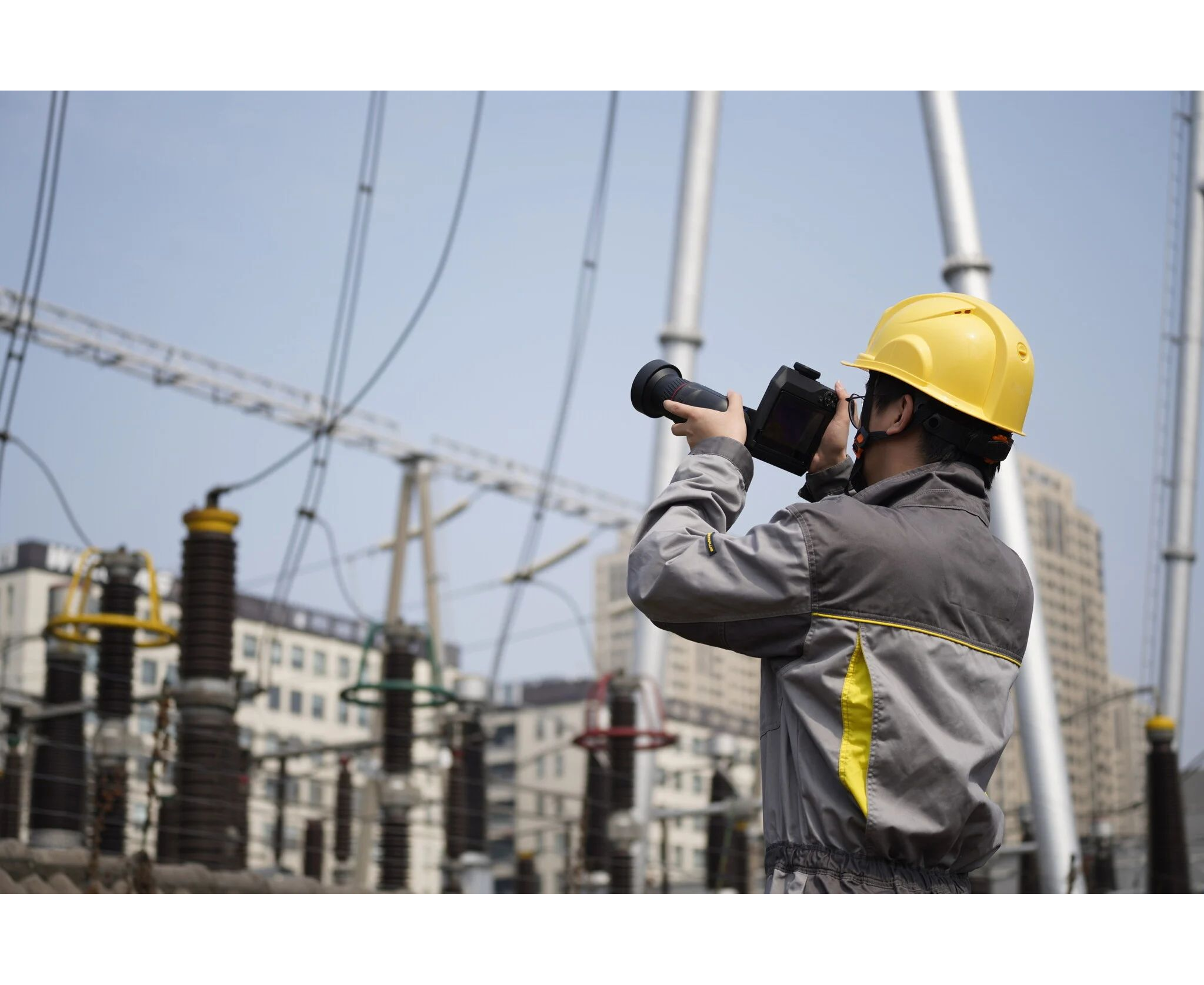

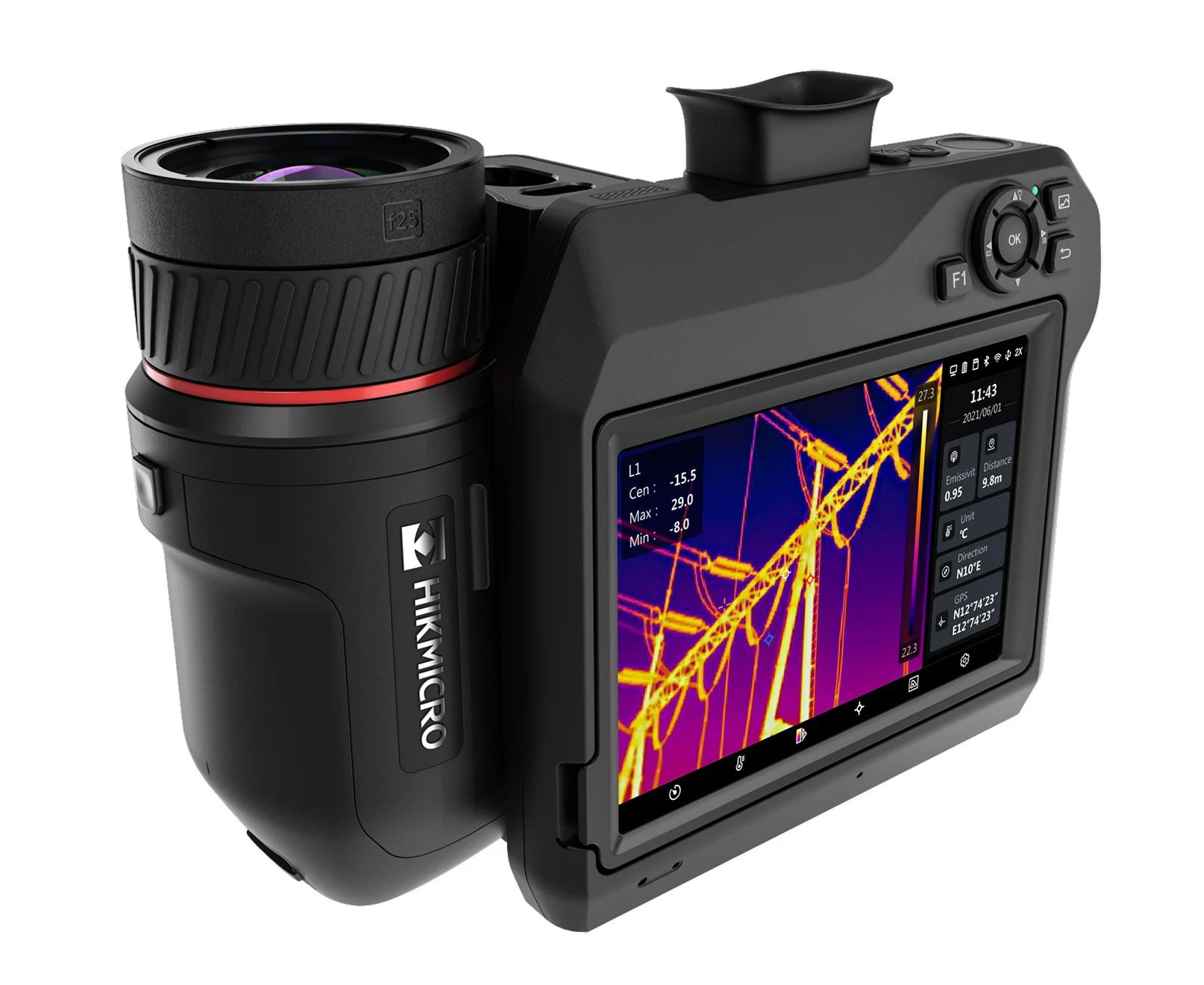

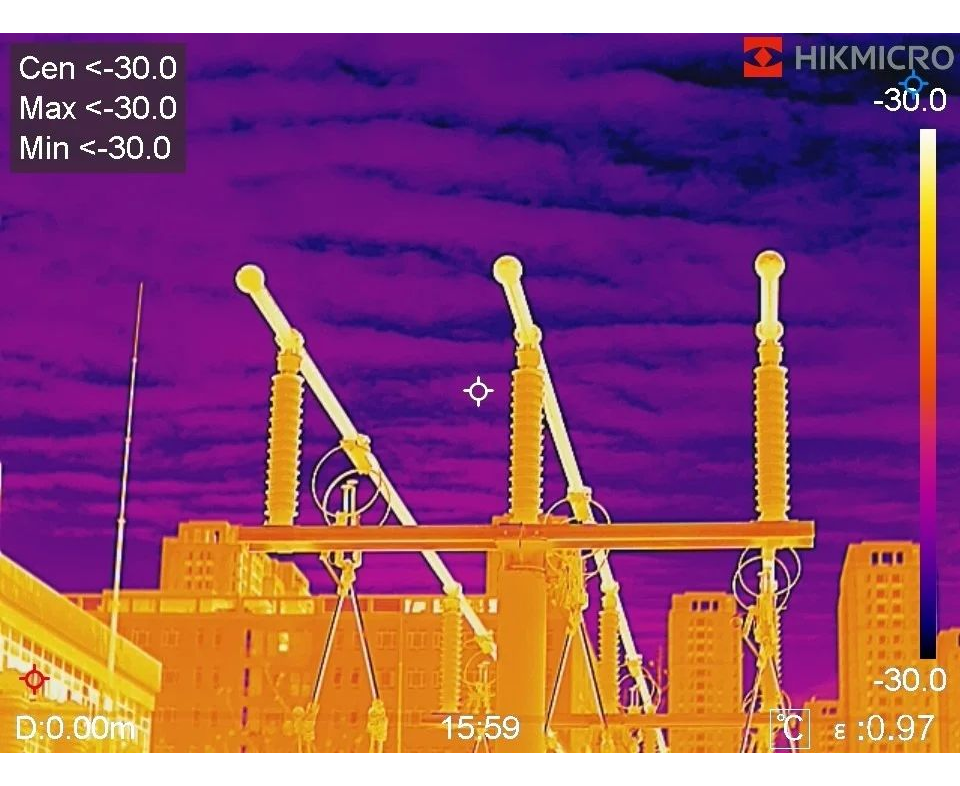

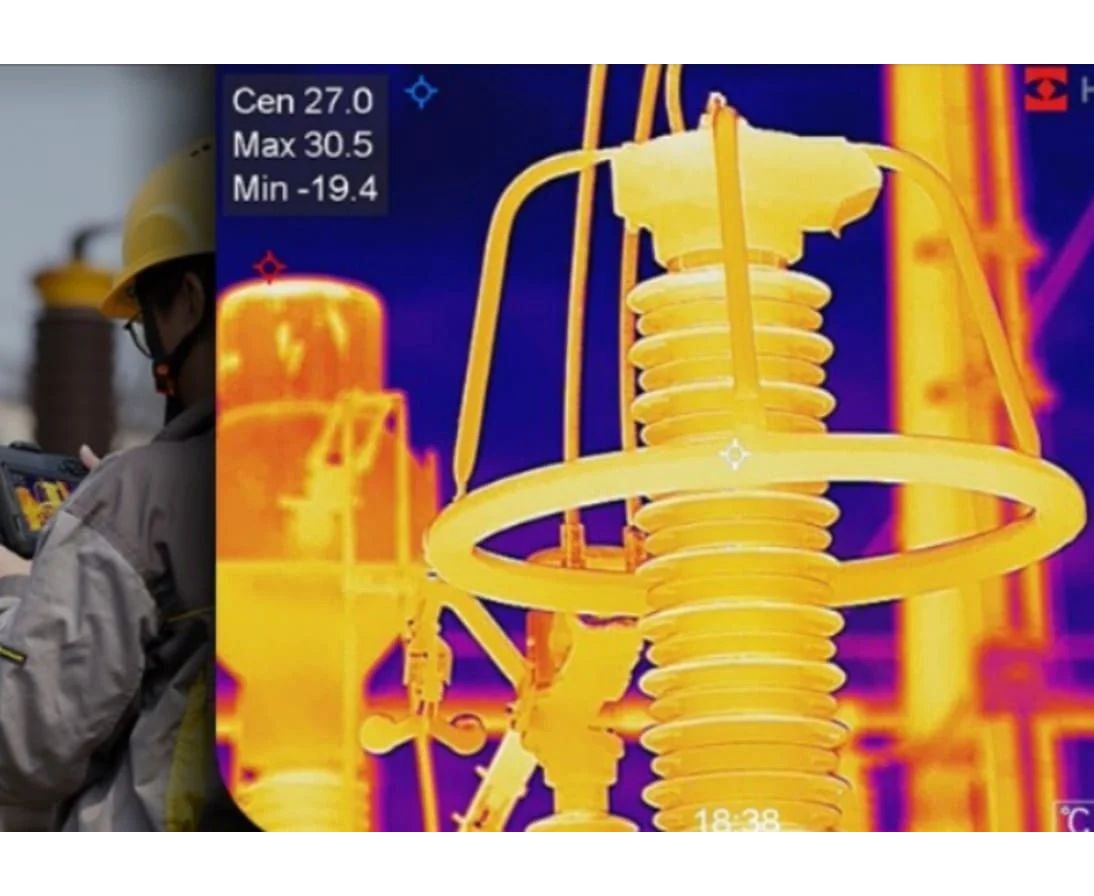

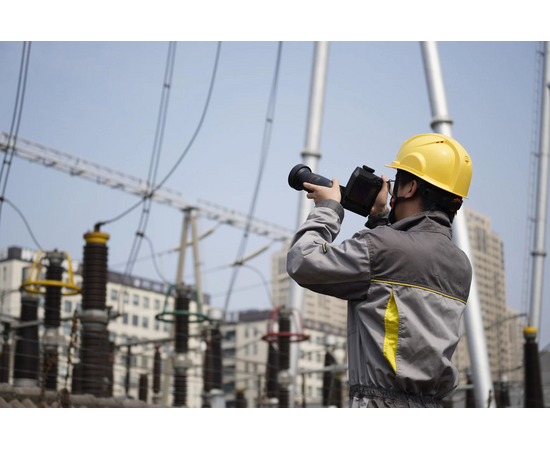

The HIKMICRO SP60-L25/50 is a high-performance handheld thermal imaging camera designed for industrial, predictive maintenance, oil and gas, and utility inspections. With a 640 × 480 resolution and a high-sensitivity HIKMICRO VOx detector (NETD <30 mK), this camera provides detailed thermal imaging to detect potential issues before they lead to failures.
Equipped with two interchangeable lenses (L25 and L50), the SP60 offers flexibility for various applications, covering different fields of view (24.8° × 18.7° and 50° × 37.3°). The temperature measurement range extends from -20°C to 650°C, ensuring reliable operation in demanding environments.
The 90° rotating LCD touchscreen, 180° rotating lens, and multiple focus modes (manual, continuous autofocus, autofocus, and laser-assisted focus) enhance usability and accuracy. Additional advanced features, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span adjustment, optimize the inspection process.
HIKMICRO Analyzer software allows users to analyze thermal data, generate reports, and share images seamlessly. With Wi-Fi and HDMI connectivity, the SP60 facilitates real-time communication and data transfer.
Key Features:
- Thermal resolution: 640 × 480 (307,200 pixels)
- Interchangeable lenses: L25 (24.8° × 18.7°) and L50 (50° × 37.3°)
- High sensitivity: NETD <30 mK for detecting small temperature differences
- Temperature measurement range: -20°C to 650°C (-4°F to 1202°F)
- Focus modes: Manual, continuous autofocus, autofocus, and laser-assisted focus
- Fast focusing: One-second focus for sharp images and accurate measurements

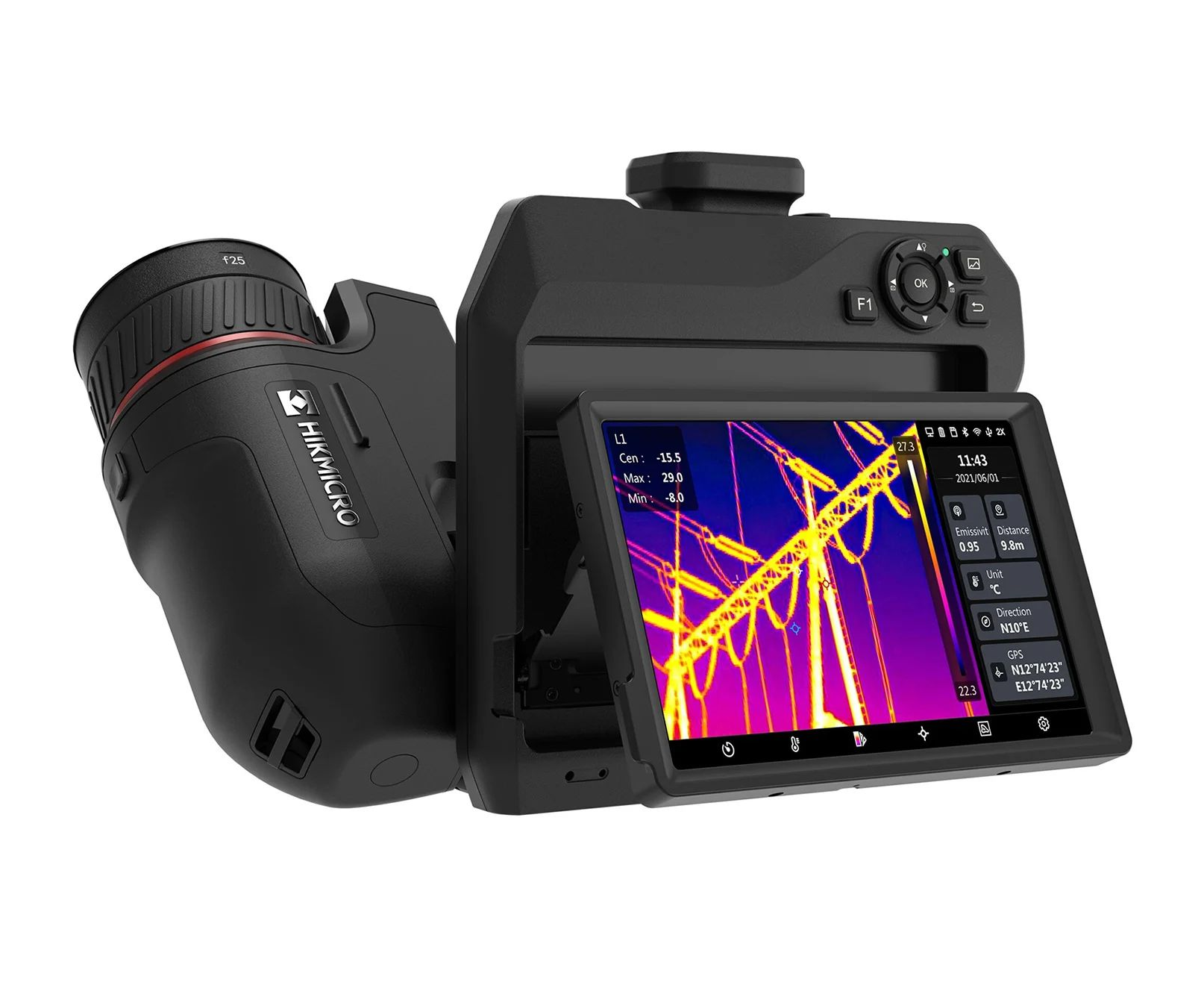

- 90° rotating LCD touchscreen and 180° rotating lens for flexible inspections
- 1024 × 768 OLED electronic viewfinder with auto-brightness 5" color LCD display
- 1× to 12× continuous digital zoom for detailed analysis
- GPS & compass annotations for location tracking and inspection efficiency
- 30 Hz image frequency for smooth real-time imaging
- Multiple level/span modes: Manual, automatic, and 1-Tap level and span adjustment
- HIKMICRO Analyzer software for professional analysis and reporting
- Wi-Fi and HDMI connectivity for easy image transfer and sharing
