HIKMICRO HM-TP96-Q/W-SP60-L50 SP60-L50 SP Series Handheld Thermal Imaging Camera – 640 × 480 Pixels
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

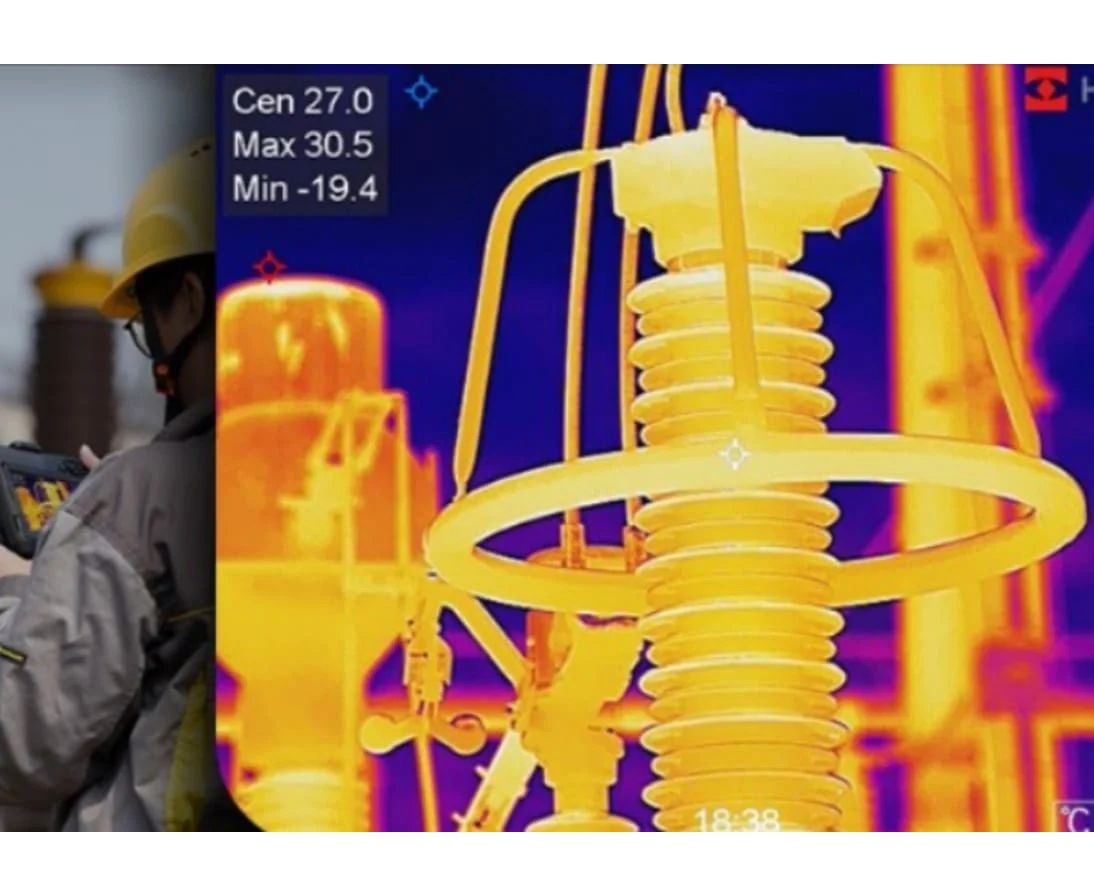

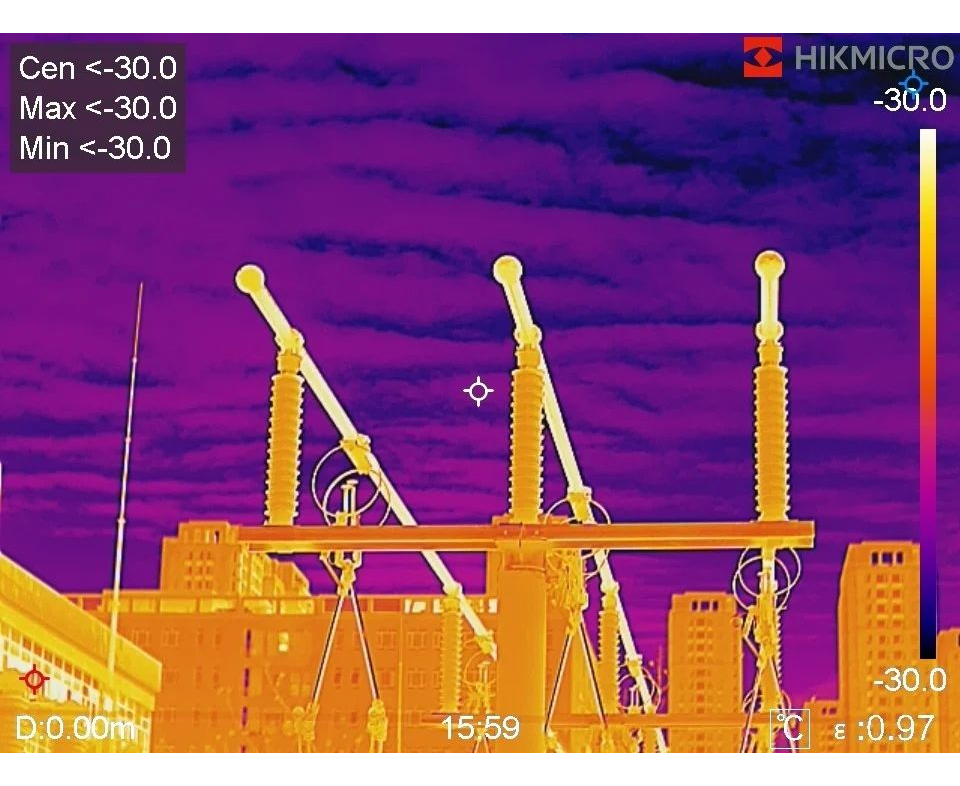

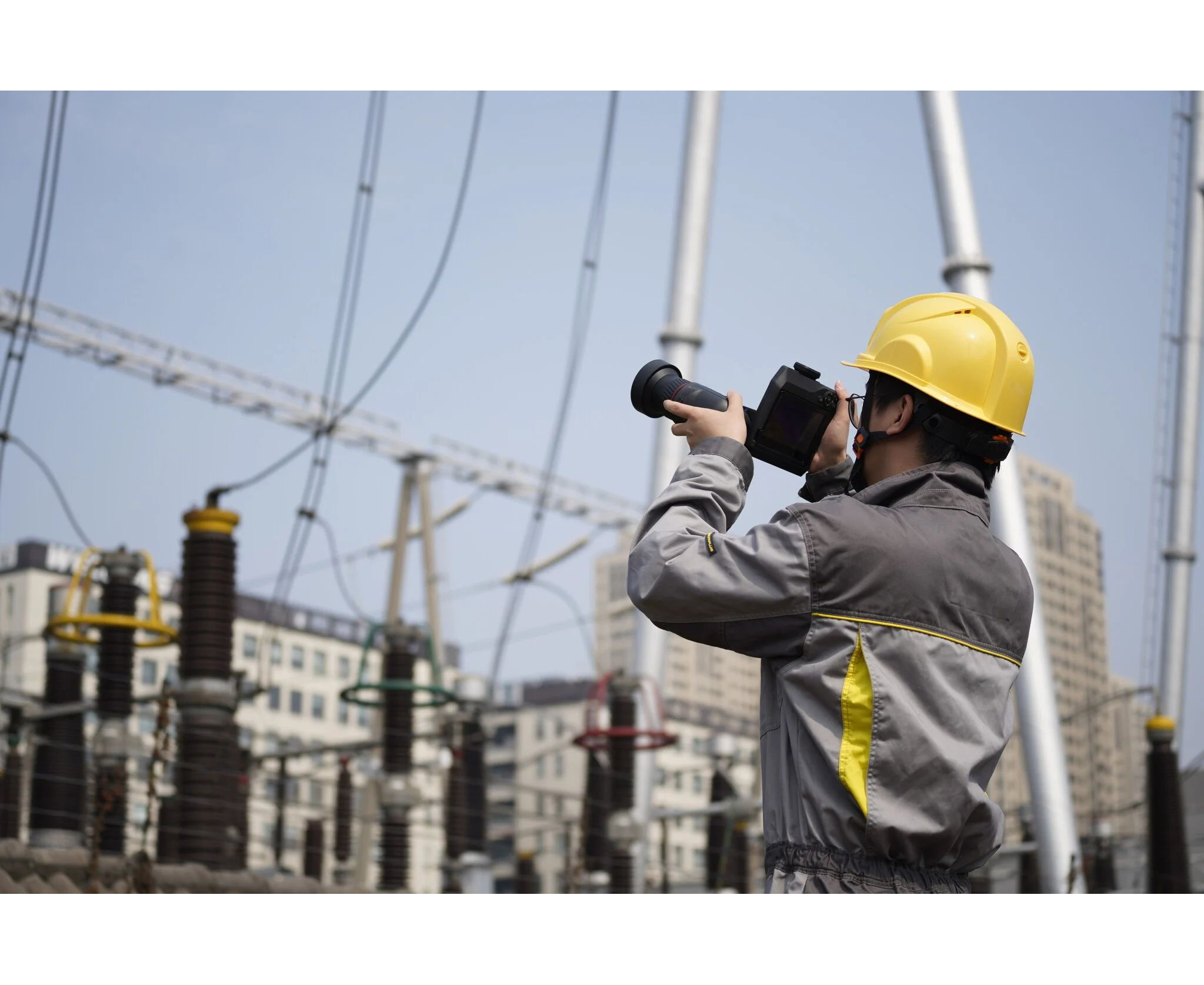

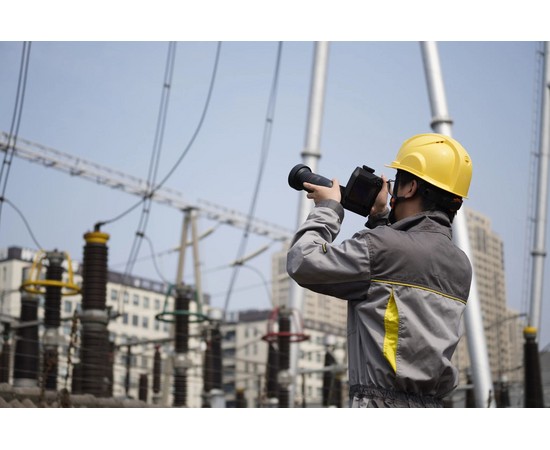

The HIKMICRO SP60-L50 is a high-performance handheld thermal imaging camera designed for industrial, predictive maintenance, oil and gas, and utility inspections. Equipped with a 640 × 480 thermal resolution and a high-sensitivity HIKMICRO VOx detector (NETD <30 mK), it provides sharp, clear thermal images to detect potential issues early.
With a 50° × 37.3° field of view, the SP60-L50 covers large areas efficiently. Its temperature measurement range of -20°C to 650°C (-4°F to 1202°F) ensures precise operation in a variety of industrial applications. The adjustable focus system includes manual, continuous autofocus, autofocus, and laser-assisted focus for quick and accurate measurements.

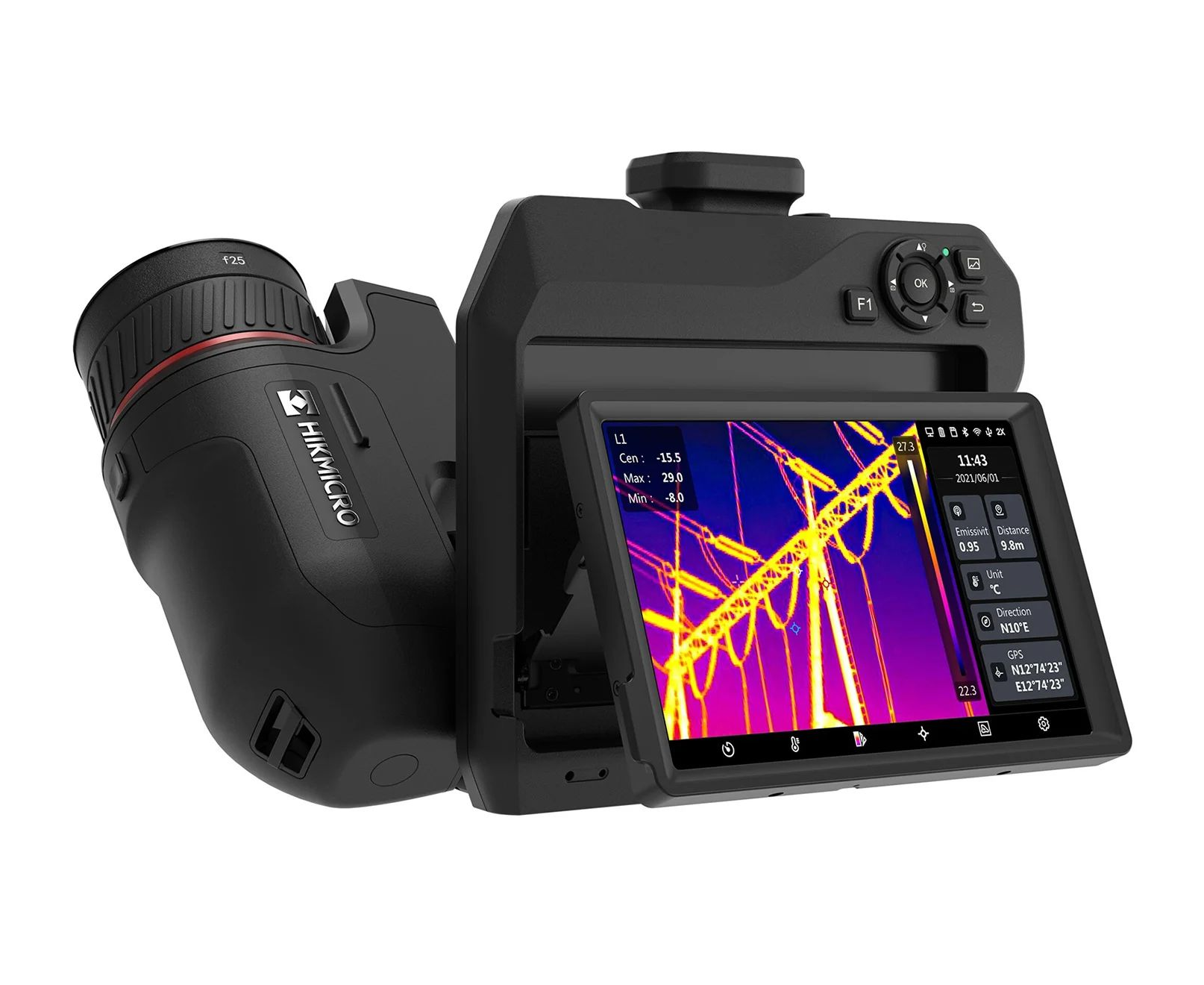

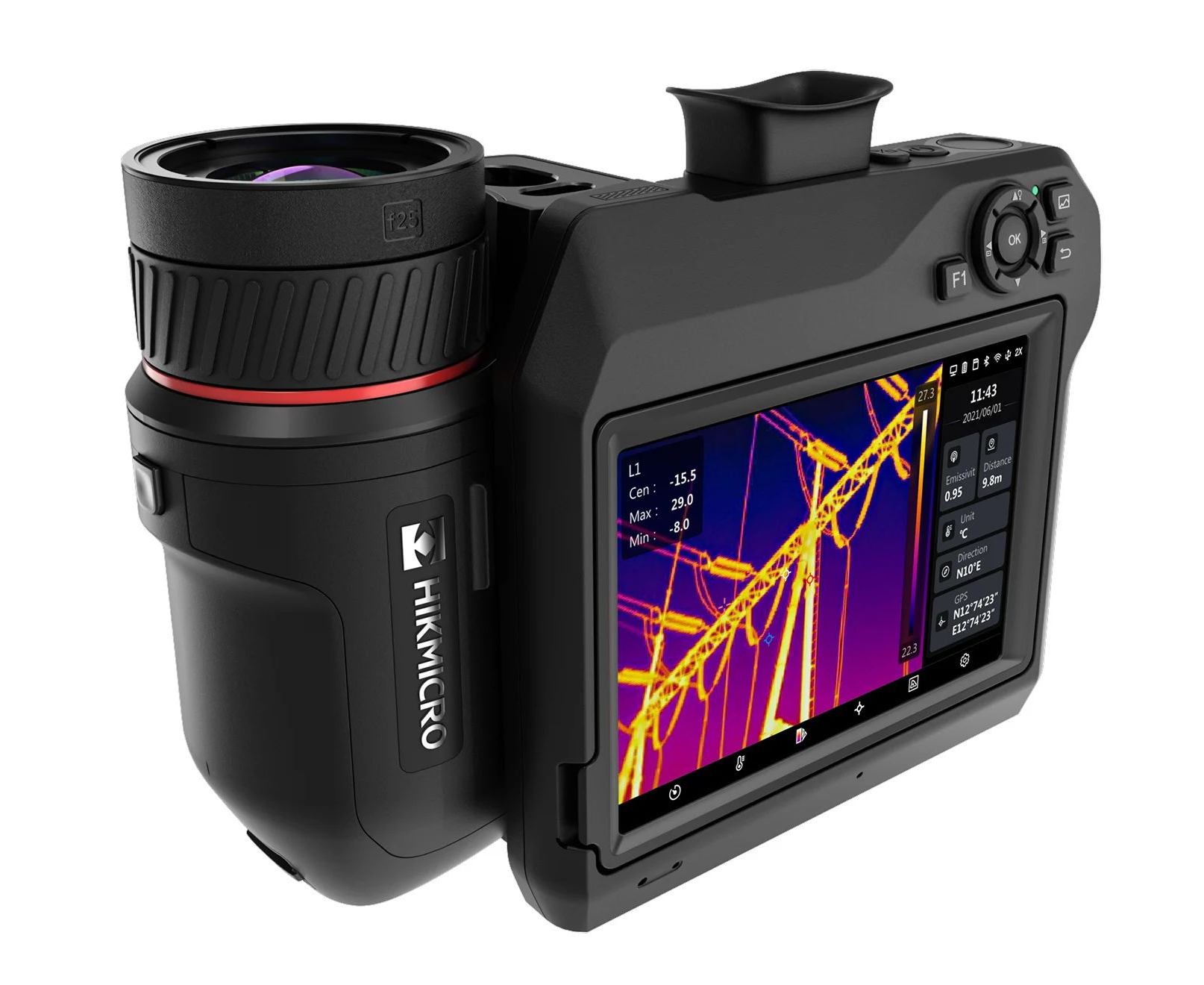

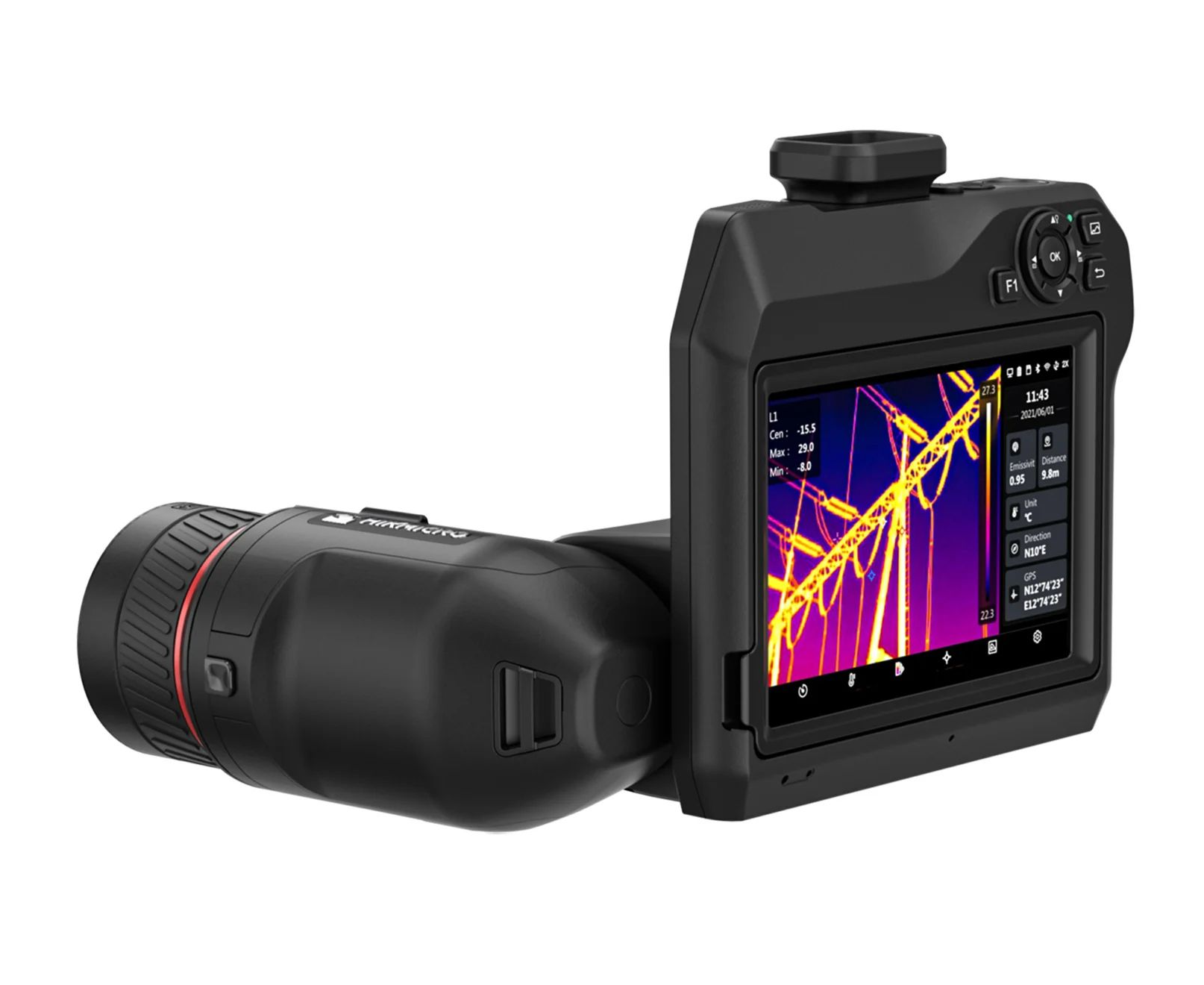

Designed for flexibility and ease of use, the 90° rotating LCD touchscreen and 180° rotating lens allow easy viewing from multiple angles. The 1024 × 768 OLED electronic viewfinder, auto-brightness 5" LCD display, and 1× to 12× continuous digital zoom enhance usability in challenging environments.
Advanced features such as GPS and compass annotations, multiple image annotations, and 1-Tap level and span adjustment improve efficiency for professional inspections. The HIKMICRO Viewer App and HIKMICRO Analyzer software enable seamless image transfer, analysis, and reporting.
The SP60-L50 is built for industrial durability, featuring IP54-rated protection, Bluetooth, Wi-Fi, HDMI, and USB-C connectivity, and a robust 3-year warranty.
Key Features:
- Thermal resolution: 640 × 480 (307,200 pixels)
- Field of view: 50° × 37.3° for wide-area coverage
- High sensitivity: NETD <30 mK for detecting small temperature variations
- Temperature measurement range: -20°C to 650°C (-4°F to 1202°F)
- Focus modes: Manual, continuous autofocus, autofocus, and laser-assisted focus
- Fast focusing: One-second autofocus for sharp images and accurate readings
- 90° rotating LCD touchscreen and 180° rotating lens for flexible inspections
- 1024 × 768 OLED electronic viewfinder with auto-brightness 5" LCD display
- 1× to 12× continuous digital zoom for detailed thermal analysis
- GPS & compass annotations for efficient location-based inspections
- Multiple annotation types: Voice, text, GPS, and compass
- 30 Hz image frequency for real-time imaging
- HIKMICRO Analyzer software for advanced analysis and reporting
- IP54-rated protection against dust and water
- Bluetooth, Wi-Fi, HDMI, and USB-C connectivity for seamless data transfer
- Replaceable battery with up to 4 hours of continuous operation
- 3-year warranty for long-term reliability
