HIKMICRO HM-TP96-Q/W-SP60-L8/12/25 SP Series High-Resolution Thermal Imaging Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

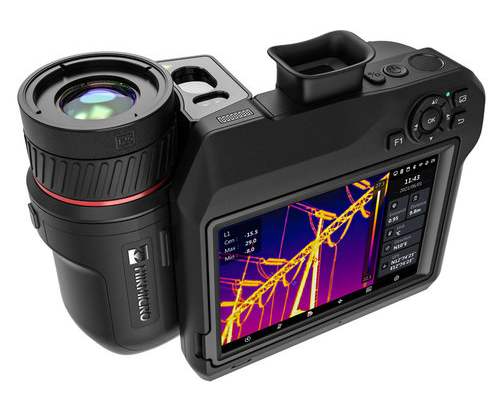

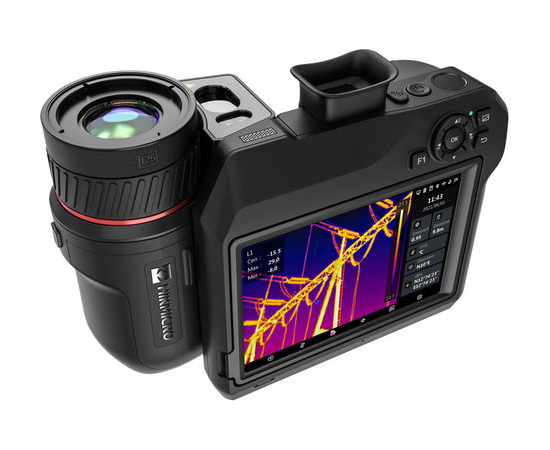

The HIKMICRO HM-TP96-Q/W-SP60-L8/12/25 is a professional-grade thermal imaging camera designed for industrial inspections, predictive maintenance, oil and gas surveys, and utility inspections.
With a high-resolution 640×480 thermal sensor, NETD <30mK, and an advanced multi-lens system (8°, 12°, and 24.8° fields of view), it ensures precise thermal imaging and accurate temperature measurements up to 650°C.
The 5-inch 1280×720 LCD touchscreen with a 90° tilting function and a 1024×768 OLED electronic viewfinder allow for clear visualization in any lighting condition. The laser range finder, GPS, Wi-Fi connectivity, and HDMI output enhance usability and reporting.
The replaceable battery system supports up to 4 hours of continuous operation, making it a reliable choice for long inspection days.
Key Features:
- High-resolution 640×480 thermal sensor with NETD <30mK for clear, detailed imaging
- Three field-of-view options: 8°×6°, 12°×9°, and 24.8°×18.7°
- Temperature measurement range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: ±2°C / ±2% for precise thermal readings
- Auto and manual focus for flexibility in different scenarios
- 30Hz image refresh rate for smooth real-time imaging
- 8MP visible camera for detailed visual inspections

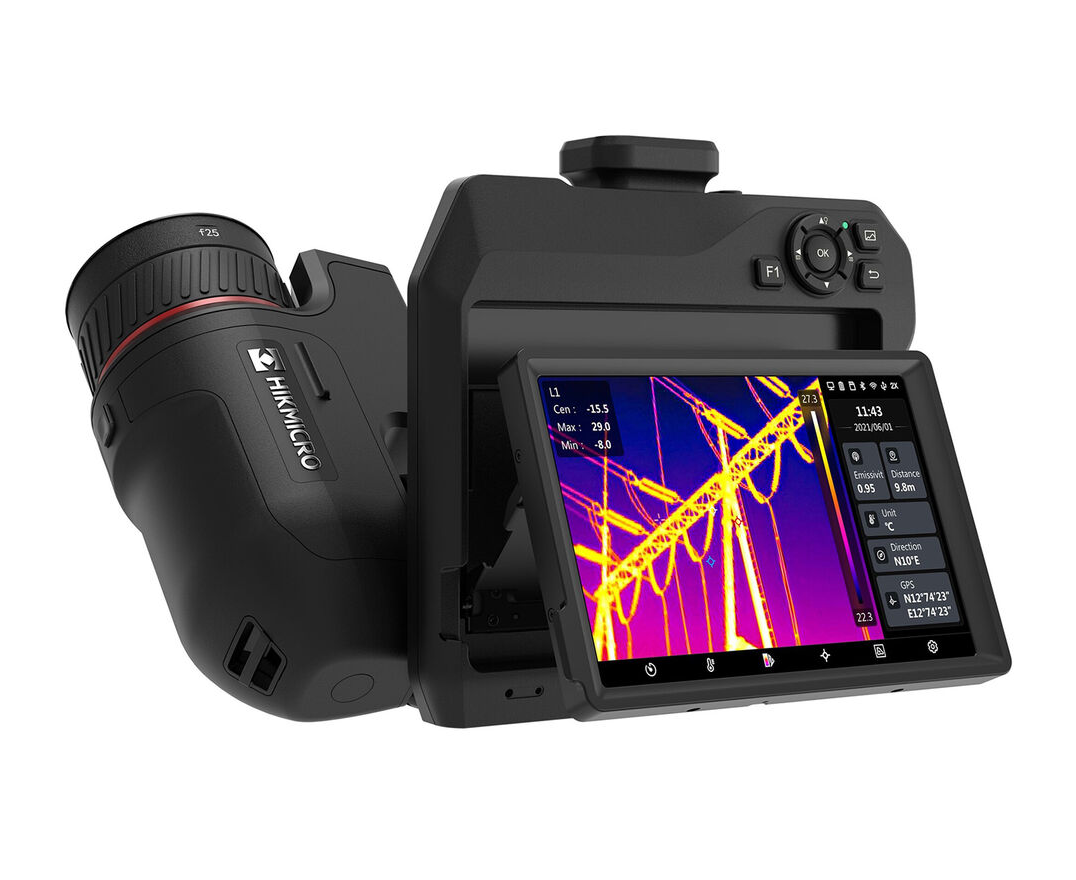

- 5-inch 1280×720 LCD touchscreen with 90° tilting display
- 1024×768 OLED electronic viewfinder for enhanced visibility
- Laser range finder, GPS, and Wi-Fi for accurate positioning and remote data transfer
- 128GB internal storage for extensive data logging
- HDMI output for direct display on external screens
- Replaceable battery supporting up to 4 hours of continuous operation
- Built-in LED light for improved visibility in dark environments
