HIKMICRO HM-TP96-Q/W-SP60-L8 SP Series SP60 – High-Performance Thermal Imaging Camera (640 × 480)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

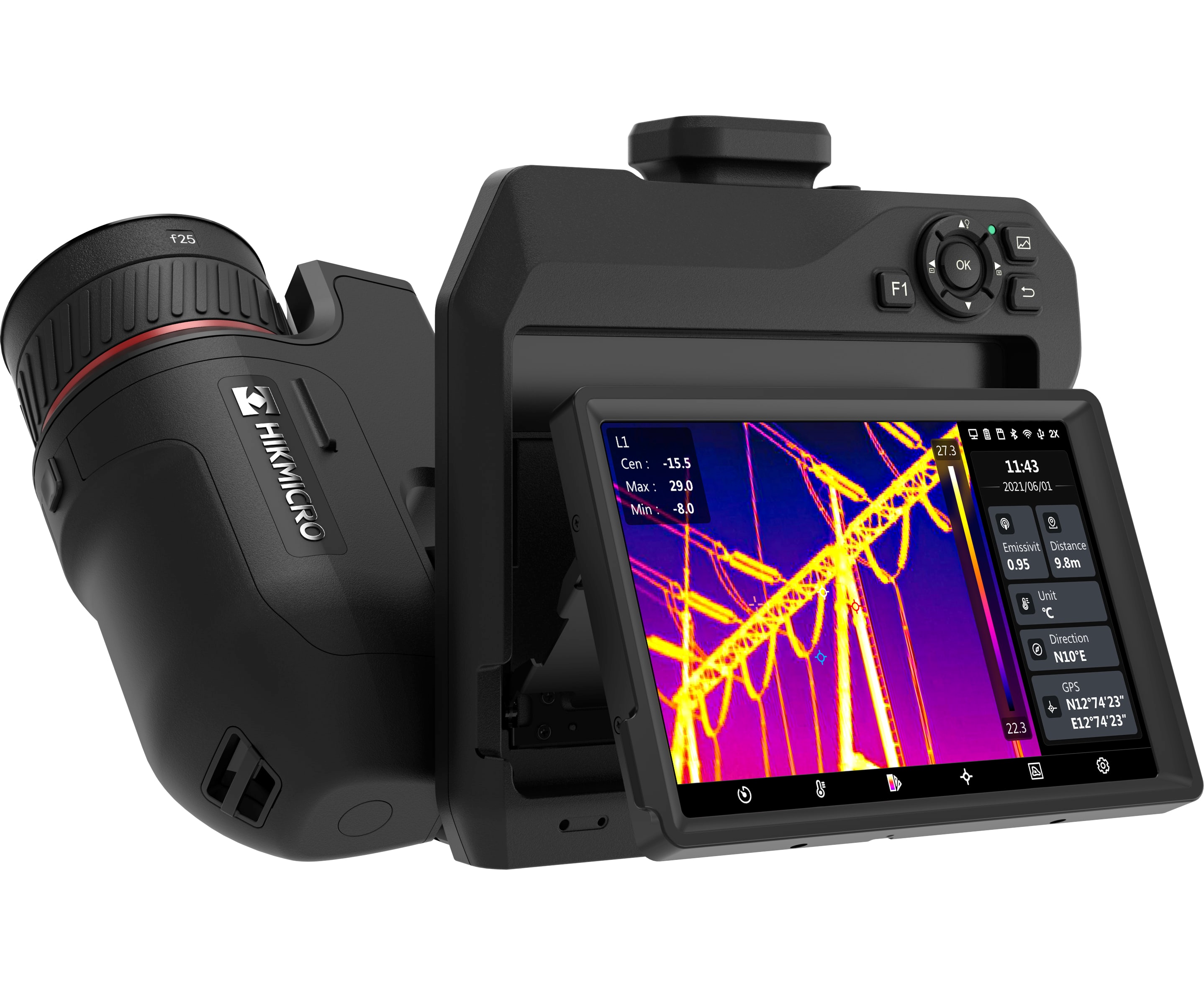

The HIKMICRO SP60 is a high-performance handheld thermal imaging camera designed for industrial inspections, predictive maintenance, and applications in oil and gas and utility sectors. With a 640 × 480 thermal resolution and a high-sensitivity VOx detector (NETD < 30 mK), it ensures precise temperature measurements up to 650°C (-4°F to 1202°F).
Featuring a 180° rotating lens and a 90° tilting screen, the SP60 allows for flexible and ergonomic operation in challenging environments. The 5-inch OLED touchscreen display with automatic brightness adjustment enhances outdoor usability, while the electronic viewfinder (1024 × 768 resolution) minimizes sun glare.
The camera supports four focus modes (manual, continuous autofocus, autofocus, and laser-assisted focus) and 1-Tap Level and Span adjustment, ensuring rapid and accurate image capture. The 1× to 12× continuous digital zoom provides detailed thermal imaging for critical inspections.
For added efficiency, the HIKMICRO Viewer App and HIKMICRO Analyzer software allow real-time data transfer, analysis, and report generation. The device also includes GPS and compass functions for geolocation tagging and Wi-Fi connectivity for seamless image sharing.
Key Features:
- 640 × 480 thermal resolution (307,200 pixels)
- NETD < 30 mK for high sensitivity
- Temperature range: -20°C to 650°C (-4°F to 1202°F)
- 90° rotating touchscreen and 180° rotating lens for flexible viewing
- 1024 × 768 OLED electronic viewfinder with auto-brightness adjustment
- 1× to 12× continuous digital zoom for enhanced details
- Four focus modes: Manual, continuous autofocus, autofocus, and laser-assisted focus
- GPS & compass annotations for location and direction tracking
- Multiple level and span modes (manual, automatic, and 1-Tap)
- Wi-Fi and Bluetooth connectivity for easy data transfer
- IP54-rated enclosure for dust and water resistance
- Up to 4 hours of continuous operation with a rechargeable Li-ion battery
