HIKMICRO HM-TP96H-Q/W-SP60H-L8 SP Series 640 x 480 Pixels Handheld Thermal Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

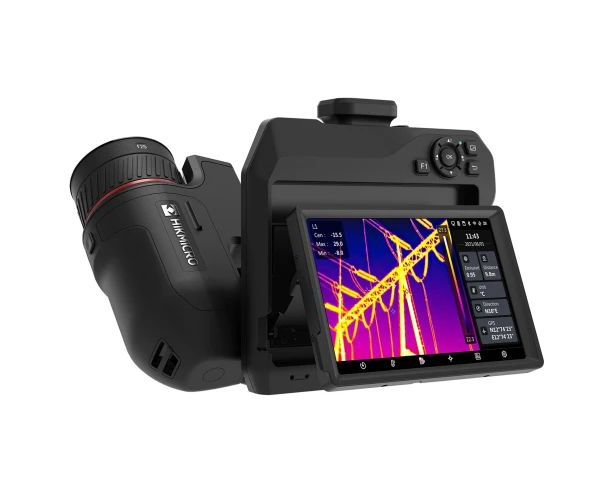

The HIKMICRO SP60H-L8 is a high-performance handheld thermal imaging camera designed for industrial, predictive maintenance, oil and gas, and utility inspections. Featuring a high-sensitivity (NETD < 30 mK) 640 × 480 HIKMICRO VOx detector, it provides clear and precise thermal imaging with a temperature calibration range up to 2200°C.
The 180° rotating lens and 90° tilting 5-inch LCD touchscreen allow for comfortable and efficient inspections in various environments. Advanced features such as an OLED electronic viewfinder, continuous digital zoom, GPS and compass annotations, and a built-in laser rangefinder make the SP60H-L8 an essential tool for thermography professionals.
With auto/manual focus, Wi-Fi connectivity, HDMI output, and a replaceable battery system, the SP60H-L8 ensures long-lasting operation and seamless data transfer. Users can connect the HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share thermal images and generate detailed reports for free.
Key Features:
- Thermal resolution: 640 × 480 (307,200 pixels), NETD < 30mK (@ 25°C, F# = 1.0)
- Temperature measurement range: -40°C to 2200°C (-40°F to 3992°F)
- Accuracy: Max (±1°C/±1.8°F for 0-100°C, ±1% for 100-150°C, ±2°C/±2% beyond 150°C)
- 8° × 6° field of view (FoV) for long-range thermal imaging
- 90° tilting 5-inch LCD touchscreen (1280 × 720 resolution)
- 1024 × 768 OLED electronic viewfinder for high-precision targeting
- Auto/manual focus with continuous digital zoom (1.0x to 12.0x)
- 1-Tap Level and Span adjustment for quick and easy calibration
- Built-in GPS, compass annotations, and laser rangefinder
- 8MP visible camera for dual-mode thermal and visible-light imaging
- Frame rate: 25Hz for smooth thermal imaging
- LED light for enhanced visibility in low-light environments
- Wi-Fi, HDMI output, and HIKMICRO Viewer App compatibility
- Replaceable battery with up to 4 hours of continuous operation
