HIKMICRO HM-TP9CH-W/W-SP120H-L12 SP-Series High-Performance Handheld Thermal Cameras
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

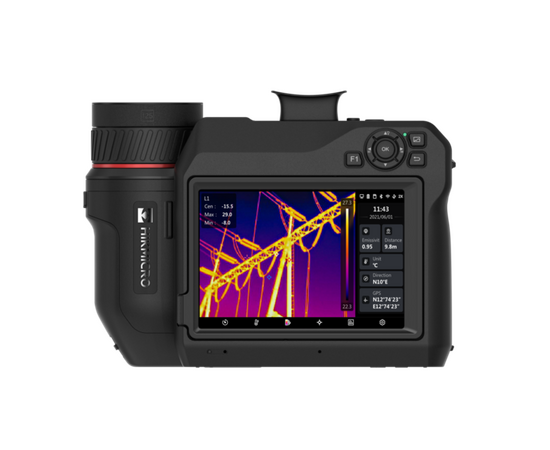

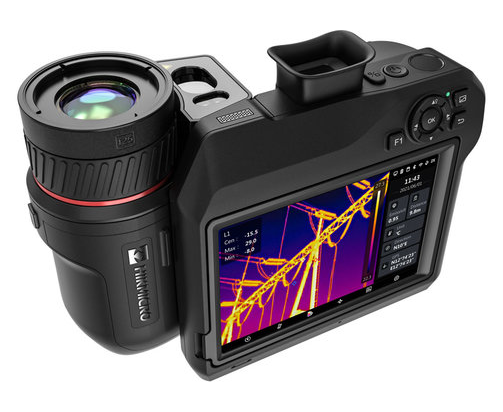

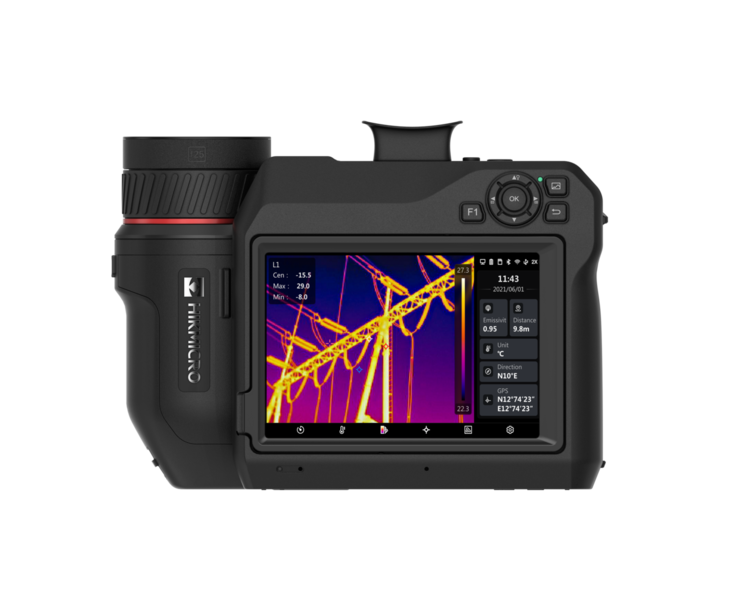

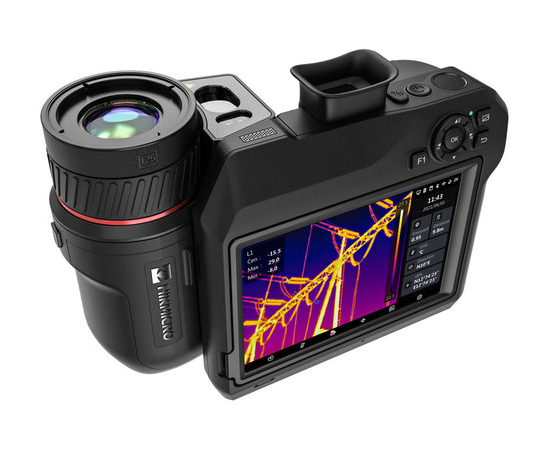

The HIKMICRO SP-Series handheld thermal cameras are high-performance imaging tools designed for industrial, predictive maintenance, oil and gas, and utility inspections. With high thermal sensitivity and advanced imaging technology, these cameras help professionals detect equipment failures, prevent downtime, and enhance safety.
Featuring high-resolution thermal detectors, electronic viewfinders, and ergonomic designs, the SP-Series cameras offer a user-friendly experience with precise temperature measurement capabilities. With a rotating screen and lens for flexible viewing angles, GPS and compass annotations for location tracking, and advanced zoom functions, the HIKMICRO SP-Series ensures efficient and accurate thermal inspections.
The cameras integrate seamlessly with the HIKMICRO Viewer App and HIKMICRO Analyzer software, enabling easy image transfer, analysis, and report generation. Equipped with Wi-Fi, HDMI output, and a replaceable battery, these cameras are built for reliable field performance.
Key Features:
Thermal resolution options:
- SP120H: 1280 × 1024 (1,310,720 pixels)
- SP60H/SP60L: 640 × 480 (307,200 pixels)
- SP40H/SP40L: 480 × 360 (172,800 pixels)
High thermal sensitivity: NETD <30 mK (SP120H <20 mK) for detecting minute temperature differences
Wide temperature measurement range:
- SP60H, SP40H, SP120H: -40°C to 2200°C (-40°F to 3992°F)
- SP60L, SP40L: -20°C to 650°C (-4°F to 1202°F)
Temperature accuracy:
- SP60H, SP40H, SP120H: Max ±1°C (0-100°C) or ±1% (100-150°C)
- SP60L, SP40L: Max ±2°C or ±2%
- 90° rotating LCD touchscreen and 180° rotating lens for flexible inspections
- 1024 × 768 OLED electronic viewfinder and 5-inch 1920 × 1080 auto-brightness LCD display
- 1x to 12x continuous digital zoom for detailed image analysis
- Manual, automatic, and 1-Tap Level and Span adjustments for enhanced image tuning
- GPS and compass annotation functions for geotagging inspection locations
- 30 Hz image frequency for smooth real-time imaging
- LED light and laser rangefinder for improved target identification
- Replaceable battery for up to 4 hours of continuous operation
- Wi-Fi, HDMI output, and free software compatibility for easy data sharing
