HIKMICRO HM-TP9CH-W/W-SP120H-L25 SP-Series Handheld Thermal Cameras
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

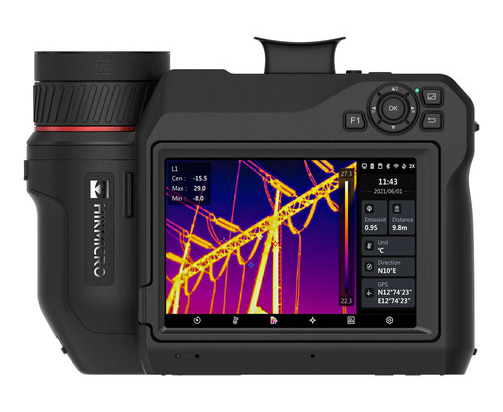

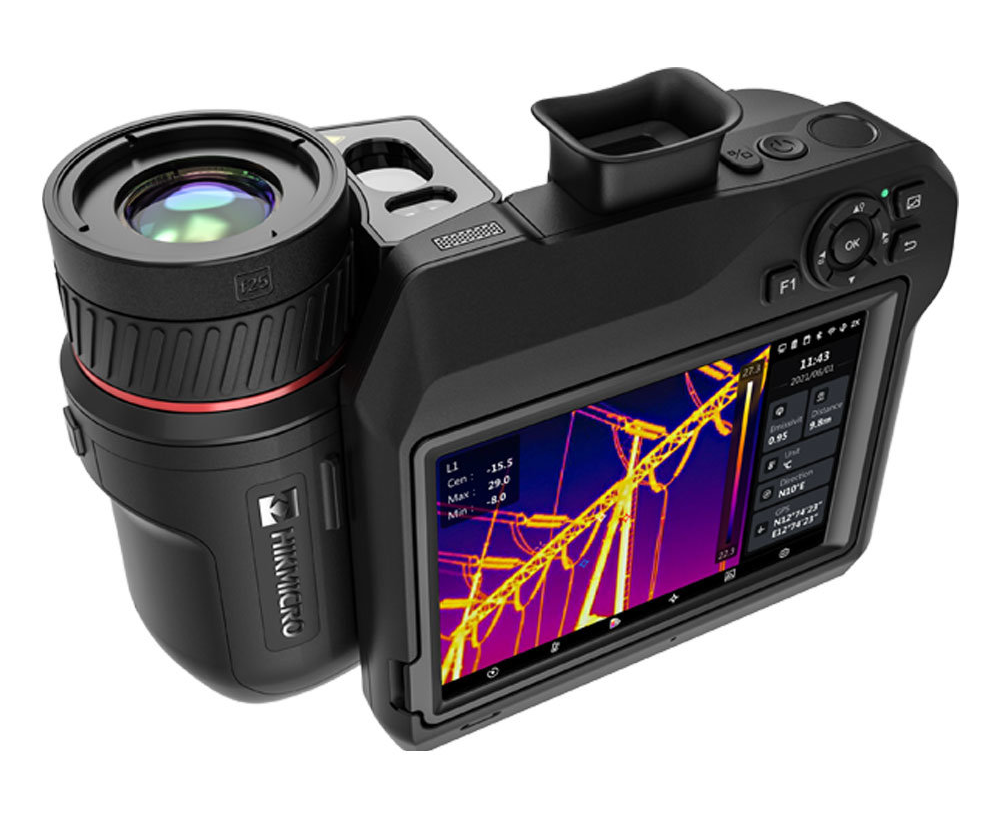

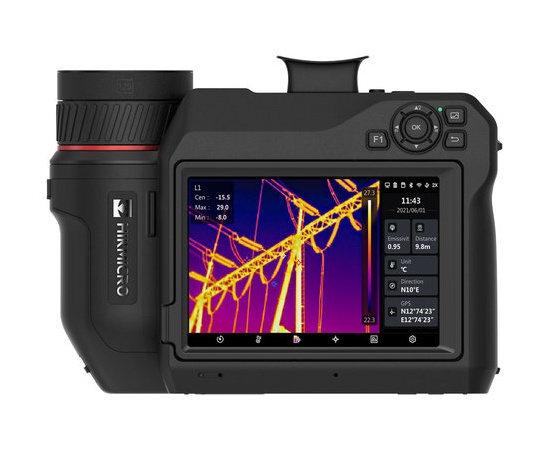

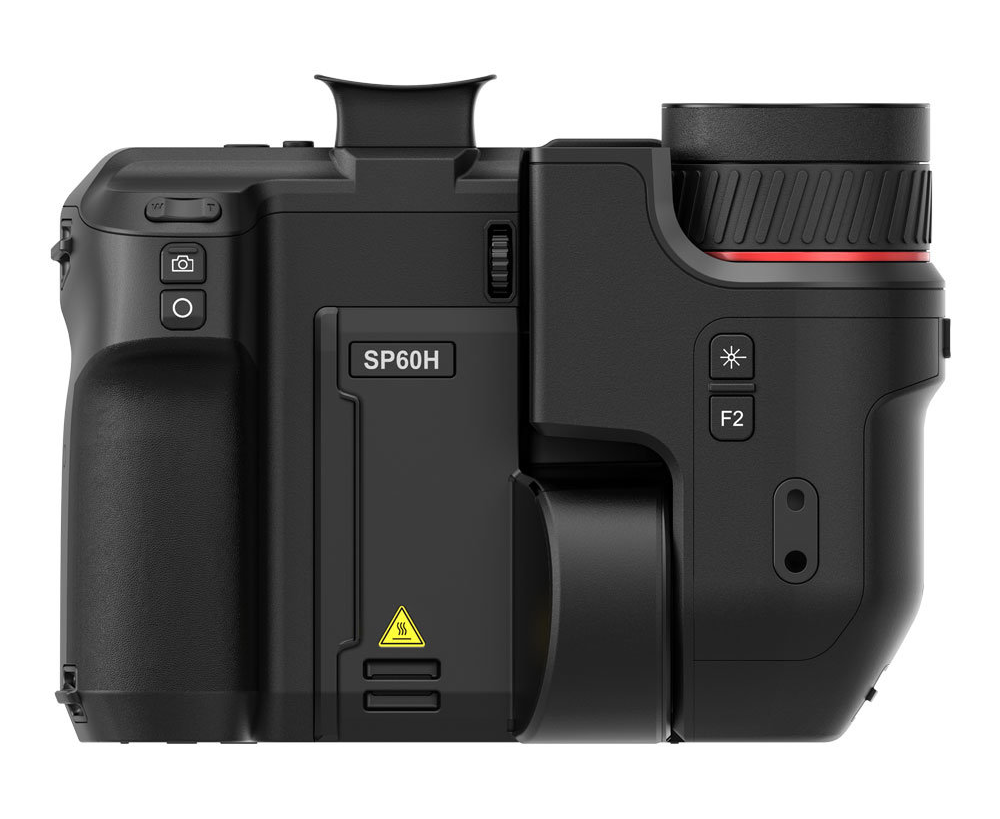

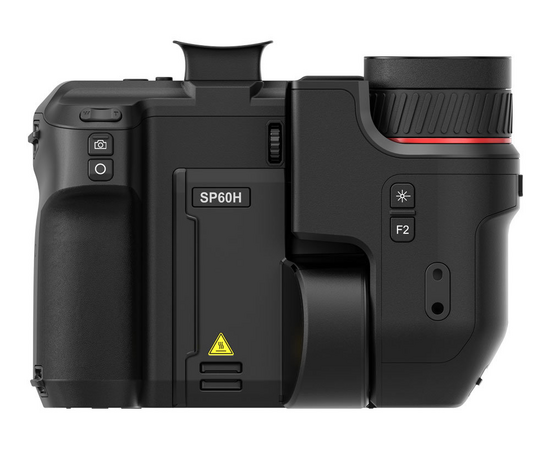

The HIKMICRO SP-Series Handheld Thermal Cameras are high-performance infrared imaging devices designed for industrial inspections, predictive maintenance, and utility diagnostics. With advanced thermal sensitivity and high-resolution detectors, the SP-Series offers accurate temperature measurement and enhanced visualization of heat patterns.
These cameras are available in multiple models: SP40L, SP40H, SP60L, SP60H, and SP120H, featuring resolutions up to 1280×1024 pixels. The ergonomic design includes a 90° rotating touchscreen and a 180° rotating lens, ensuring easy operation in complex environments. High-end features such as GPS, compass annotations, digital zoom, and advanced image processing provide professionals with precise diagnostics and data analysis.
Compatible with the HIKMICRO Viewer App and Analyzer software, the SP-Series allows seamless image transfer, reporting, and data management. The cameras are equipped with Wi-Fi, HDMI, a laser rangefinder, and a replaceable battery for extended field use.
Key Features:
- High-Resolution Thermal Imaging: Up to 1280x1024 resolution for detailed infrared analysis.
- Superior Thermal Sensitivity: NETD <30 mK (SP120H: <20 mK) for detecting minute temperature differences.
Wide Temperature Measurement Range:
- SP60H, SP40H, SP120H: -40°C to +2200°C (-40°F to +3992°F).
- SP60L, SP40L: -20°C to +650°C (-4°F to +1202°F).
- Adjustable Viewing Angles: 90° rotating screen and 180° rotating lens for flexible inspections.
Dual Display System:
- 5" 1920×1080 LCD touchscreen with auto-brightness adjustment.
- 1024×768 OLED electronic viewfinder for enhanced visibility.
- 13MP Visible Camera: High-resolution visual imaging for comprehensive inspections.
- Advanced Zoom Functionality: 1.x to 12.x continuous digital zoom.
- Manual, Auto, and 1-Tap Level & Span Adjustments: Quick and efficient temperature analysis.
- GPS and Compass Annotations: Geolocation tracking for precise data mapping.
- Fast Imaging Processing: 30 Hz refresh rate for real-time thermal imaging.
- LED Light & Laser Rangefinder: Enhanced target identification in low-light environments.
- Replaceable Battery: Up to 4 hours of continuous operation with extended battery options.
- Connectivity Features: Wi-Fi, HDMI output, and compatibility with HIKMICRO software for seamless data transfer and reporting.
