HIKMICRO HM-TP9CH-W/W-SP120H-L50 SP Series High-Performance Handheld Thermal Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

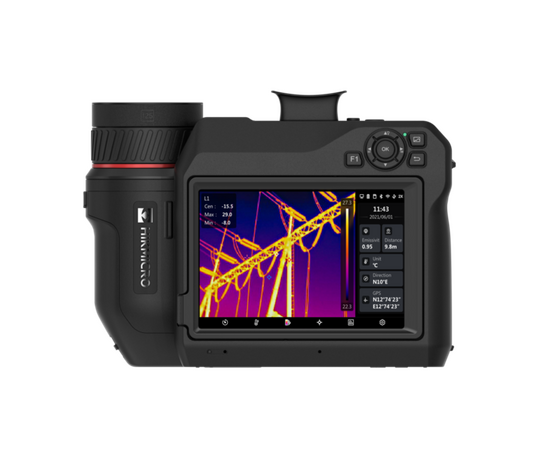

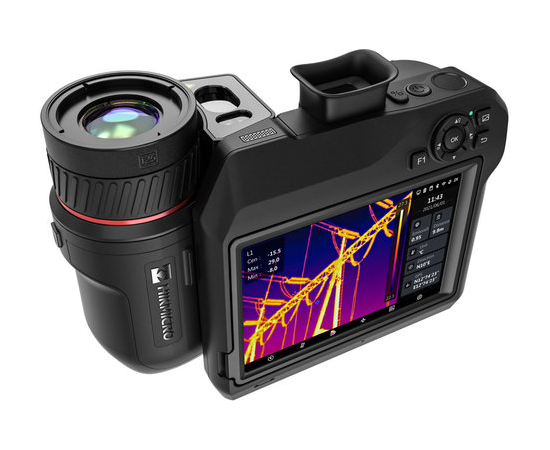

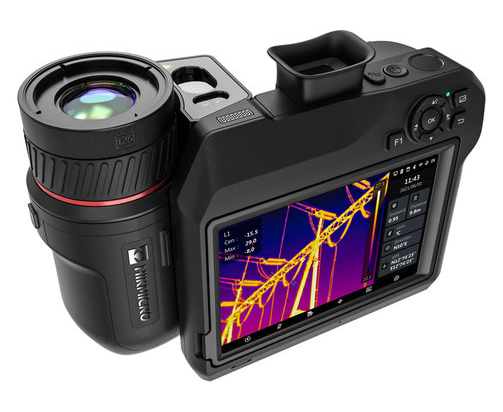

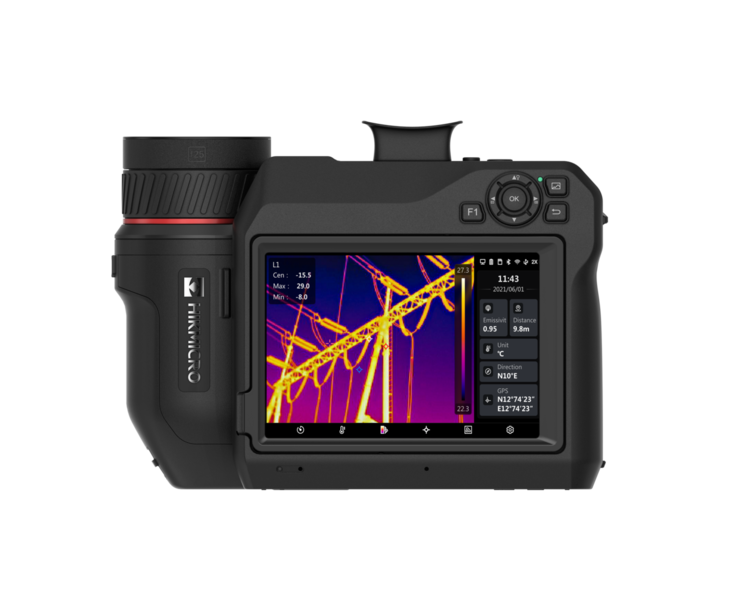

The HIKMICRO SP120H is a high-performance handheld thermal camera designed for industrial inspections, predictive maintenance, and utility diagnostics. With an advanced 1280×1024 high-resolution thermal detector and a thermal sensitivity (NETD) of <20 mK, it delivers precise temperature measurements up to 2200°C.
The ergonomic design includes a 90° rotating touchscreen and a 180° rotating lens, ensuring easy operation in complex environments. Featuring an electronic OLED viewfinder, GPS and compass annotations, and a powerful digital zoom, the SP120H enables professionals to efficiently detect issues and analyze thermal data.
Seamlessly integrate with the HIKMICRO Viewer App or HIKMICRO Analyzer software for easy data transfer, image analysis, and report generation. Equipped with Wi-Fi, HDMI output, a laser rangefinder, and a replaceable battery, the SP120H ensures reliable performance in demanding conditions.
Key Features:
- High-Resolution Thermal Imaging: 1280 × 1024 (1,310,720 pixels) for detailed thermal analysis
- Superior Thermal Sensitivity: NETD < 20 mK for detecting small temperature differences
- Wide Temperature Measurement Range: -40°C to 2200°C (-40°F to 3992°F)
- Accurate Temperature Measurement:
- ±1°C (±1.8°F) for 0 to 100°C (32 to 212°F)
- ±1% for 100 to 150°C (212 to 302°F)
- Adjustable Viewing Angles: 90° rotating screen and 180° rotating lens for flexible inspections
Dual Display System:
- 5.1-inch 1920 × 1080 auto-brightness LCD touchscreen
- 1024 × 768 OLED electronic viewfinder
- Advanced Zoom Functionality: 1.x to 12.x continuous digital zoom
- Manual, Auto, and 1-Tap Level & Span Adjustments: For precise thermal image tuning
- GPS and Compass Annotations: Track and document locations with geotagged images
- Fast Imaging Processing: 30 Hz refresh rate for smooth real-time imaging
- LED Light & Laser Rangefinder: Enhanced target identification in various environments
- Replaceable Battery: Up to 4 hours of continuous operation for extended field use
- Connectivity Features: Wi-Fi, HDMI output, and software compatibility for easy data sharing
