HIKMICRO HM–701ZJ-G01-SHIELD Sun Shield for G Series Thermal Cameras
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

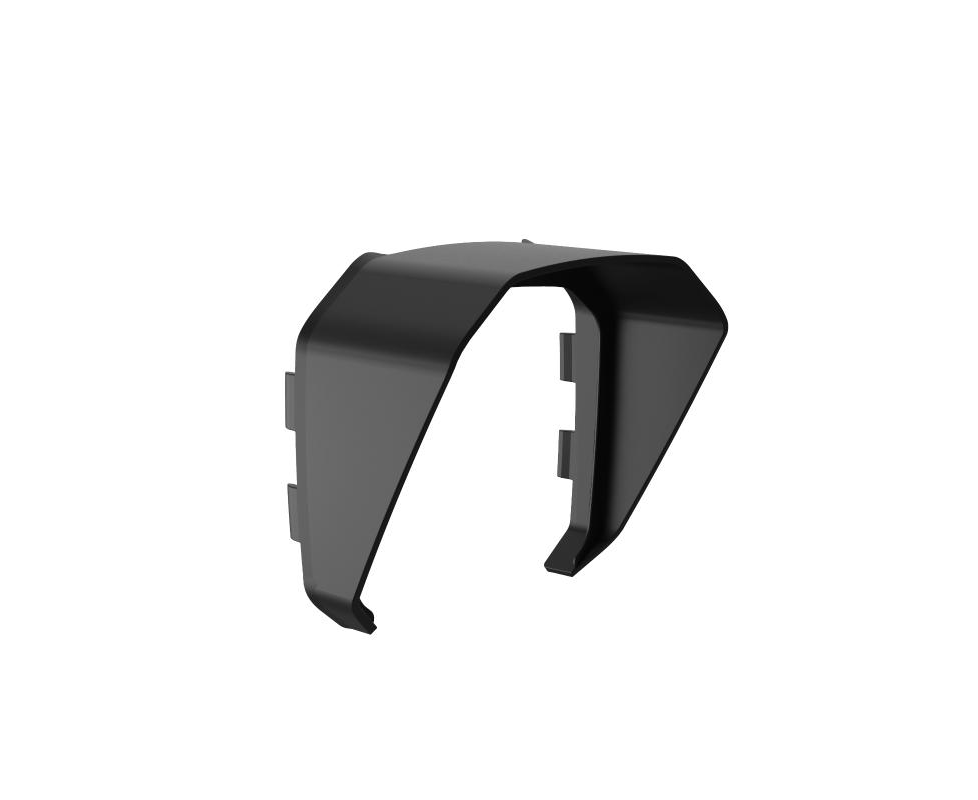

The HIKMICRO G Series Sun Shield (HM–701ZJ-G01-SHIELD) is a specialized accessory designed to enhance the usability of HIKMICRO G Series thermal imaging cameras when working in bright outdoor conditions. By effectively blocking excess sunlight, it reduces lens flare and glare, improving the visibility of the LCD screen and enhancing the thermal imaging experience.
This sun shield clips directly onto your G Series thermal camera, providing a simple solution to increase screen clarity in bright environments. Made from a robust blend of PC + ABS material, the shield is lightweight yet durable, ensuring long-term reliability in various working conditions. Its compact design adds minimal bulk to the camera setup, making it easy to carry and use in the field.
With an operating temperature range of -20°C to 50°C (-4°F to 122°F), the sun shield can withstand diverse environmental conditions, making it an essential accessory for outdoor professionals who require clear, uninterrupted visibility of their thermal images.
Key Features:
- Enhanced LCD visibility by reducing sunlight reflection and glare
- Durable PC + ABS construction for long-lasting performance
- Lightweight and compact design with minimal impact on camera portability
- Effective in temperatures from -20°C to 50°C
- Easily clips onto G Series thermal cameras
