HIKMICRO M60 M Series Handheld Thermal Camera, 640x480, 25Hz, 64GB, 15mm, 8MP HM-TP26-15QF/W-M60
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

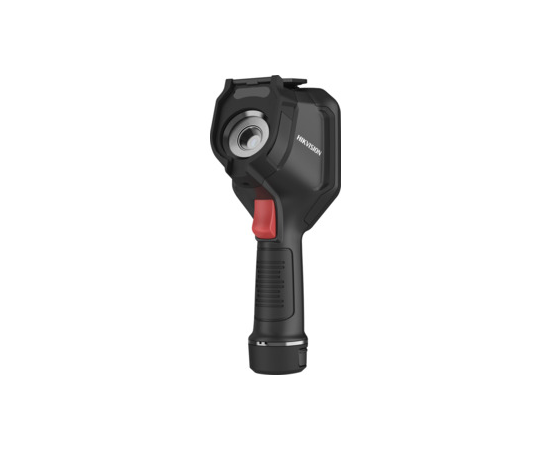

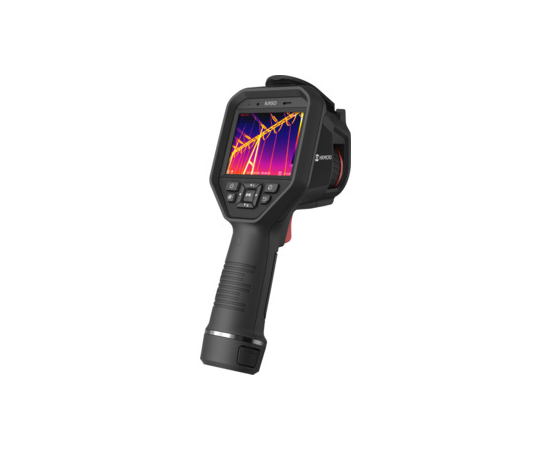

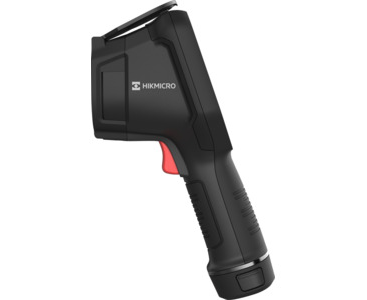

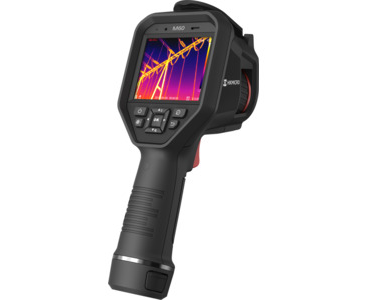

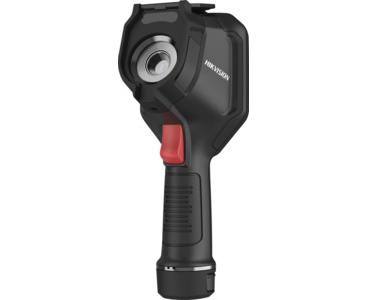

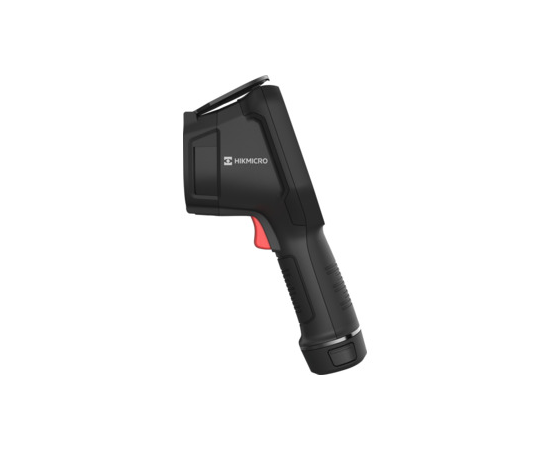

The HikMicro M60 is a high-performance handheld thermal imaging camera designed for professionals who require precise temperature measurement and thermal analysis. Equipped with a 640 × 480 resolution thermal sensor and advanced SuperIR technology, it enhances image quality up to 1280 × 960 for highly detailed thermal imaging.
This device supports multiple color palettes and features an 8 MP visual camera for clear optical imaging. With bi-spectrum image fusion and picture-in-picture preview, users can easily compare thermal and visual data for improved analysis and reporting. The wide temperature measurement range of -20°C to 650°C makes it ideal for detecting heat anomalies in various industries, including building inspections, HVAC maintenance, and automotive diagnostics.
The 3.5-inch LCD touchscreen provides a user-friendly interface with a 640 × 480 resolution for sharp image display. The device includes a long-distance laser light supplement to enhance thermography targeting and an LED light for added visibility in low-light environments. The continuous digital zoom from 1.0x to 8.0x allows for closer inspection of critical areas.
With built-in WiFi connectivity, users can remotely access the camera’s album, download thermal images, and generate quick reports via the HikMicro app. The camera’s robust storage capacity includes a 64GB internal memory, allowing for extensive data recording.
Key Features:
- High-sensitivity 640 × 480 thermal resolution sensor
- SuperIR enhancement up to 1280 × 960 resolution
- 8 MP optical camera for clear visual imaging
- Bi-spectrum image fusion and picture-in-picture preview
- Temperature measurement range: -20°C to 650°C
- High accuracy of ±2°C or ±2%
- 3.5-inch LCD touchscreen with 640 × 480 resolution
- Long-distance laser light for accurate targeting
- Built-in LED light for added illumination
- 1.0x to 8.0x continuous digital zoom
- WiFi connectivity for remote access, downloads, and reports
- 64GB internal storage for extensive data logging
Designed for professionals in building inspections, HVAC maintenance, and the automotive industry, the HikMicro M60 delivers high-quality thermal imaging and precise measurement capabilities in a rugged, handheld device.
