HIKMICRO Mini2 V2 Thermal Camera for USB-C Mobile
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Description

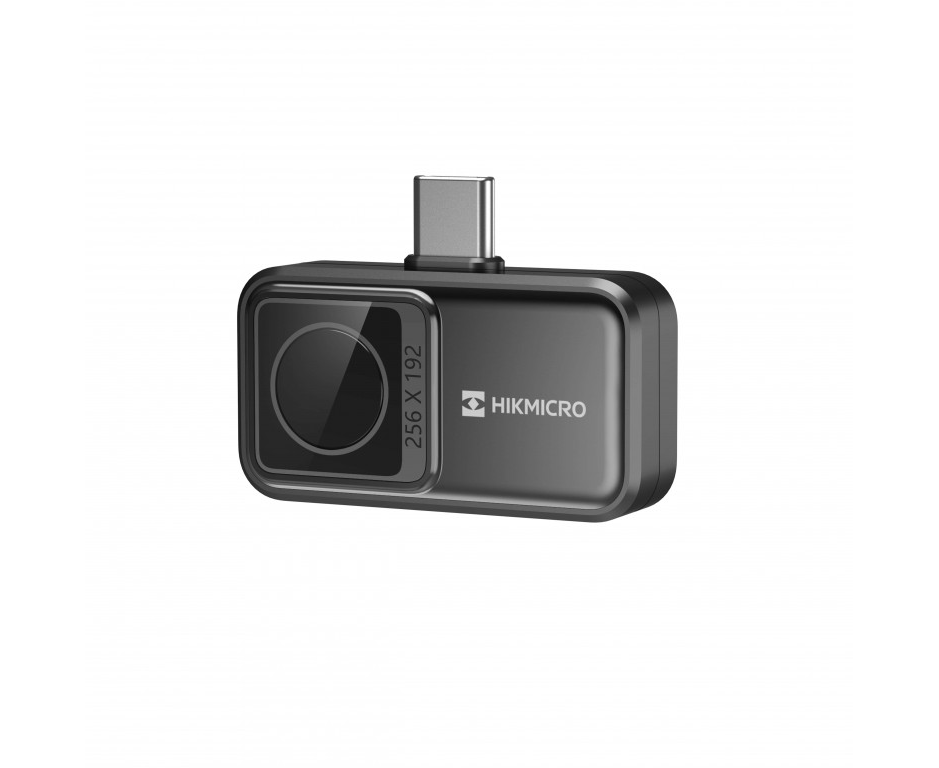

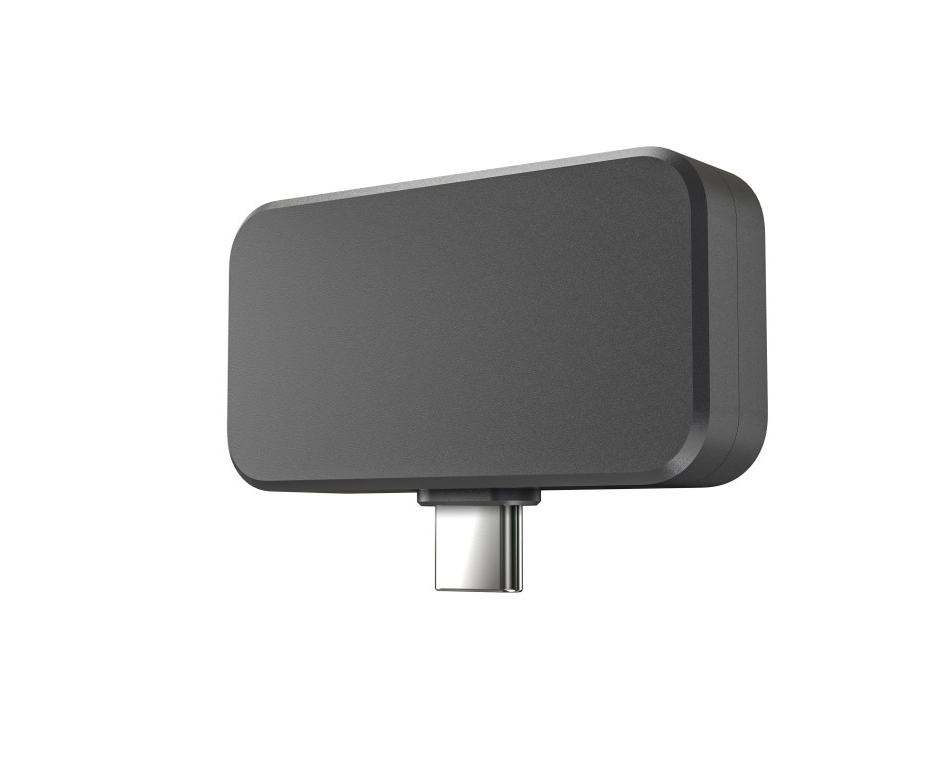

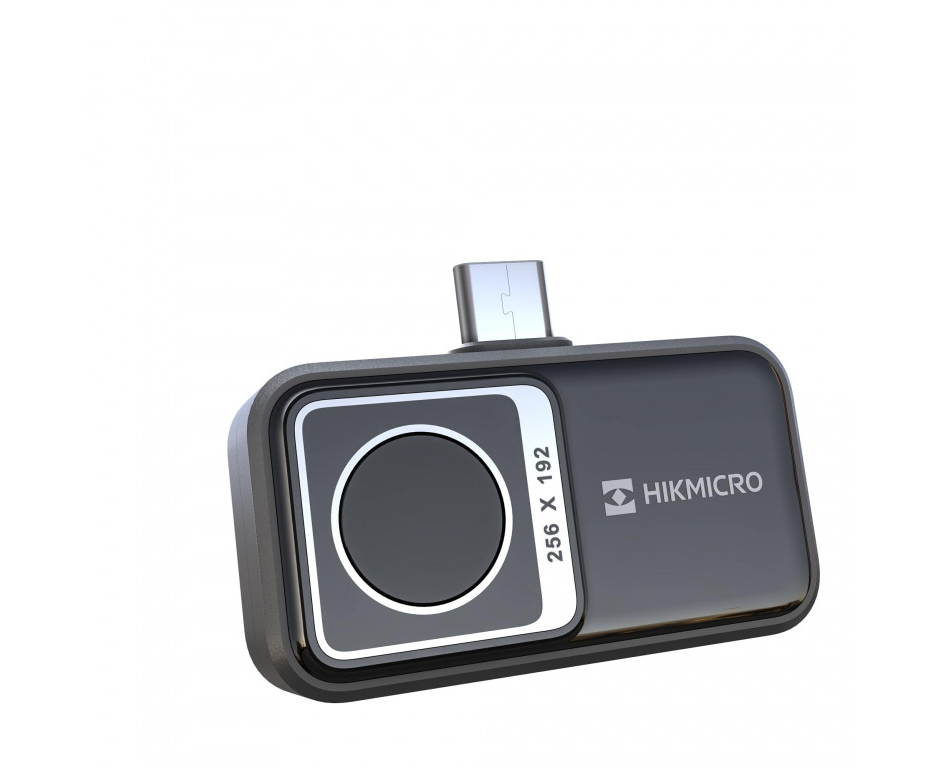

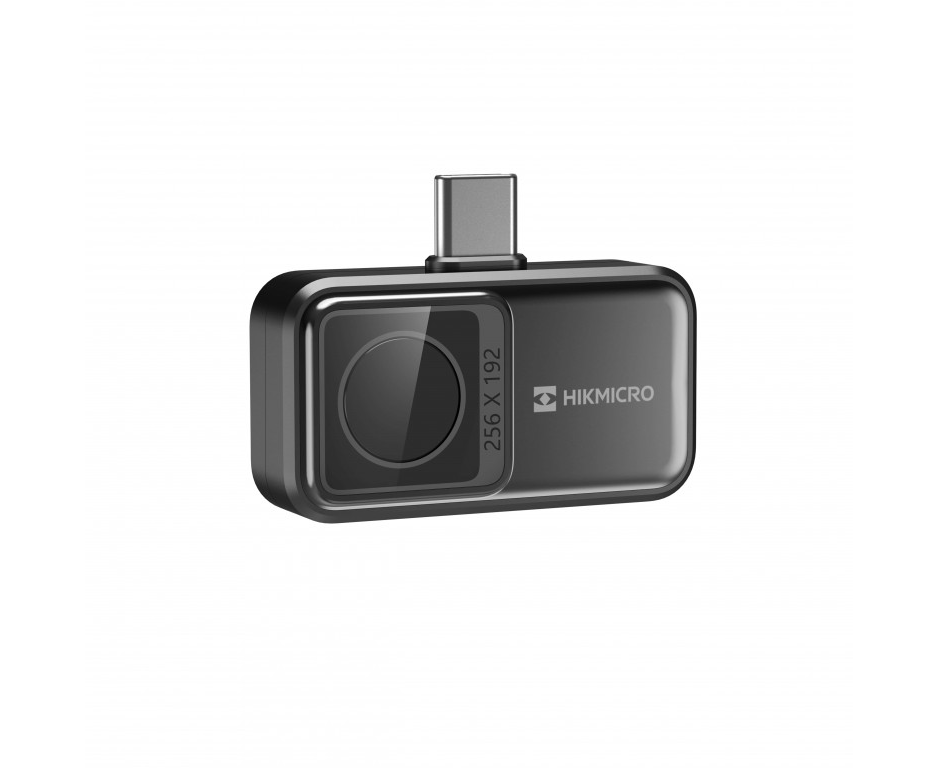

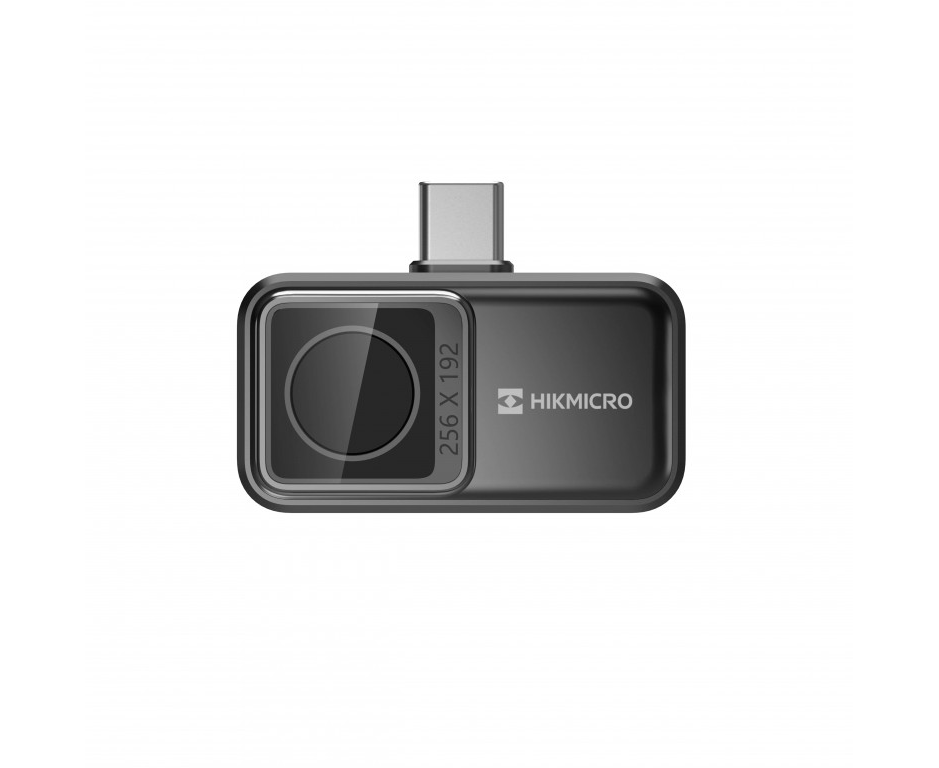

The Mini2 V2 Smartphone Thermal Camera is a versatile and powerful tool designed for a range of applications, from home inspections to HVAC troubleshooting. Equipped with high thermal resolution and SuperIR image enhancement, it delivers clear and detailed thermal images, allowing users to identify potential issues quickly and accurately. This compact device is ideal for both homeowners and professionals, offering an efficient way to detect heat anomalies and make data-driven decisions.
Built for wide compatibility, the Mini2 V2 can connect seamlessly to iOS and Android devices, featuring a 3-in-1 USB-C and Lightning connection. It also comes with a Lightning to USB-C adapter, making it easy to use on the go. With this flexible connectivity, users can effortlessly capture and analyze thermal data using their smartphones, whether they’re in the field or on a job site.
Thanks to its 256 × 192 thermal resolution (49,152 pixels) and NETD of <40 mK (@ 25 °C, F#=1.0), the Mini2 V2 ensures precise and reliable thermal detection. Its temperature accuracy ranges from ±2 °C (-20 °C to 100 °C) and ±2% (100 °C to 400 °C), making it ideal for applications like energy audits, electrical diagnostics, and more.
Weighing only 20 g, the Mini2 V2 is exceptionally lightweight and portable, designed for ease of use in both professional environments and DIY projects. Whether you're conducting home maintenance, performing industrial inspections, or solving HVAC problems, this camera provides a reliable and practical solution for detecting heat-related issues.
