HIKMICRO W-Pocket2 <40mK 256x192px Pocket Thermography Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Description

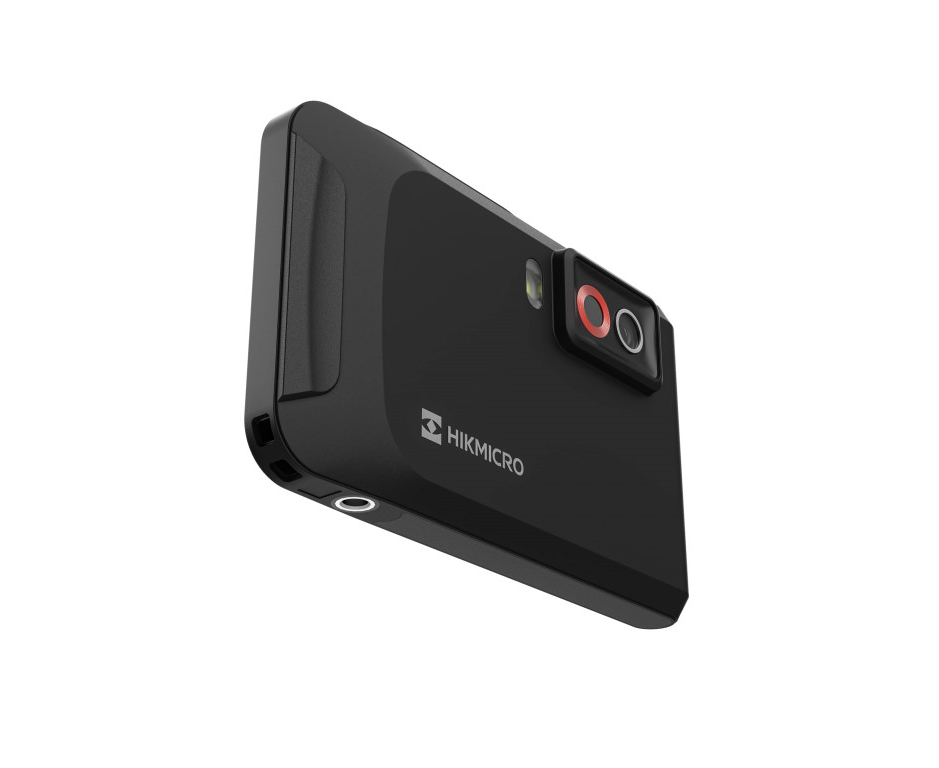

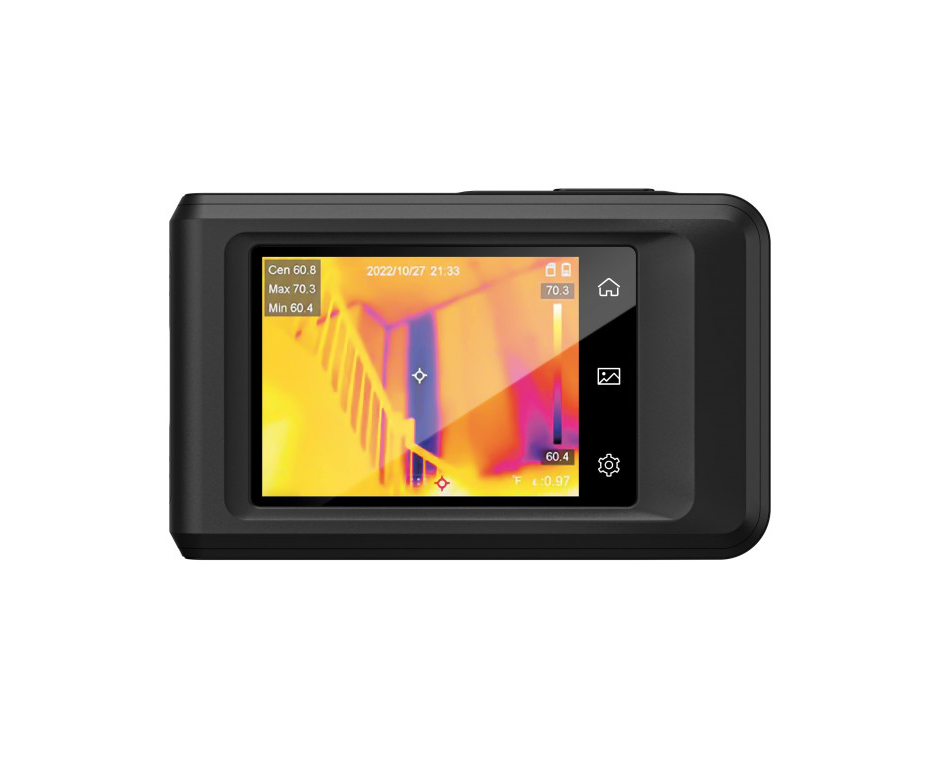

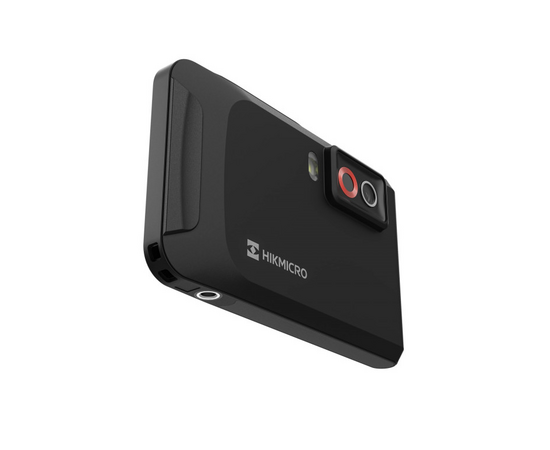

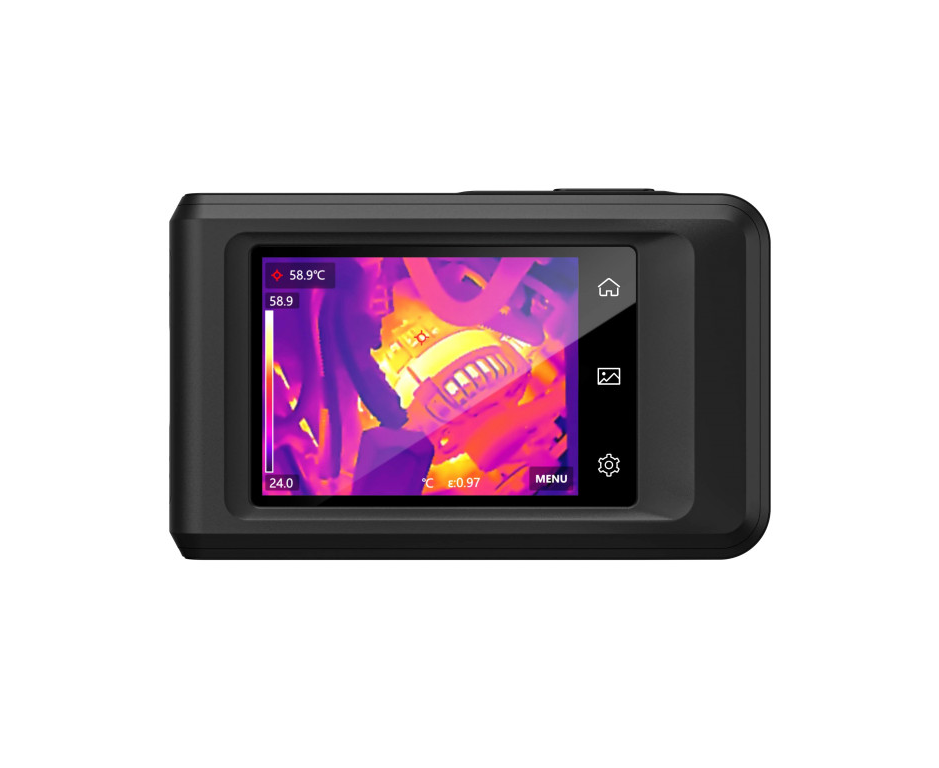

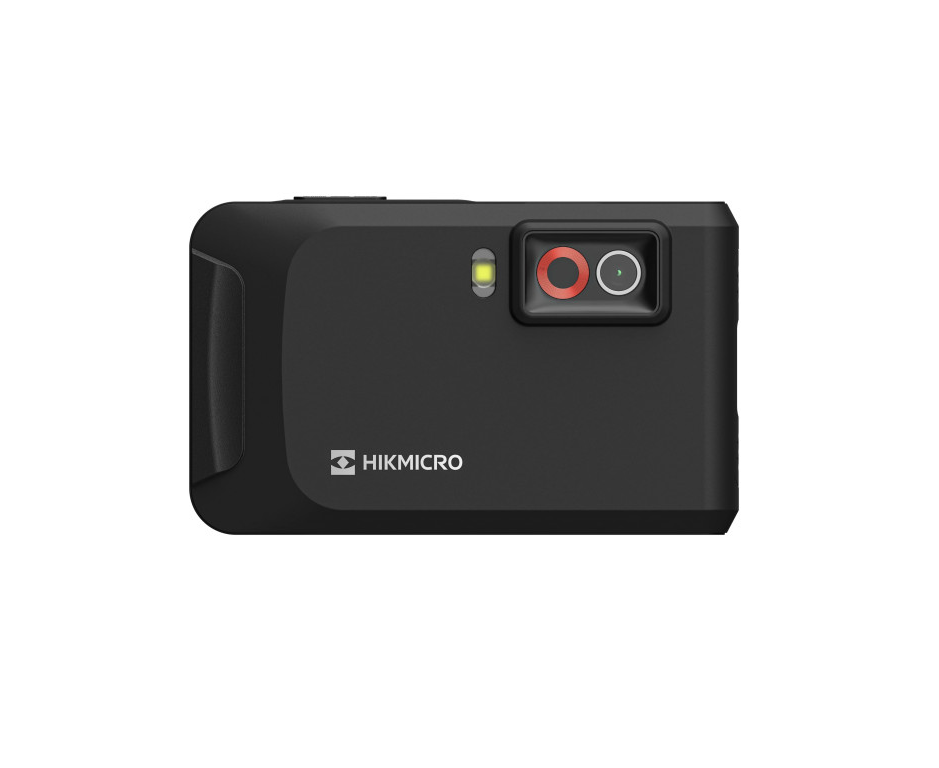

The HIKMICRO W-Pocket2 is a compact, high-performance thermal camera designed for on-the-go diagnostics. Featuring a 256 × 192 high-resolution VOx detector and an 8 MP optical camera, it delivers detailed thermal and visual images to identify hidden issues quickly. The 3.5” LCD touch screen provides a user-friendly interface, making it ideal for building inspections, HVAC maintenance, and electrical diagnostics.
With a temperature measurement range of -20°C to 400°C (-4°F to 752°F) and an NETD of <40 mK, the W-Pocket2 ensures highly accurate temperature detection. It supports thermal, fusion, PIP, and optical modes, offering versatile imaging options. 1-Tap level and span adjustments and a high-temperature alarm help users quickly pinpoint problem areas.
The 25 Hz image frequency delivers smooth, real-time imaging, while Wi-Fi connectivity enables instant image sharing. The built-in 16 GB memory stores thousands of images for future analysis.
Designed to fit in your pocket, this lightweight and portable thermal camera is a powerful tool for professionals. A built-in LED work light ensures visibility in dark areas, while 1.0x to 4.0x digital zoom allows for detailed thermal analysis.
With up to 4 hours of continuous use, the HIKMICRO W-Pocket2 is an essential, portable solution for efficient thermal inspections.
