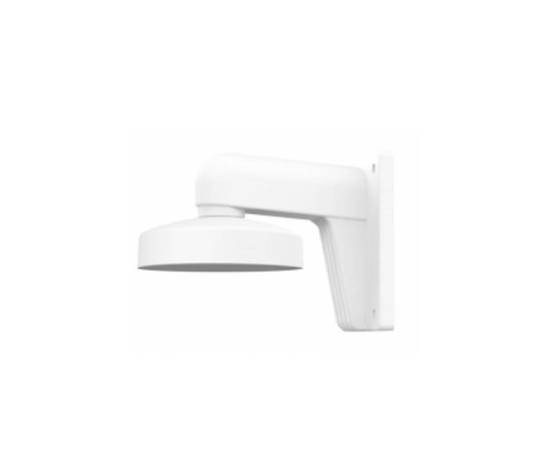

Hikvision DS-1272ZJ-110 (HiLook HIA-B401-110) wall mount
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

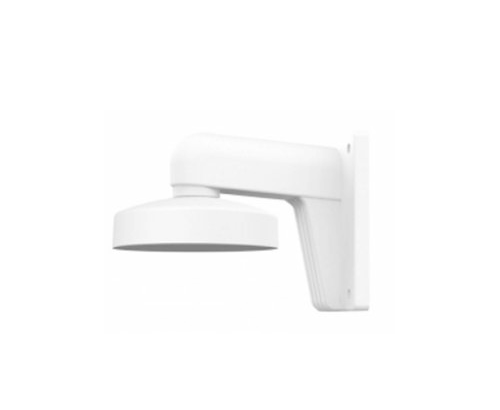

Hikvision DS-1272ZJ-110 Wall Mount Bracket
The Hikvision DS-1272ZJ-110 is a professional wall mounting bracket designed for compatible Hikvision mini dome cameras. It provides a secure and reliable mounting solution for wall-mounted CCTV installations, allowing cameras to be positioned correctly while maintaining a clean and professional appearance.
Constructed from high-quality aluminium alloy with a surface spray treatment, the DS-1272ZJ-110 offers excellent strength, durability, and long-term reliability. Its robust design provides stable support for compatible dome cameras, making it suitable for residential, commercial, and professional surveillance applications.
The bracket features an integrated cable entrance hole to help route and conceal camera wiring, reducing exposed cables and improving the overall installation finish. Its improved waterproof design and convenient cap installation system help simplify camera fitting while providing enhanced protection for suitable outdoor applications.
Key Features:
- Genuine Hikvision wall mounting bracket for mini dome cameras
- Designed for compatible Hikvision dome camera installations
- Durable aluminium alloy construction with surface spray treatment
- Hikvision White finish for a professional appearance
- Integrated cable entry hole for neat cable management
- Improved waterproof design for suitable outdoor installations
- Convenient cap design for easier installation and camera adjustment
- Provides secure and stable camera positioning
- Suitable for residential, commercial, and professional CCTV systems
- Dimensions: 122 × 120 × 169 mm
- Weight: approximately 480 g
- Maximum load capacity: up to 4.5 kg
The Hikvision DS-1272ZJ-110 Wall Mount Bracket is an ideal accessory for installers requiring a dependable mounting solution for mini dome cameras. It improves installation quality by providing secure camera support, better cable protection, and a neat finished appearance for a wide range of surveillance projects.
Please note: The bracket should be installed on a suitable flat wall surface capable of supporting more than three times the combined weight of the camera and mounting accessory. Always confirm compatibility with your specific Hikvision camera model before installation.
