Hikvision DS-1273ZJ-130-TRL wall mount
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

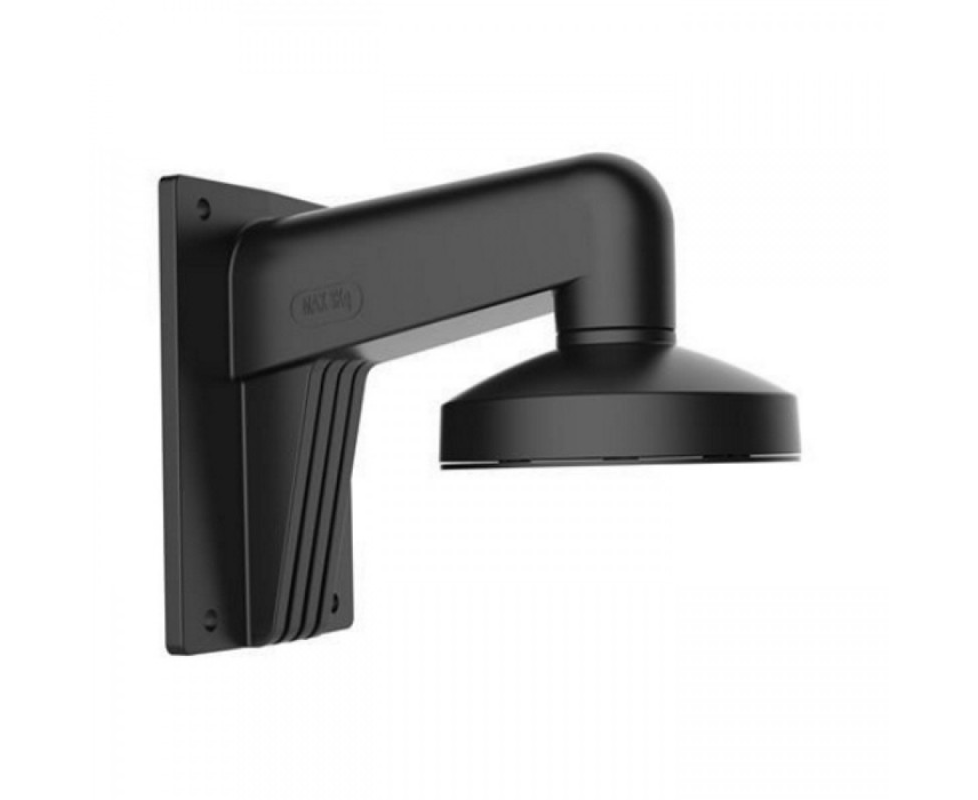

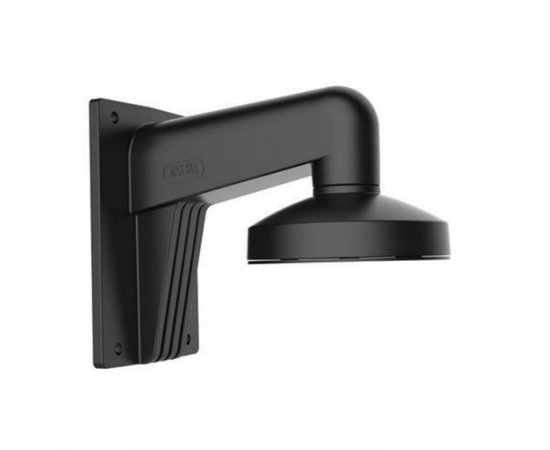

Hikvision DS-1273ZJ-130-TRL Wall Mount Bracket
The Hikvision DS-1273ZJ-130-TRL is a professional wall mounting bracket designed for compatible Hikvision dome cameras. It provides a secure and reliable mounting solution for wall-mounted CCTV installations, allowing cameras to be positioned correctly while maintaining a clean and professional appearance.
Manufactured from high-quality aluminium alloy with a surface spray treatment, the DS-1273ZJ-130-TRL offers excellent strength, durability, and long-term reliability. Its robust construction provides stable support for compatible dome cameras, making it suitable for residential, commercial, and professional surveillance applications.
The bracket includes an adaptor plate to simplify camera installation and improve compatibility with supported dome camera models. It also features an outlet hole for improved cable routing and a better waterproof design, helping installers achieve a cleaner and more secure camera installation.
Key Features:
- Genuine Hikvision wall mounting bracket for dome cameras
- Designed for compatible Hikvision dome camera installations
- Supplied with adaptor plate for easier camera fitting
- Durable aluminium alloy construction with surface spray treatment
- Hikvision White finish for professional installations
- Outlet hole for improved cable management
- Improved waterproof design for suitable outdoor applications
- Convenient installation coordinating with compatible lower bowl designs
- Provides secure and stable camera positioning
- Suitable for residential, commercial, and professional CCTV systems

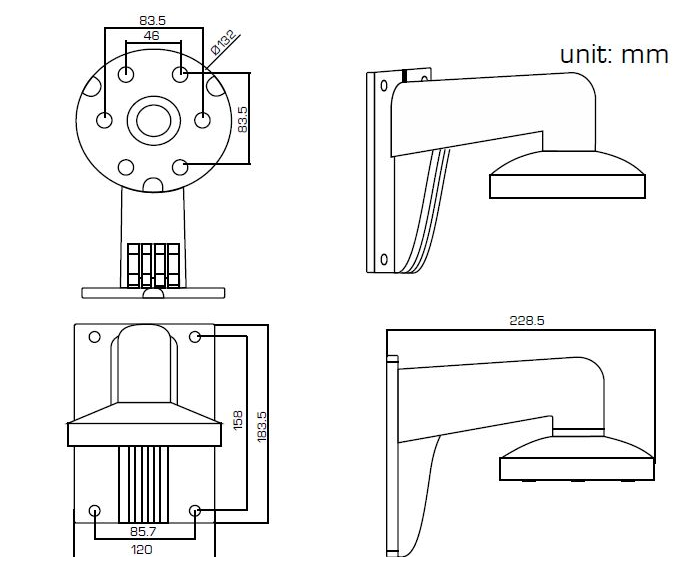

- Dimensions: Ø132 × 183.5 × 288.5 mm
- Weight: approximately 900 g
- Maximum load capacity: up to 3 kg (installation dependent)
The Hikvision DS-1273ZJ-130-TRL Wall Mount Bracket is an ideal accessory for installers requiring a dependable mounting solution for dome cameras. It improves installation quality by providing secure camera support, improved cable management, and a neat finished appearance for a wide range of surveillance projects.
Please note: The bracket should be installed on a suitable flat wall surface capable of supporting more than three times the combined weight of the camera and mounting accessory. For outdoor installations, suitable waterproof sealing should be used to help maintain protection against moisture ingress.
