Hikvision DS-1275ZJ-SUS Pole mount
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

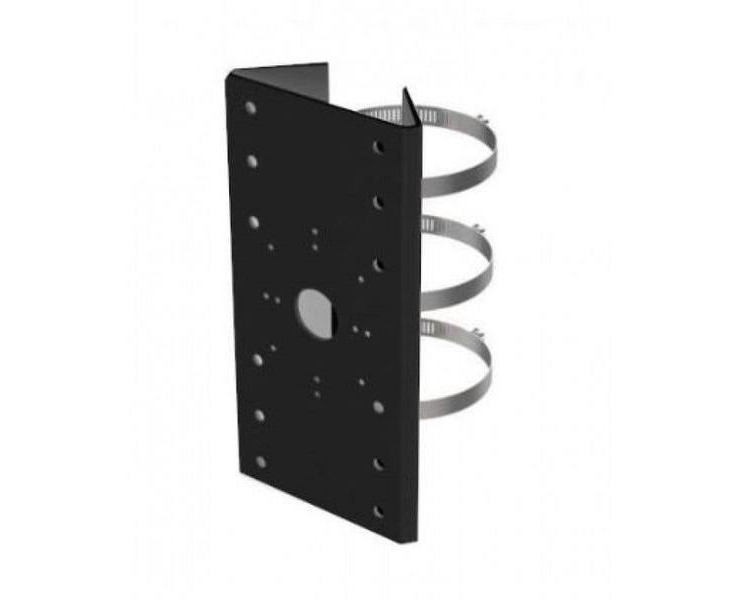

Hikvision DS-1275ZJ-SUS Stainless Steel Pole Mount Bracket
The Hikvision DS-1275ZJ-SUS is a professional horizontal pole mounting bracket designed for use with compatible Hikvision wall and pendant mount brackets. It provides a secure and reliable solution for installing CCTV cameras on vertical poles, making it ideal for locations where wall mounting is not practical. The bracket is intended to be used in conjunction with a compatible Hikvision mounting bracket rather than supporting a camera directly.
Manufactured from one-piece stainless steel with a durable surface spray treatment, the DS-1275ZJ-SUS offers outstanding strength, corrosion resistance, and long-term reliability. Its robust construction ensures a stable mounting platform for professional CCTV installations in both indoor and outdoor environments.
The adjustable clamp design accommodates pole diameters from 67 mm to 127 mm, making it suitable for installation on street lighting columns, utility poles, masts, and industrial structures. Its heavy-duty design and high load capacity make it an excellent choice for commercial, industrial, transport, and perimeter security applications.
Key Features:
- Genuine Hikvision horizontal pole mount bracket
- Designed for use with compatible Hikvision wall and pendant mounting brackets
- Suitable for PTZ, speed dome, bullet, and other compatible Hikvision camera installations
- One-piece stainless steel construction
- Durable surface spray treatment for enhanced corrosion resistance
- Hikvision White finish
- Adjustable pole diameter: 67 mm to 127 mm
- Strong and secure clamping system
- Suitable for indoor and outdoor installations
- Dimensions: 127 × 46 × 250 mm
- Weight: approximately 1.5 kg
- Maximum load capacity: 10 kg
The Hikvision DS-1275ZJ-SUS Stainless Steel Pole Mount Bracket is an ideal accessory for installers requiring a durable and dependable pole mounting solution for professional CCTV systems. Its corrosion-resistant construction, adjustable fit, and robust design make it well suited to commercial buildings, industrial facilities, transport infrastructure, and perimeter security installations.
Please note: This pole mount is designed to be used with a compatible Hikvision wall or pendant mounting bracket and is not intended to support a camera directly. For outdoor installations, waterproof rubber or suitable sealing should be used to protect cable entries from moisture ingress. The supporting pole should be capable of supporting at least three times the combined weight of the camera, mounting bracket, and pole mount.
