Hikvision DS-1280ZJ-PT6 Junction Box for Mini PTZ
These products can only be purchased by trade installers as per manufacturers guidelines - if you are an installer you can sign up and request pricing HERE - (selecting trade account type)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

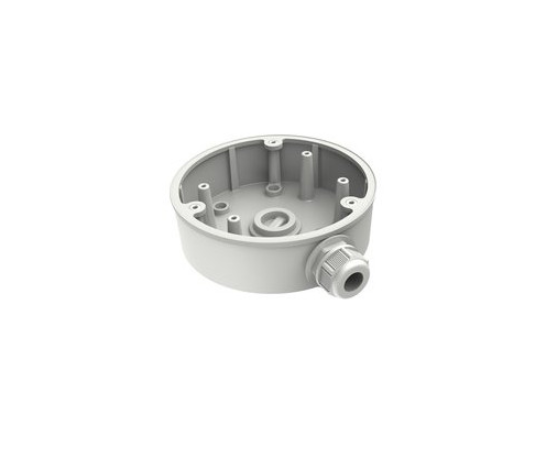

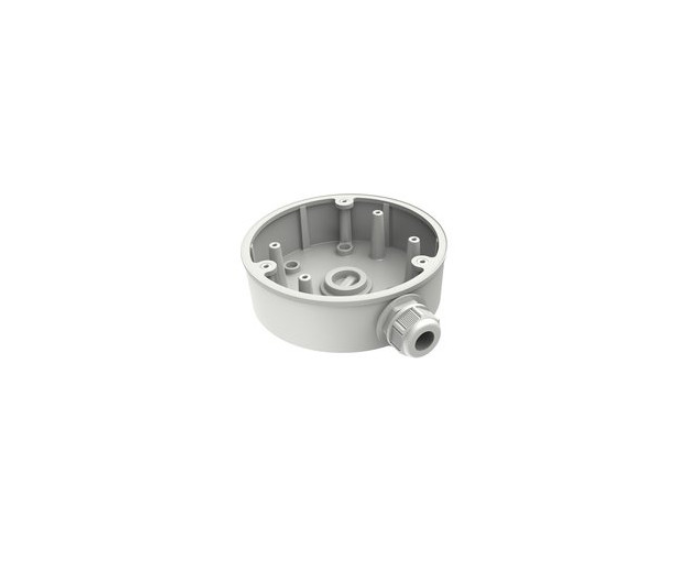

Hikvision DS-1280ZJ-PT6 Junction Box for Mini PTZ Cameras
The Hikvision DS-1280ZJ-PT6 is a dedicated junction box designed for compatible Hikvision Mini PTZ and dome camera installations. It provides a secure mounting platform while allowing installers to neatly conceal and protect cable connections, creating a clean, professional, and reliable CCTV installation.
Manufactured from high-quality aluminium alloy with a surface spray treatment, the DS-1280ZJ-PT6 offers excellent durability and long-term reliability. Its robust design provides additional space for managing camera cables and connectors, helping protect power and network connections while reducing visible wiring for a tidy installation finish.
Designed for wall-mounted Mini PTZ camera applications, this junction box features flexible cable routing options with side and bottom cable entry points. The interchangeable waterproof cover and side gland nut help improve installation flexibility and provide enhanced protection against environmental exposure when correctly installed.
Key Features:
- Genuine Hikvision junction box for compatible Mini PTZ and dome cameras
- Designed for Hikvision Mini PTZ camera installations
- Durable aluminium alloy construction with surface spray treatment
- Hikvision White finish for a professional appearance
- Side and bottom cable entry options for flexible installation
- Interchangeable bottom waterproof cover and side gland nut
- Helps conceal and protect network and power cable connections
- Provides secure camera mounting and improved cable management
- Suitable for indoor and outdoor CCTV applications
- Dimensions: Ø137 × 42 mm
- Weight: approximately 280 g
- Maximum load capacity: approximately 4.5 kg (installation dependent)
The Hikvision DS-1280ZJ-PT6 Junction Box is an ideal accessory for installers requiring a reliable mounting solution for Mini PTZ cameras. It improves installation quality by providing secure camera support, enhanced cable protection, and a neat finished appearance suitable for residential, commercial, and professional surveillance systems.
Please note: The junction box should be installed on a suitable flat surface capable of supporting the combined weight of the camera and mounting accessories. For outdoor installations, appropriate waterproof sealing should be used to maintain protection against moisture ingress.
