Hikvision DS-1473ZJ-135 BLACK wall mount for 2Hxx series cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240 (Inc VAT)
- Premium Services Available and Worldwide
- View all details here
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

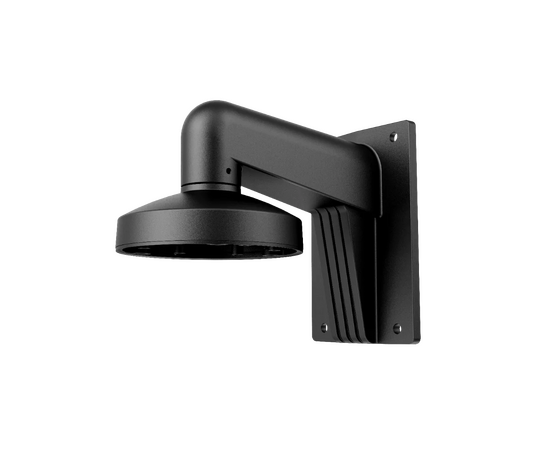

Hikvision DS-1473ZJ-135 BLACK Wall Mount for 2Hxx Series Cameras
The Hikvision DS-1473ZJ-135 BLACK is a professional wall mounting bracket designed for compatible Hikvision 2Hxx series turret and fixed dome-style IP cameras. It provides a secure and reliable mounting solution, allowing cameras to be positioned away from the wall for improved viewing angles while maintaining a neat and professional installation appearance.
Manufactured from high-quality aluminium alloy with a durable surface spray treatment, the DS-1473ZJ-135 BLACK offers excellent strength, corrosion resistance, and long-term reliability. Its black finish makes it suitable for installations where a discreet or colour-matched camera mounting solution is preferred, including commercial, retail, industrial, and architectural applications.
The bracket features a cable hole design to simplify cable routing and a cap design that helps make installation easier while providing a clean finished appearance. It is suitable for use with selected Hikvision 2Hxx series cameras and compatible models requiring a wall-mounted installation solution.
Key Features:
- Genuine Hikvision black wall mount bracket
- Designed for selected Hikvision 2Hxx series cameras
- Suitable for compatible turret and IP camera installations
- Aluminium alloy construction with surface spray treatment
- Hikvision Black finish
- Cable hole design for easier cable management
- Cap design for simplified installation
- Secure and stable wall-mounted camera positioning
- Suitable for indoor and outdoor CCTV applications
- Dimensions: Ø136 × 183.5 × 230 mm
- Weight: approximately 704 g
- Maximum load capacity: 3 kg
The Hikvision DS-1473ZJ-135 BLACK Wall Mount is an ideal accessory for installers requiring a reliable and discreet mounting solution for Hikvision IP cameras. Its lightweight aluminium construction, professional black finish, and practical cable management design make it suitable for a wide range of surveillance installations.
Please note: The bracket should be installed on a flat, structurally suitable surface capable of supporting at least three times the combined weight of the camera and mount. For outdoor installations, appropriate waterproof sealing should be used to help protect cable connections from moisture ingress.
